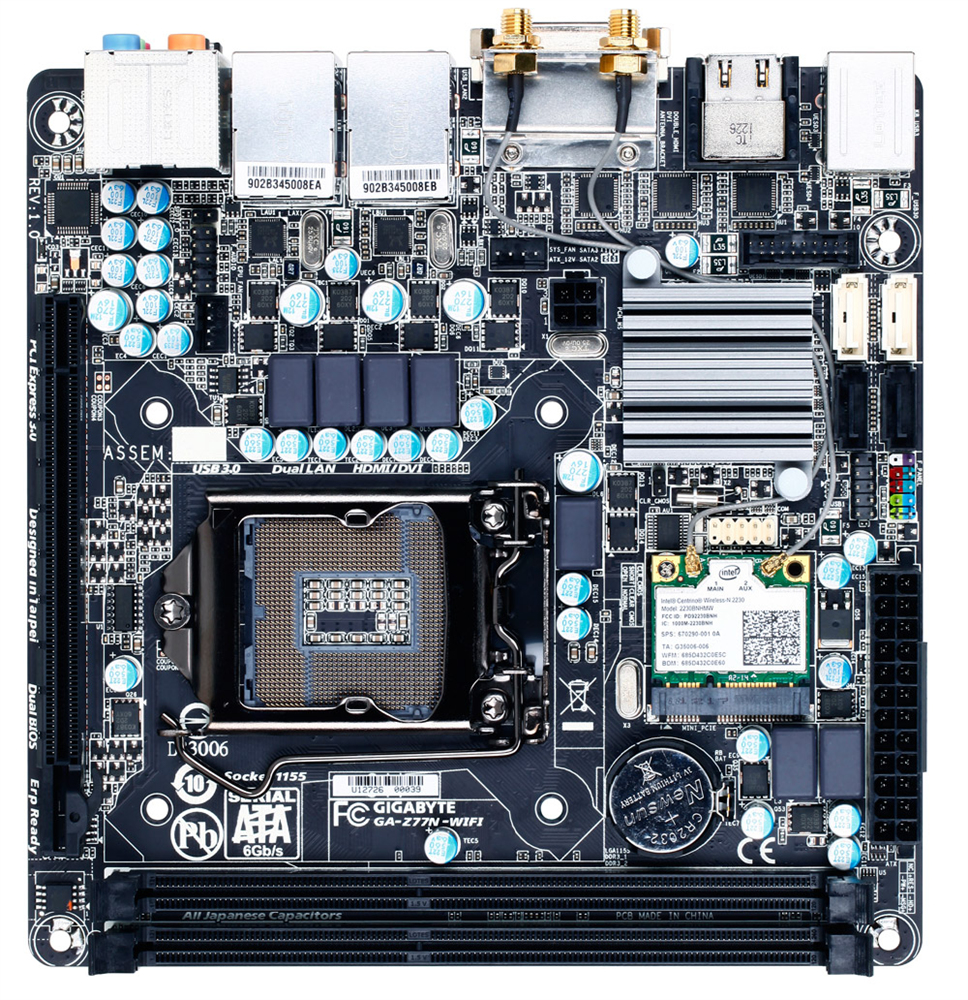

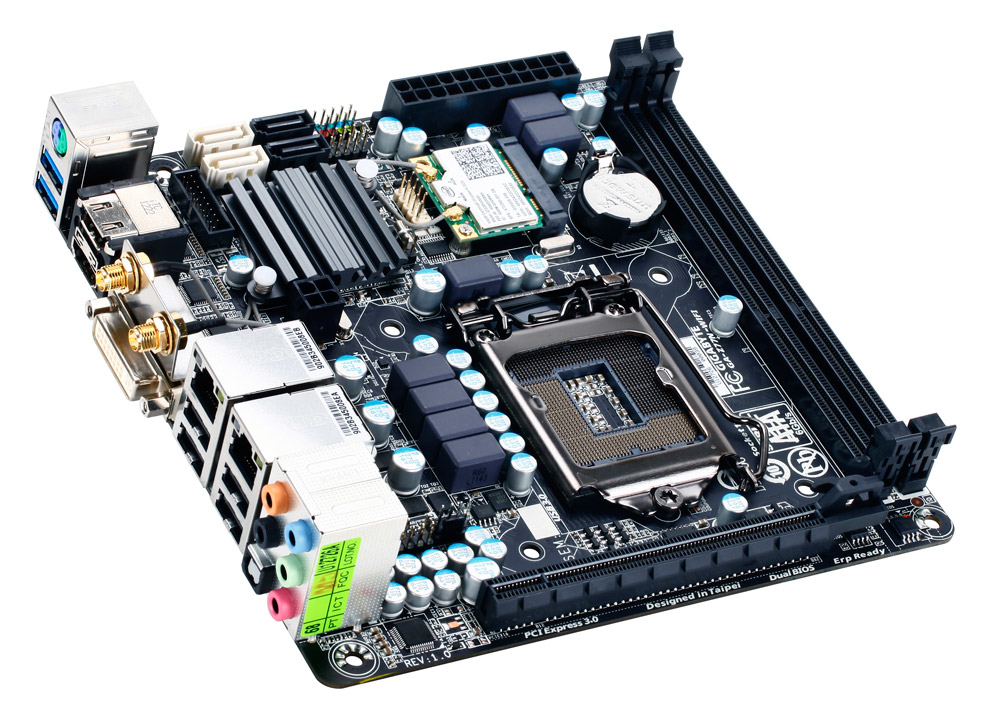

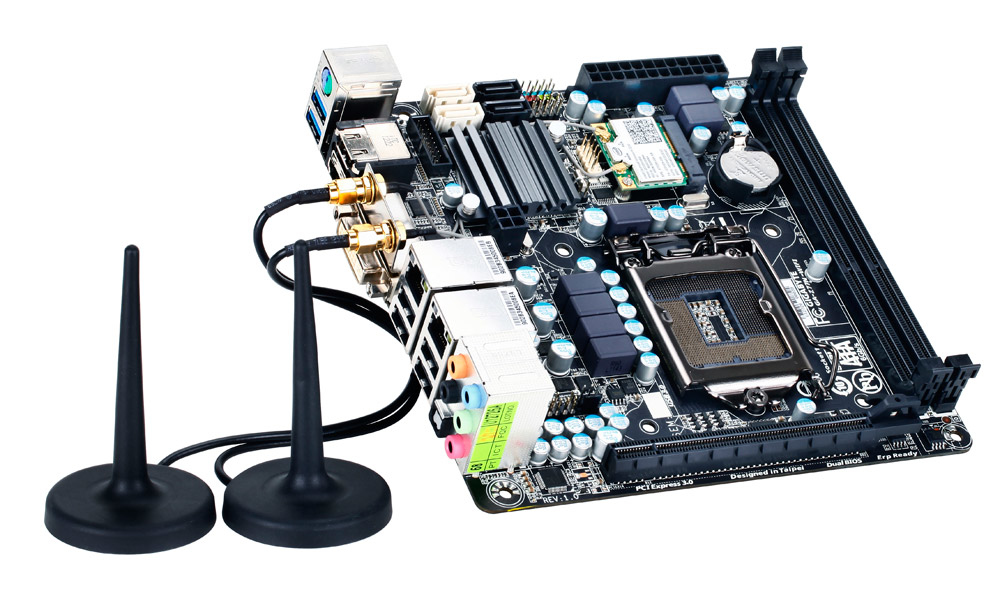

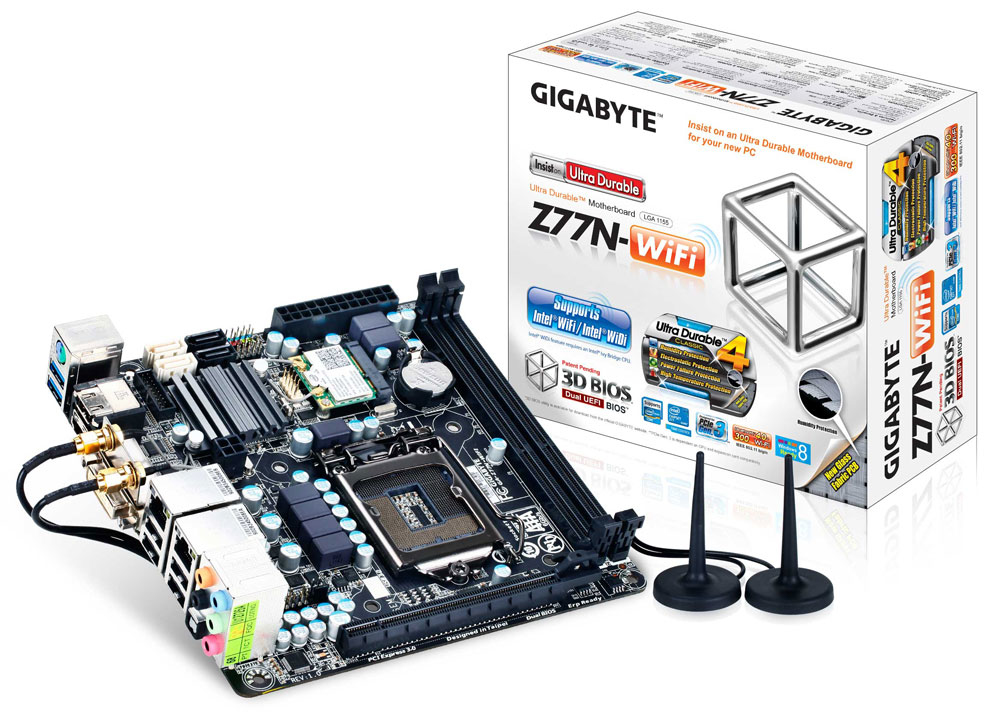

GIGABYTE GA-Z77N-WIFI (rev. 1.0)
Model GA-Z77N-WIFI (rev. 1.0)Part no. GA-Z77N-WIFIEAN 163120482634
50 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z77N-WIFI (rev. 1.0)
- Part number
- GA-Z77N-WIFI
- EAN / UPC
- 163120482634, 818313015624, 4719331835200, 8183130156242
- Also known as
- GIGABYTE GA-Z77N-WIFI (rev. 1.0) Intel Z77 LGA 1155 (Socket H2) mini ATX
Specifications
50 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Serial port headers | 1 |

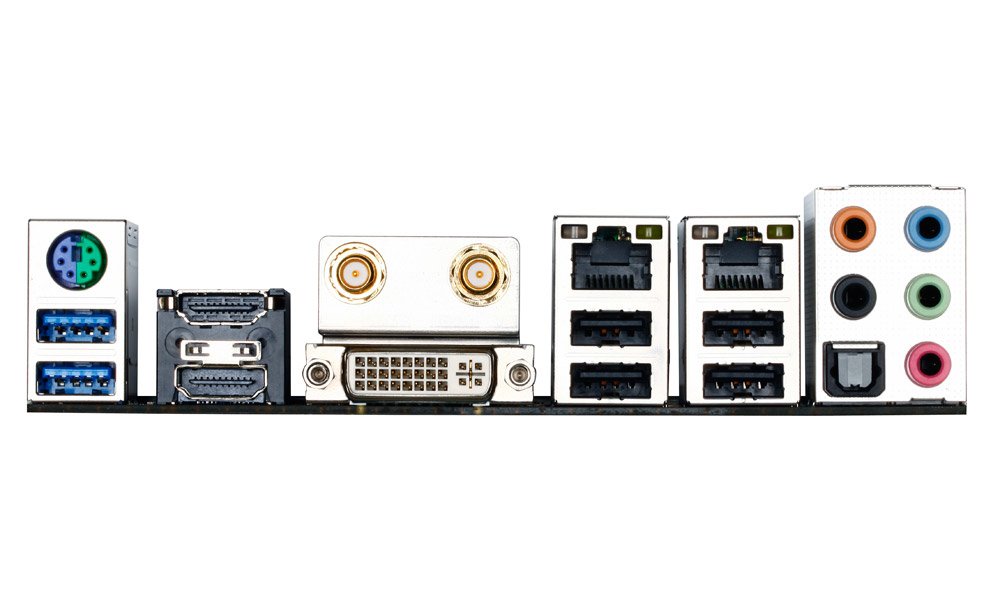

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Networking features | Gigabit Ethernet, WLAN |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z77 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 8/7/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology |
What people say
Reviews & ratings
GIGABYTE GA-Z77N-WIFI (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-Z77N-WIFI (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Z77N-WIFI (rev. 1.0)
All motherboard comparisons- GIGABYTE GA-Z77N-WIFI (rev. 1.0) vsGIGABYTE GA-H77N-WIFI (rev. 1.0)Compare specs

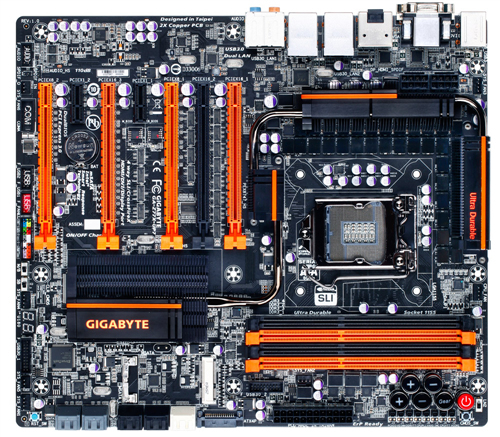

- GIGABYTE GA-Z77N-WIFI (rev. 1.0) vsGIGABYTE GA-Z77X-UP7 (rev. 1.0)Compare specs

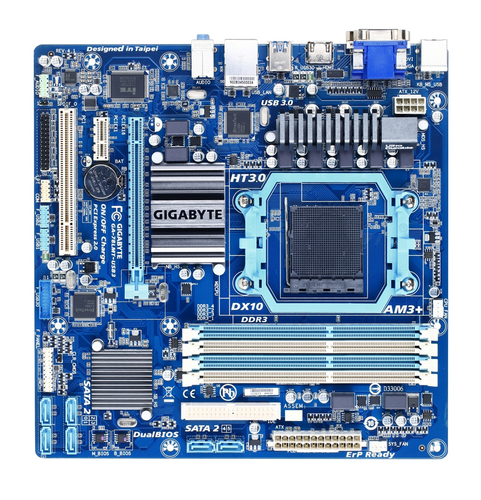

- GIGABYTE GA-Z77N-WIFI (rev. 1.0) vsGIGABYTE GA-78LMT-USB3 (rev. 4.1)Compare specs

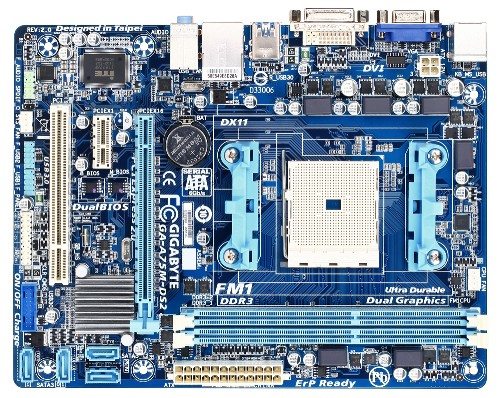

- GIGABYTE GA-Z77N-WIFI (rev. 1.0) vsGIGABYTE GA-A75M-DS2 (rev. 2.0)Compare specs
