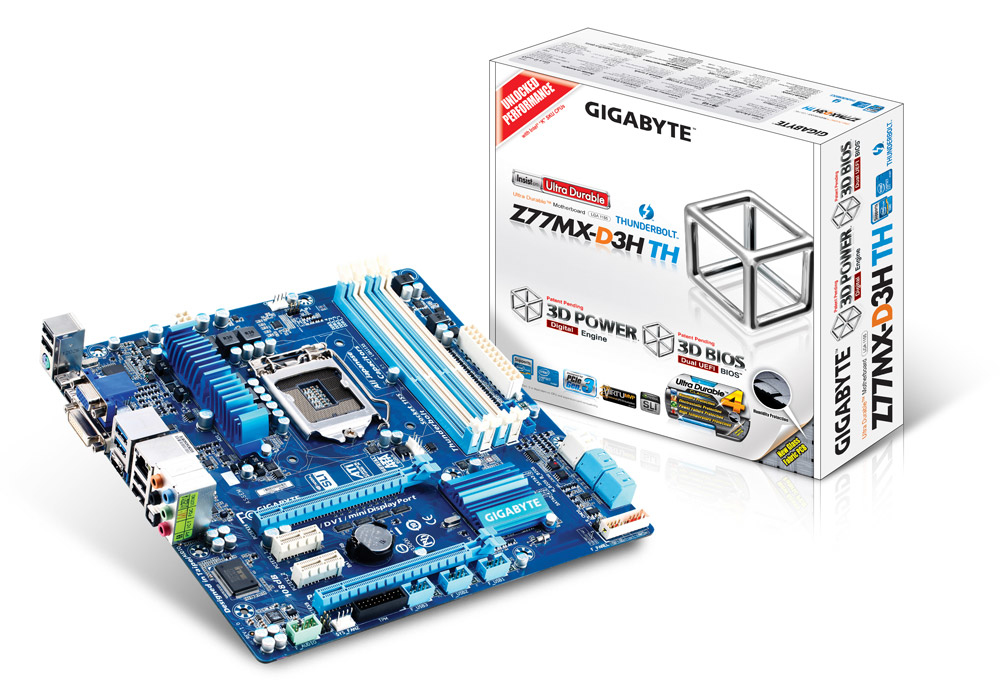

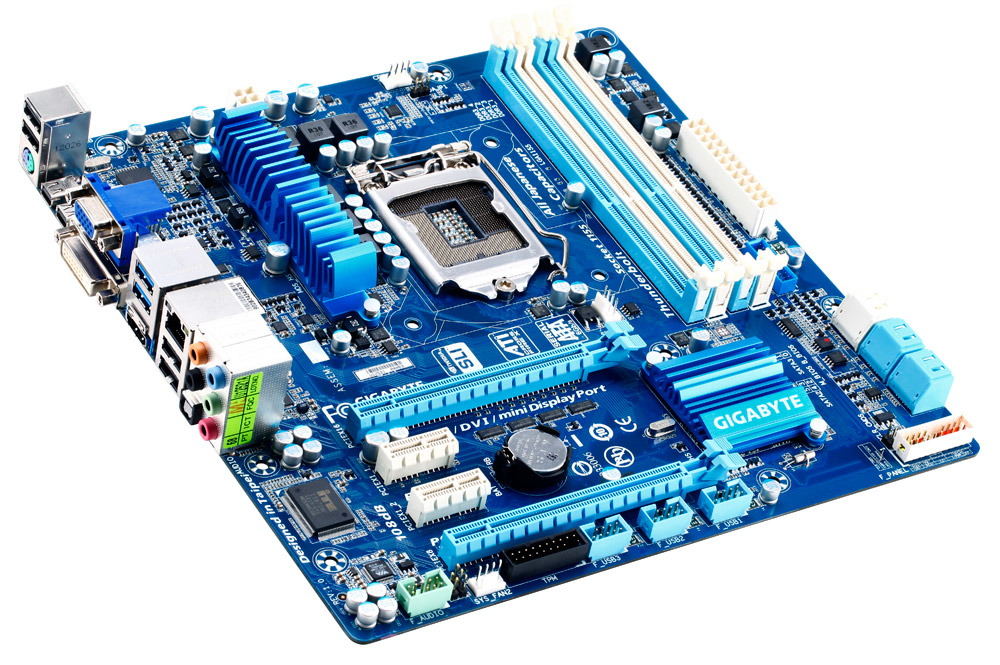

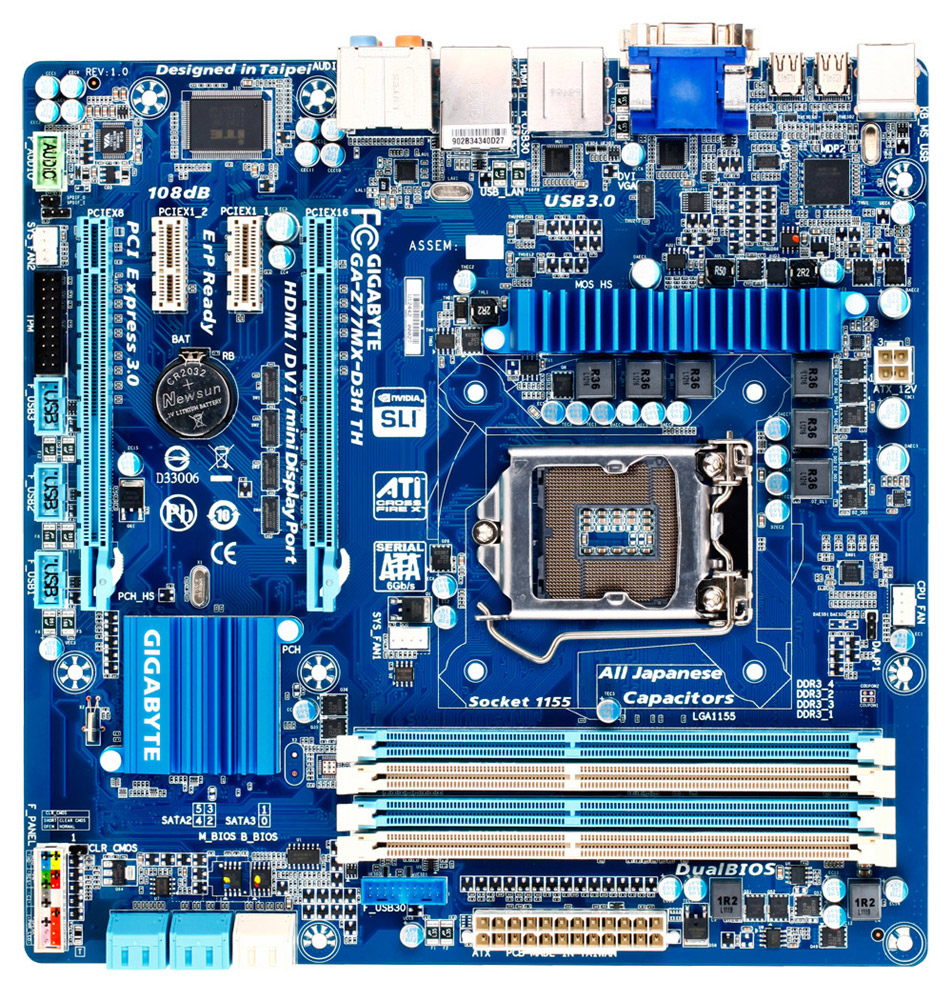

GIGABYTE GA-Z77MX-D3H TH

GIGABYTE GA-Z77MX-D3H TH

Model GA-Z77MX-D3H THEAN 4719331826185

49 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Parallel processing technology support2-Way SLI
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Parallel processing technology support
2-Way SLI
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
GIGABYTE
Category
Motherboard
Model
GA-Z77MX-D3H TH
Part number
GA-Z77MX-D3H TH
EAN / UPC
4719331826185
Also known as
GIGABYTE GA-Z77MX-D3H TH motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX

Specifications

49 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Parallel processing technology support2-Way SLI
On-board graphics cardYes

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors2
Number of SATA II connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2

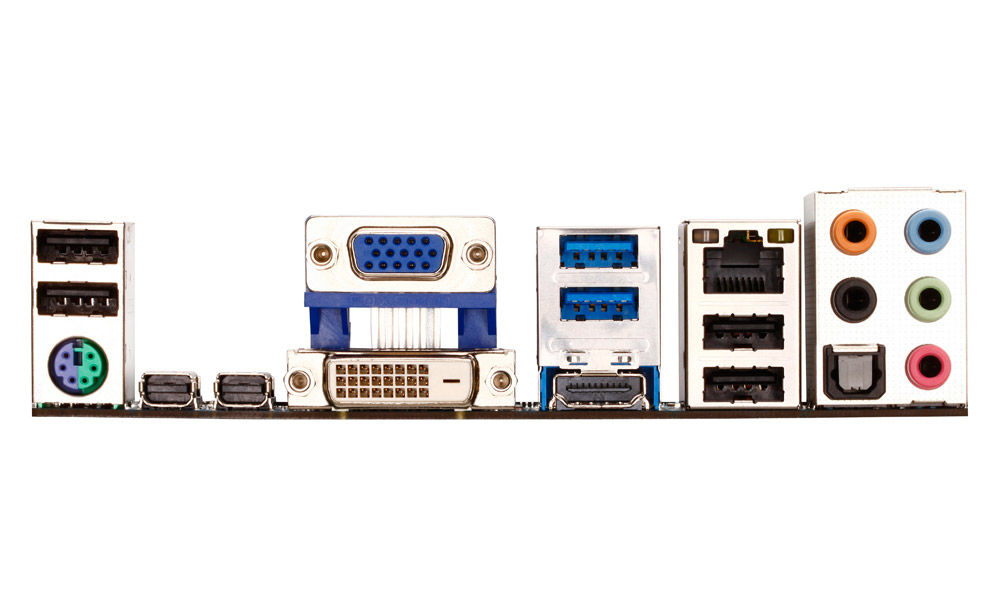

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Digital audio optical out1
Thunderbolt ports quantity2

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z77
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2

BIOS

BIOS typeUEFI
ACPI version2.0a

Weight & dimensions

Width244 mm
Depth244 mm

Other features

S/PDIF in connectorYes
