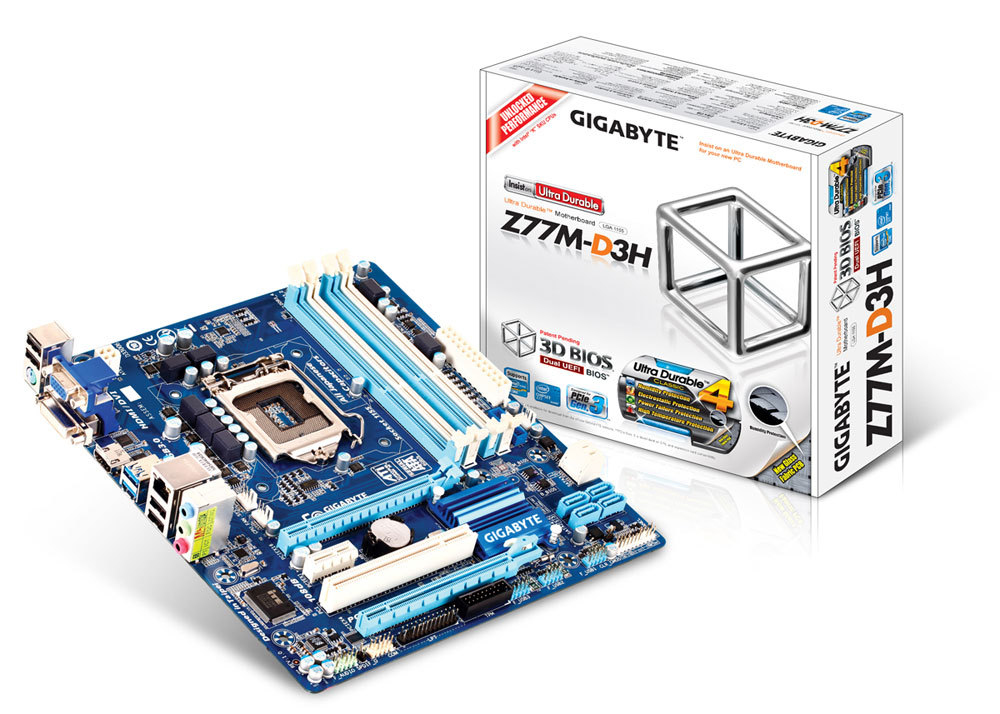

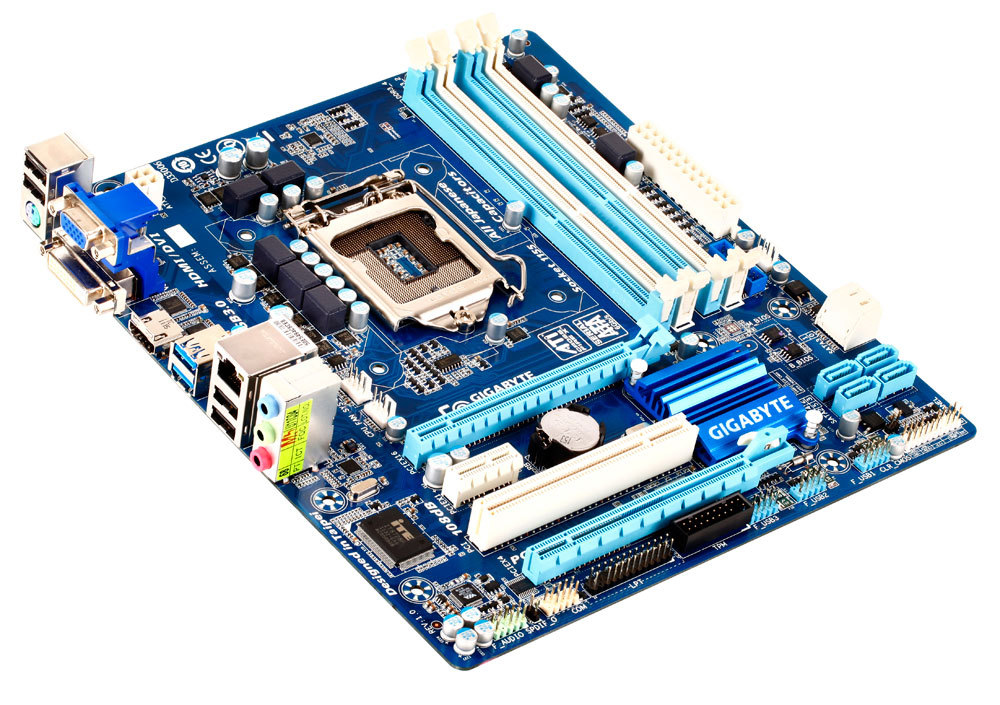

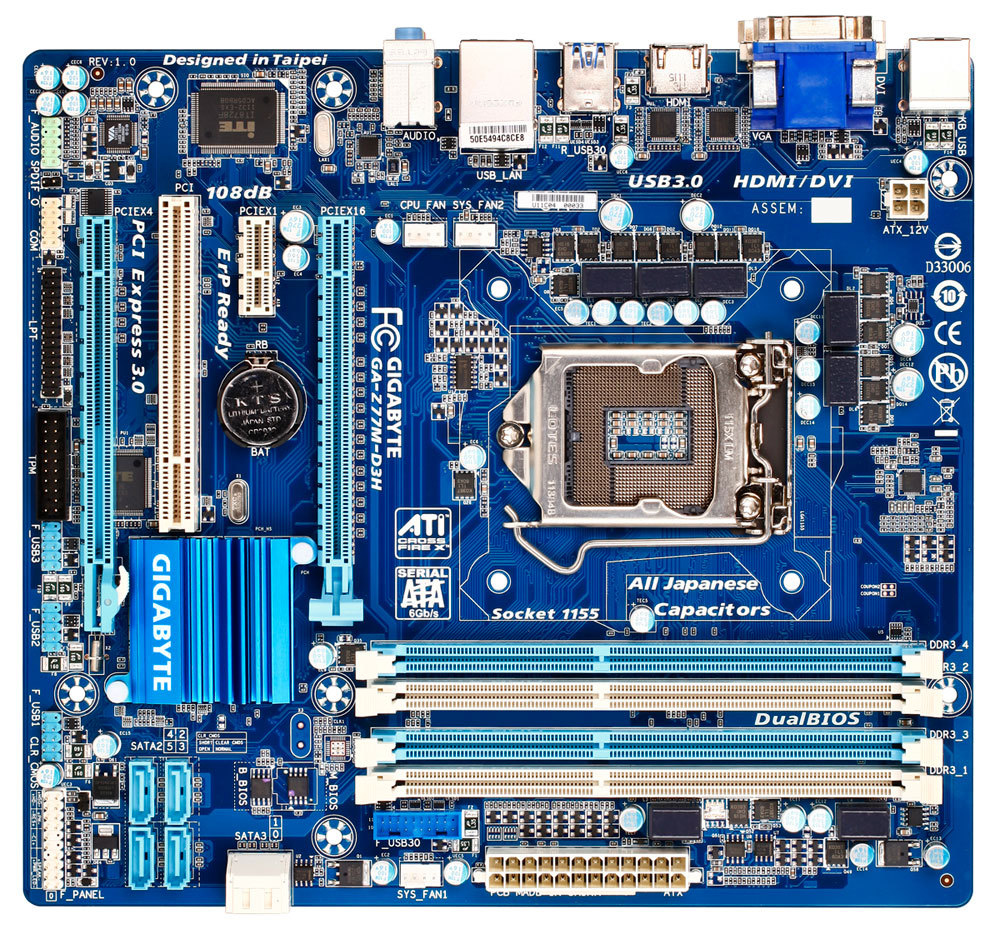

GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX
Model GA-Z77M-D3HEAN 230494858430
85 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- Maximum graphics card memory1696 MB
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- Maximum graphics card memory
- 1696 MB
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z77M-D3H
- Part number
- GA-Z77M-D3H
- EAN / UPC
- 230494858430, 818313014429, 4719331805166
- Also known as
- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX
Specifications
85 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
| System bus rate | 5 GT/s |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 16GB, 1GB, 2GB, 4GB, 8GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1696 MB |
| Parallel processing technology support | 2-Way CrossFireX |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Graphics card | HD Graphics |
| HDCP | Yes |
| OpenGL version | 3.2 |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

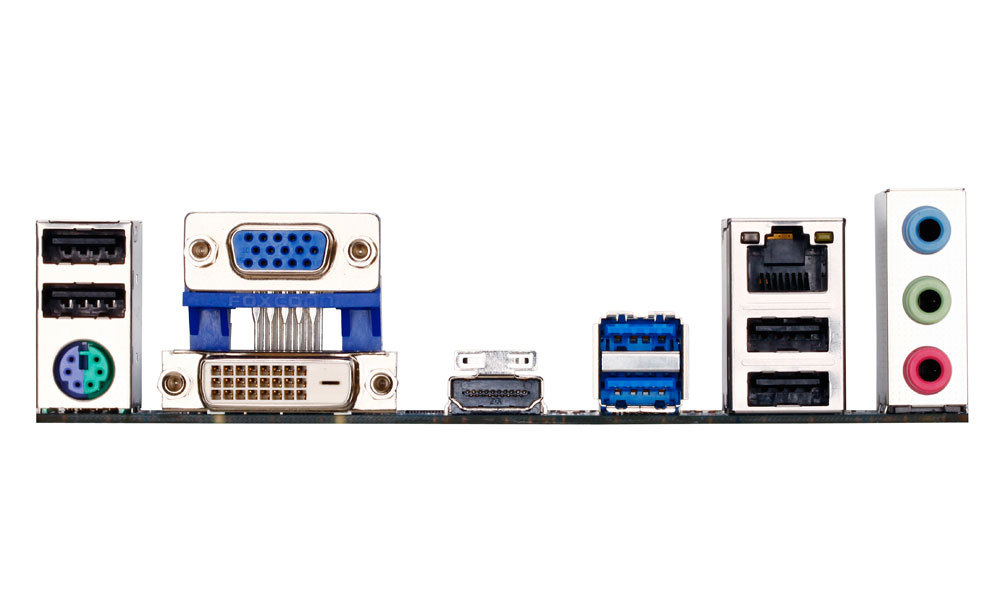

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| Bluetooth | No |
| Networking features | 10/100/1000 Mbit/sec |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z77 |
| Audio chip | VIA VT2021 |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature |
| Cooling type | Passive |
| Power source type | ATX |
| Compatible operating systems | Windows 7/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI Express configurations | 1x16+1x4 |
| PCI Express slots version | 2.0, 3.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Processor with Intel Graphics Technology required | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 220 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Dual Link DVI | Yes |
| Controller interface type | Intel Z77 |
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX
All motherboard comparisons- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-B75M-D3H Rev. 1.0Compare specs
- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-B75M-D3V motherboard Intel B75 LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-970A-DS3 motherboard AMD 970 Socket AM3+ ATXCompare specs
- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX vsGIGABYTE GA-H61M-DS2V motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

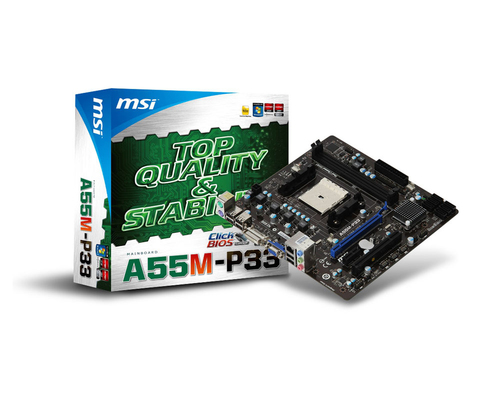

- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX vsMSI A55M-P33 motherboard AMD A55 Socket FM1 micro ATXCompare specs

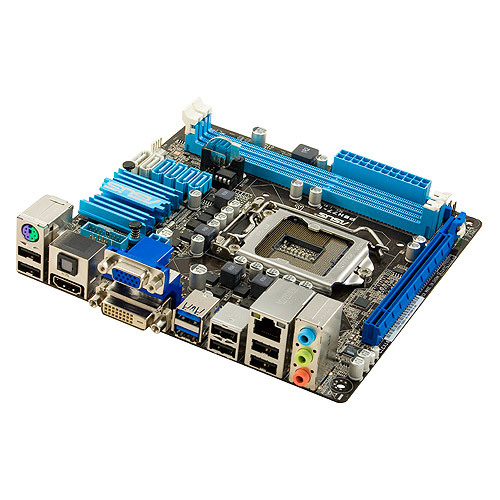

- GIGABYTE GA-Z77M-D3H motherboard Intel Z77 LGA 1155 (Socket H2) micro ATX vsASUS P8H77-I Intel H77 LGA 1155 (Socket H2) mini ITXCompare specs
