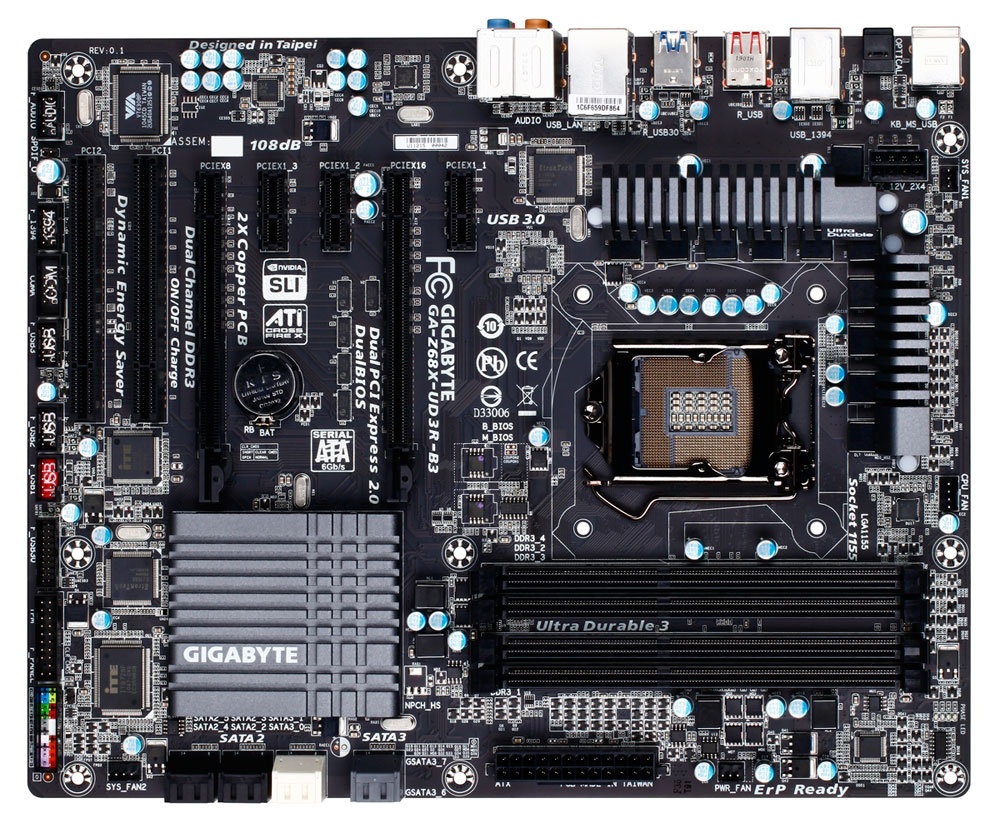

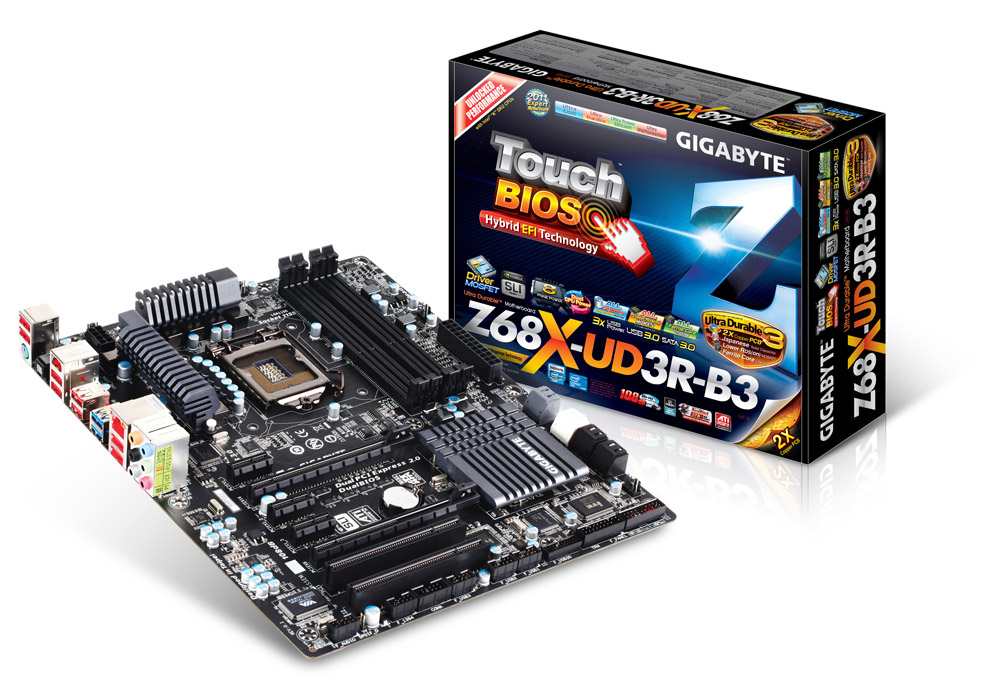

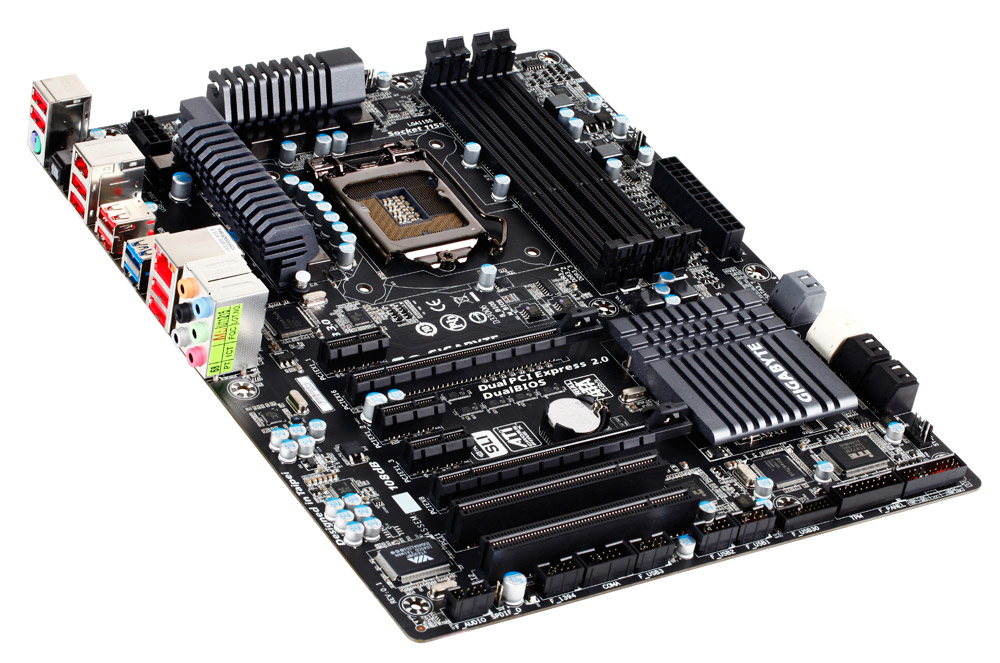

GIGABYTE GA-Z68X-UD3R-B3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

GIGABYTE GA-Z68X-UD3R-B3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Model GA-Z68X-UD3R-B3

59 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
On-board graphics card
No
USB 2.0 connectors
3
USB 2.0 ports quantity
8
Brand
GIGABYTE
Category
Motherboard
Model
GA-Z68X-UD3R-B3
Part number
GA-Z68X-UD3R-B3
Also known as
GIGABYTE GA-Z68X-UD3R-B3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

59 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors4
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1
TPM connectorYes

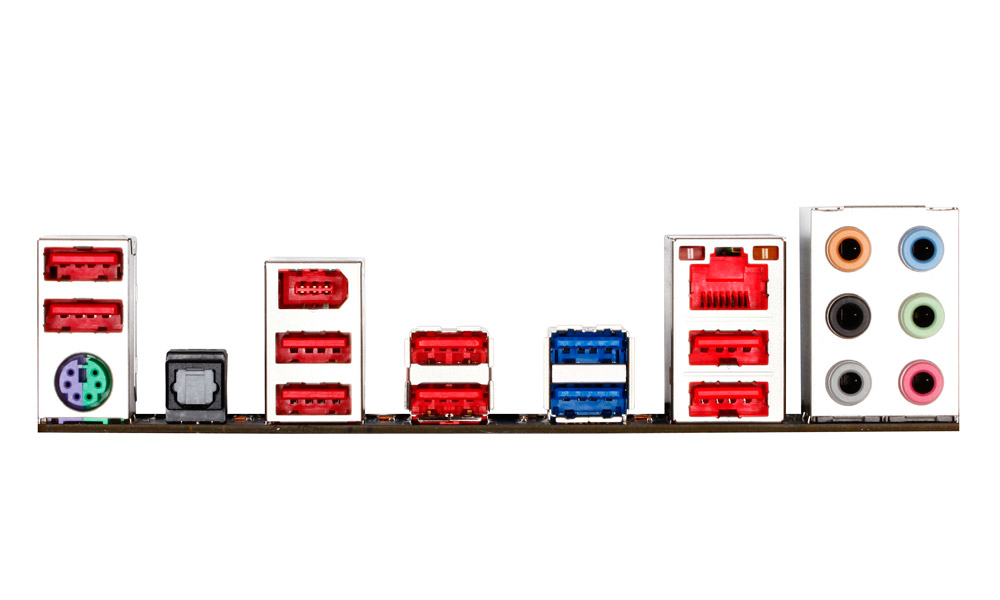

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel Z68
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/Vista/XP

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeAWARD
BIOS memory size64 Mbit
ACPI version1.0b

Weight & dimensions

Width305 mm
Depth244 mm

Packaging content

Bundled softwareNorton Internet Security

Other features

Controller 2nd interface typeSATA 3Gb/s
Controller interface typeSATA 6Gb/s
