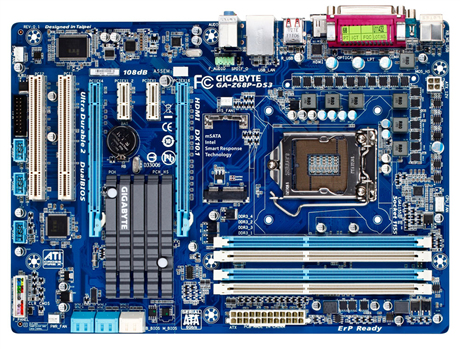

GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Model GA-Z68P-DS3EAN 818313013101

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • Parallel processing technology supportQuad-GPU CrossFireX
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
Parallel processing technology support
Quad-GPU CrossFireX
USB 2.0 connectors
3
USB 2.0 ports quantity
6
Brand
GIGABYTE
Category
Motherboard
Model
GA-Z68P-DS3
Part numbers
GA-Z68P-DS3, GA-Z68P-DS3-R1
EAN / UPC
818313013101, 4719331822200
Also known as
GIGABYTE GA-Z68P-DS3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX

Specifications

51 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds1300,1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportQuad-GPU CrossFireX

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors2
Number of SATA II connectors4
S/PDIF out connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
TPM connectorYes

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
HDMI ports quantity1
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E
Networking features10/100/1000 Mbps

Features

Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z68
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7, Vista, XP

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeAWARD
ACPI version1.0b

Weight & dimensions

Width305 mm
Depth215 mm
