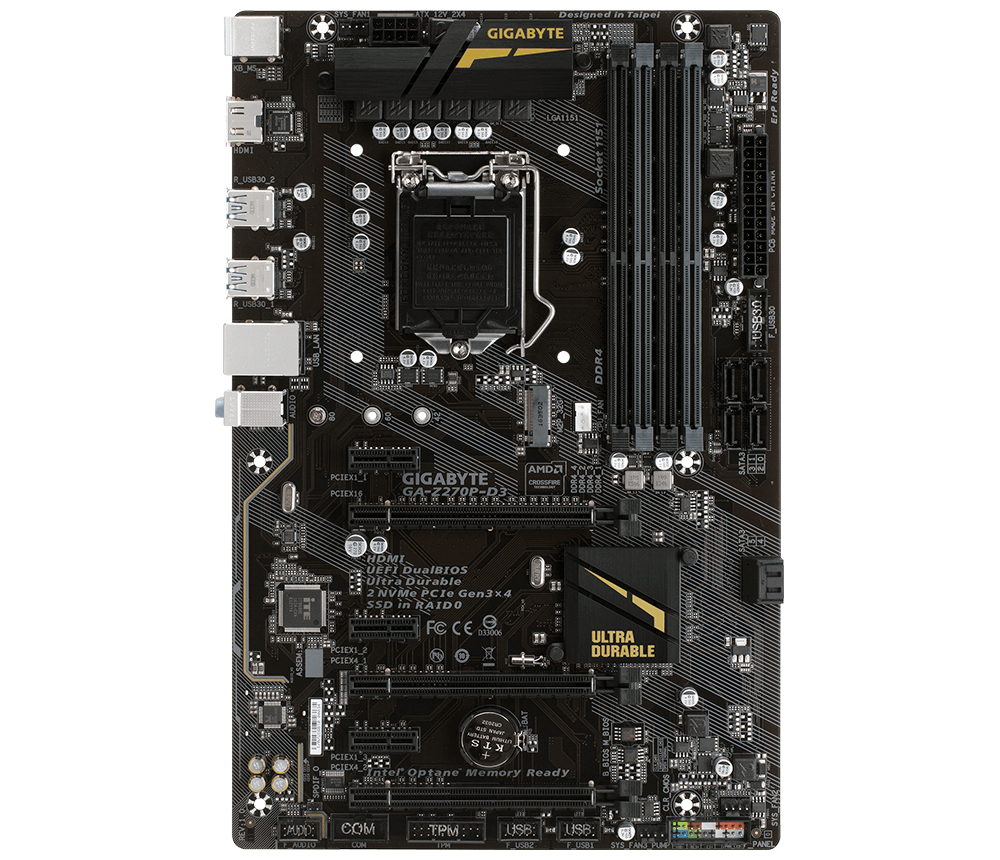

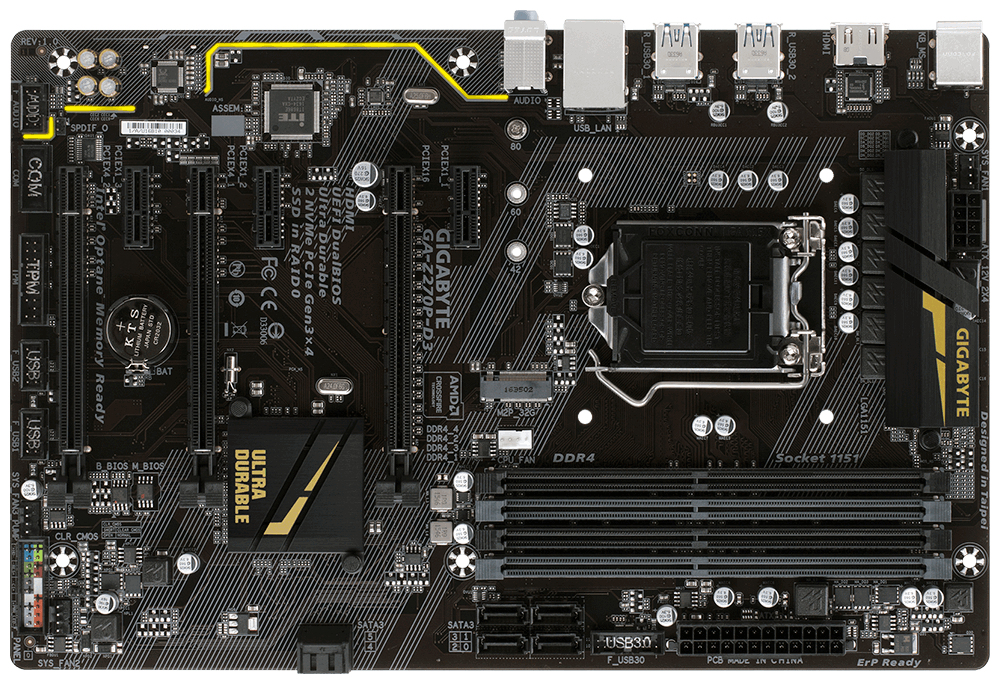

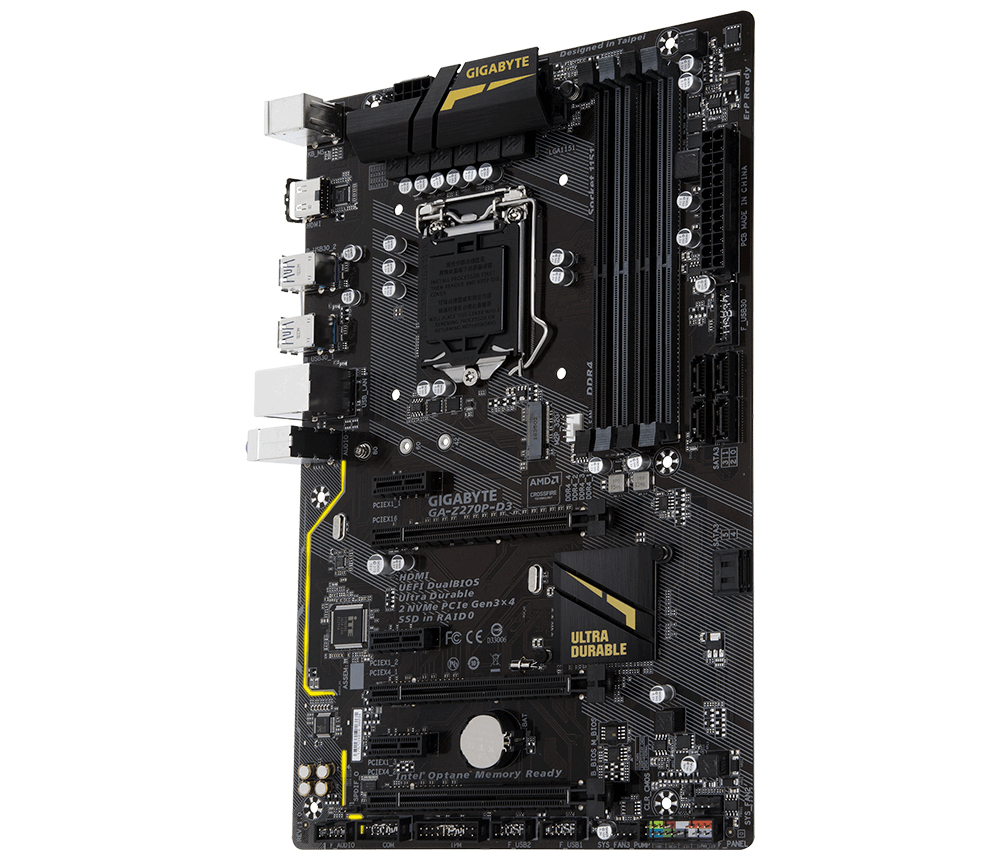

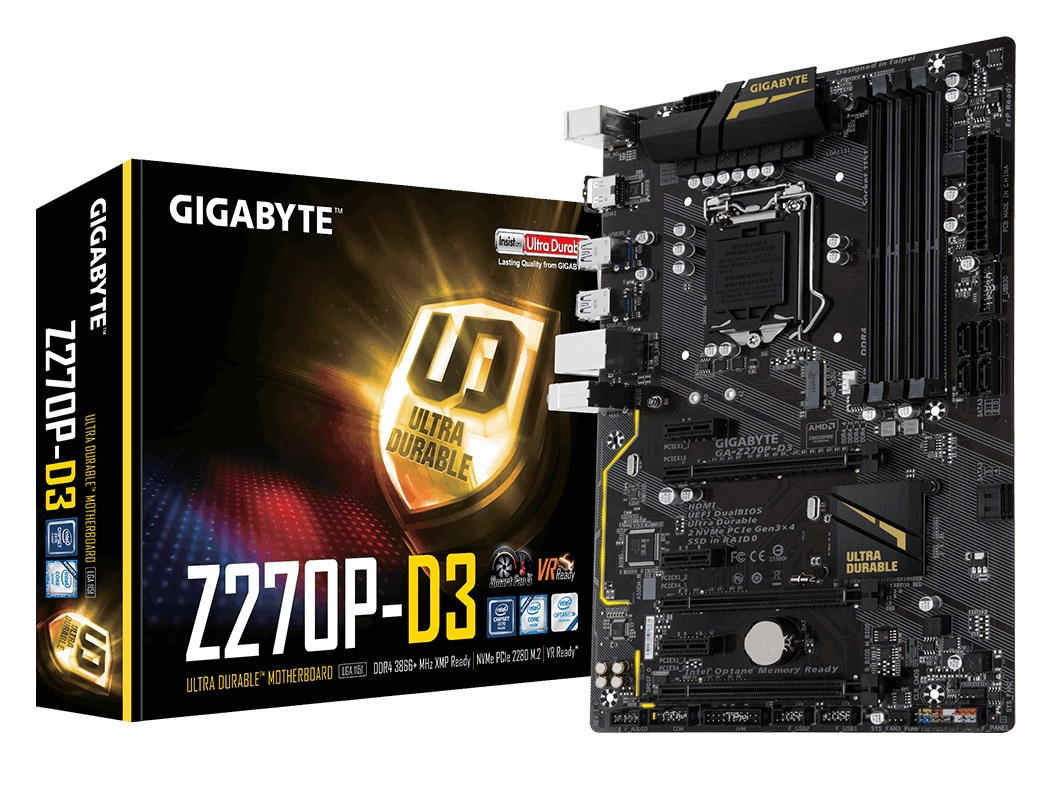

GIGABYTE GA-Z270P-D3 motherboard Intel® Z270 ATX
Model GA-Z270P-D3EAN 889523008430
53 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2
- Maximum graphics card memory1024 MB
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2
- Maximum graphics card memory
- 1024 MB
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Z270P-D3
- Part number
- GA-Z270P-D3
- EAN / UPC
- 889523008430, 4719331847296
- Also known as
- GIGABYTE GA-Z270P-D3 motherboard Intel® Z270 ATX
Specifications
53 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 1024 MB |
| Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
| On-board graphics card | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 6 |
| Total number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |

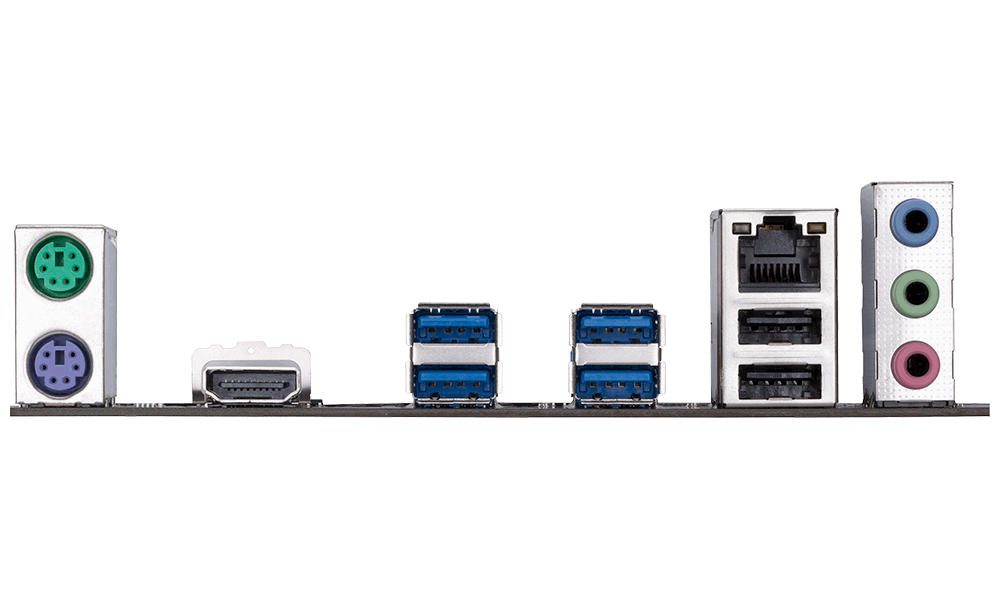

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Z270 |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 H |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Intel® Optane™ Memory Ready | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 199 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security Intel Optane Memory Ready cFosSpeed |
