GIGABYTE GA-Z170X-Gaming 5-EU

GIGABYTE GA-Z170X-Gaming 5-EU

Model GA-Z170X-Gaming 5-EUPart no. GA-Z170X-GAMING 5-EUEAN 889523001493

54 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-Z170X-Gaming 5-EU
Part numbers
GA-Z170X-GAMING 5-EU, GA-Z170X-Gaming 5-EU-R1
EAN / UPC
889523001493, 4719331829377
Also known as
GIGABYTE GA-Z170X-Gaming 5-EU Intel® Z170 LGA 1151 (Socket H4) ATX

Specifications

54 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Memory slots typeDIMM
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesM.2, SATA III

Graphics

Parallel processing technology support2-Way CrossFireX, 3-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors3
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

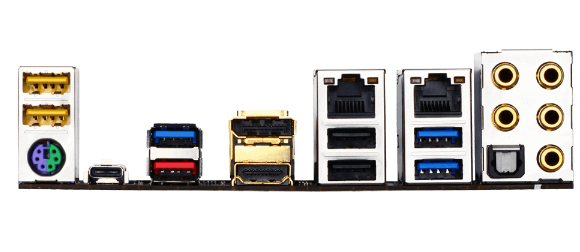

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
DVI-D ports quantity0
DisplayPorts quantity1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Cooling typeActive
Power source typeATX

Expansion slots

PCI Express x1 (Gen 3.x) slots4
PCI Express x16 (Gen 3.x) slots3
Number of M.2 (M) slots2

BIOS

BIOS typeUEFI AMI
ACPI version5.0
Clear CMOS jumperYes

Processor special features

Intel Extreme Memory Profile (XMP)Yes

Weight & dimensions

Width305 mm
Depth244 mm
