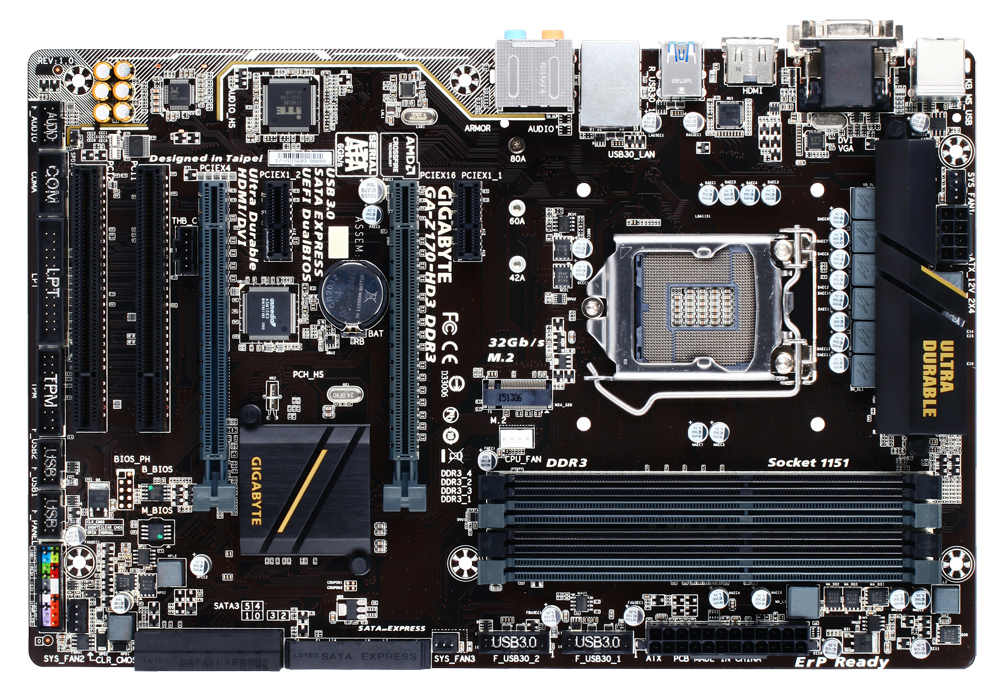

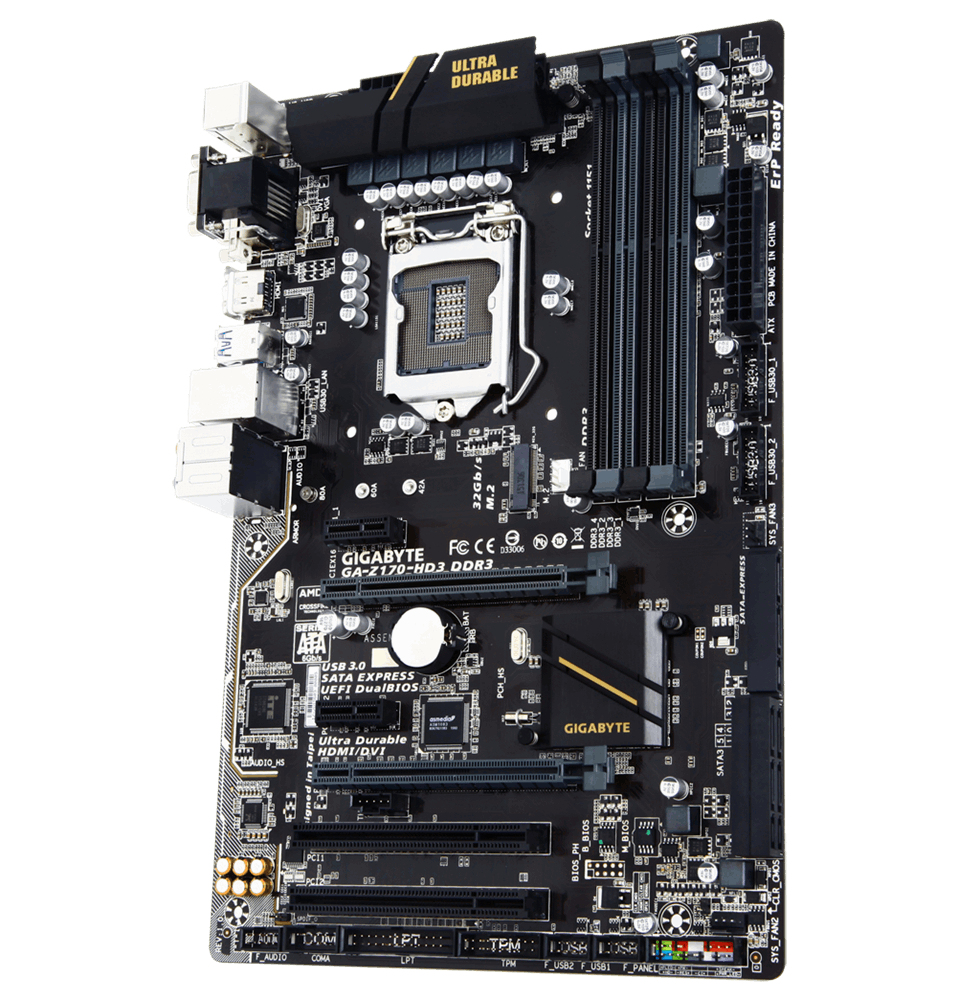

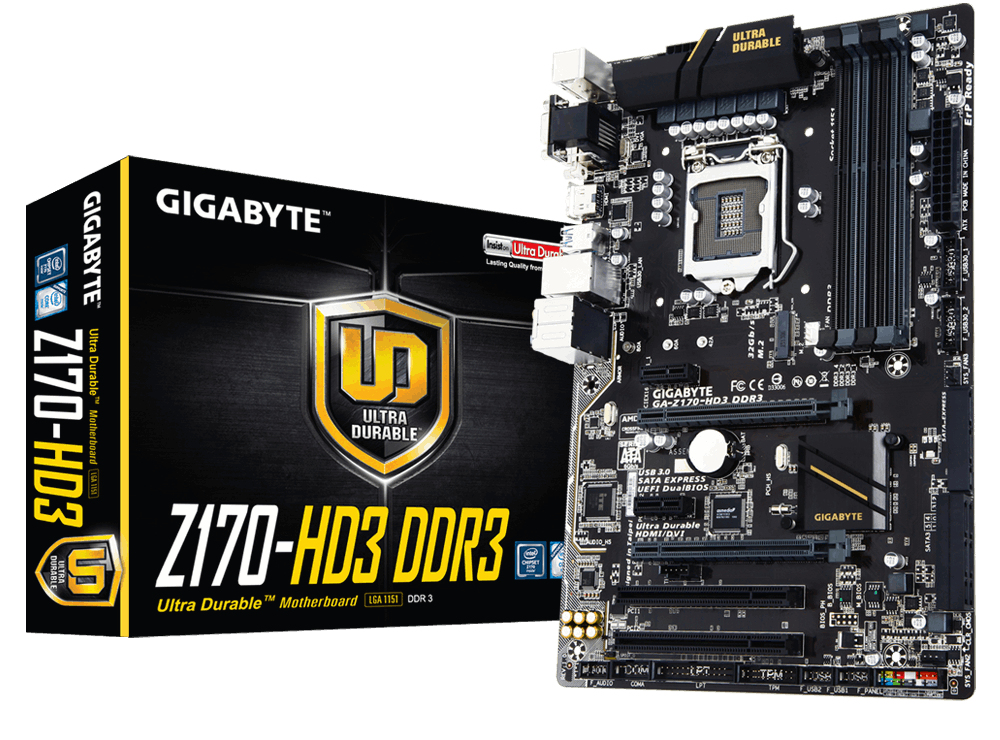

GIGABYTE GA-Z170-HD3 DDR3

GIGABYTE GA-Z170-HD3 DDR3

Model GA-Z170-HD3 DDR3Part no. GA-Z170-HD3 DDR3-R1EAN 7465043885817

56 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
  • Supported storage drive interfacesSATA
  • Maximum graphics card memory512 MB
  • USB 2.0 connectors6
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
Supported storage drive interfaces
SATA
Maximum graphics card memory
512 MB
USB 2.0 connectors
6
USB 2.0 ports quantity
2
Brand
GIGABYTE
Category
Motherboard
Model
GA-Z170-HD3 DDR3
Part numbers
GA-Z170-HD3 DDR3-R1, GA-Z170-HD3 DDR3
EAN / UPC
7465043885817, 889523001318, 4719331829261, 8809321849129
Also known as
GIGABYTE GA-Z170-HD3 DDR3 motherboard Intel® Z170 ATX

Specifications

56 specifications in 13 groups

Processor

Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Memory slots typeDIMM
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds1333,1600,1866,2000,2133,2400,2666,2800,2933,3000,3100,3200 MHz

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10

Graphics

Maximum graphics card memory512 MB
Parallel processing technology support2-Way CrossFireX
Number of displays supported3

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors8
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors0
Number of SATA II connectors0
Number of SATA connectors9
Number of Parallel ATA connectors1
S/PDIF out connectorYes
CPU fan connectorYes
Parallel connectorYes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

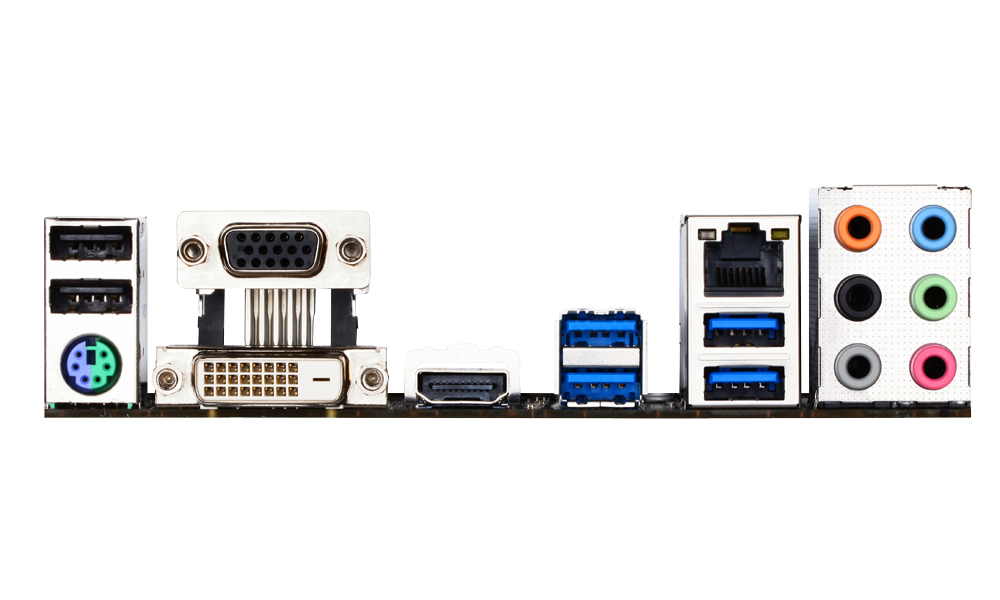

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® Z170
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots2
Number of M.2 (M) slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit

Processor special features

Trusted Platform Module (TPM)Yes

Weight & dimensions

Width305 mm
Depth199 mm

Packaging content

Cables includedSATA
Drivers includedYes
