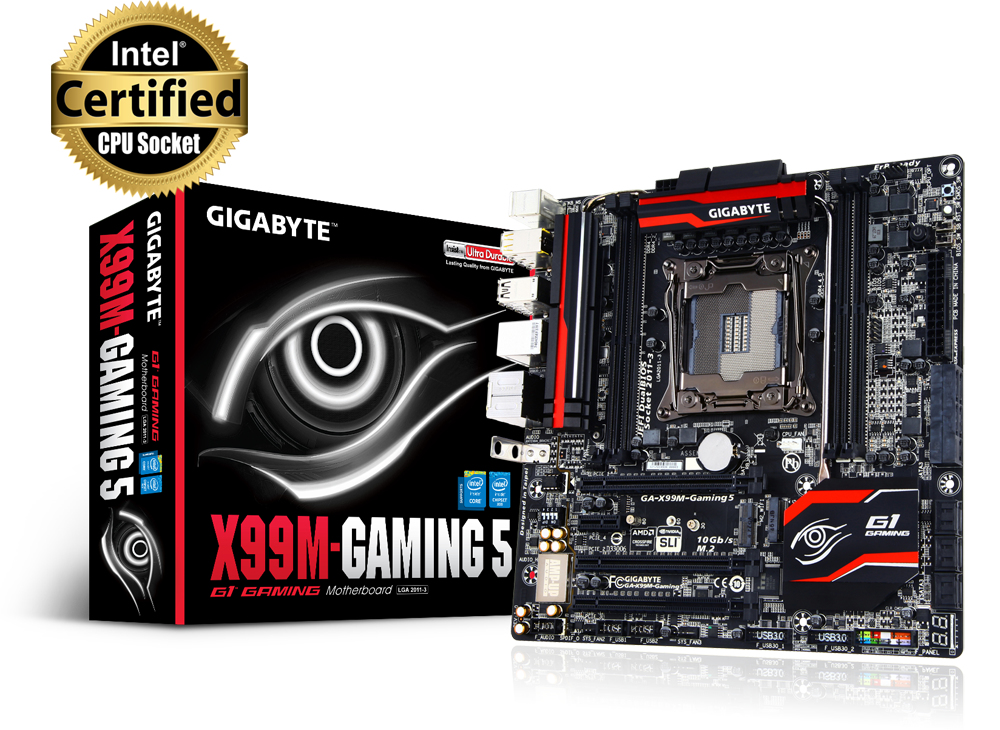

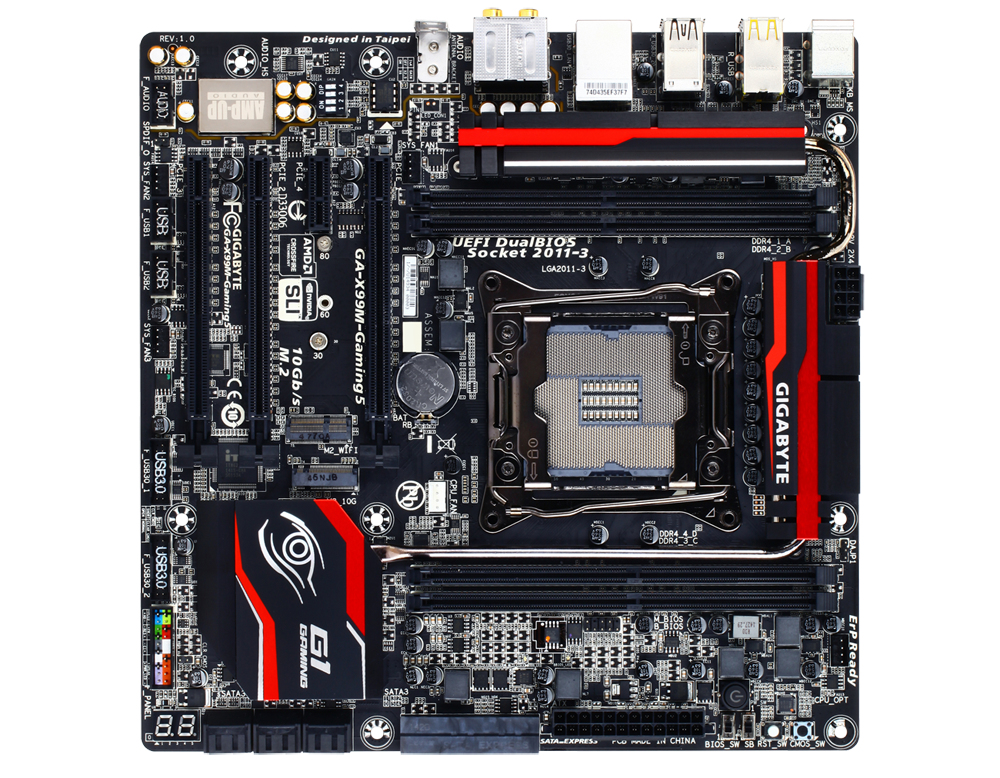

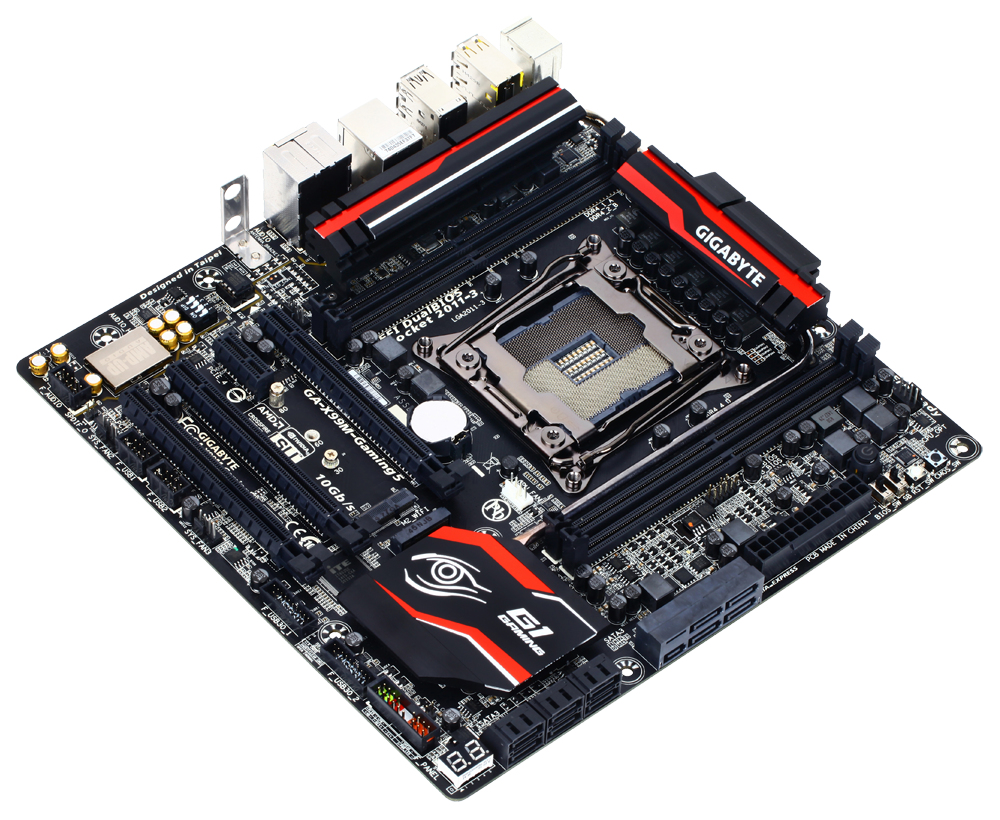

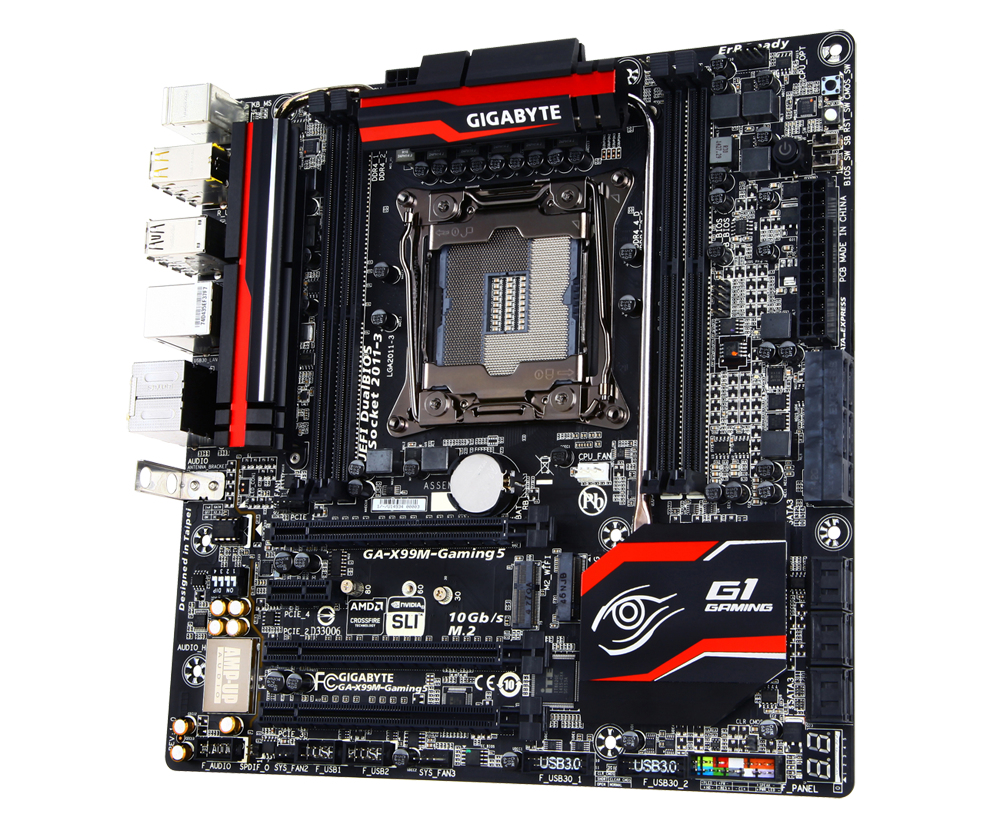

GIGABYTE GA-X99M Gaming 5

GIGABYTE GA-X99M Gaming 5

Model GA-X99M Gaming 5Part no. GA-X99M-GAMING 5EAN 813567020011

50 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity6
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
6
Brand
GIGABYTE
Category
Motherboard
Model
GA-X99M Gaming 5
Part number
GA-X99M-GAMING 5
EAN / UPC
813567020011, 8135670200114
Also known as
GIGABYTE GA-X99M Gaming 5 Intel® X99 LGA 2011-v3 micro ATX

Specifications

50 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA, SATA III

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors10
Number of SATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes

Rear panel I/O ports

USB 2.0 ports quantity6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs5
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
LAN controllerAtheros Killer E2201

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio chipRealtek ALC1150
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots2

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
Clear CMOS jumperYes
Clear CMOS buttonYes

Weight & dimensions

Width244 mm
Depth244 mm
