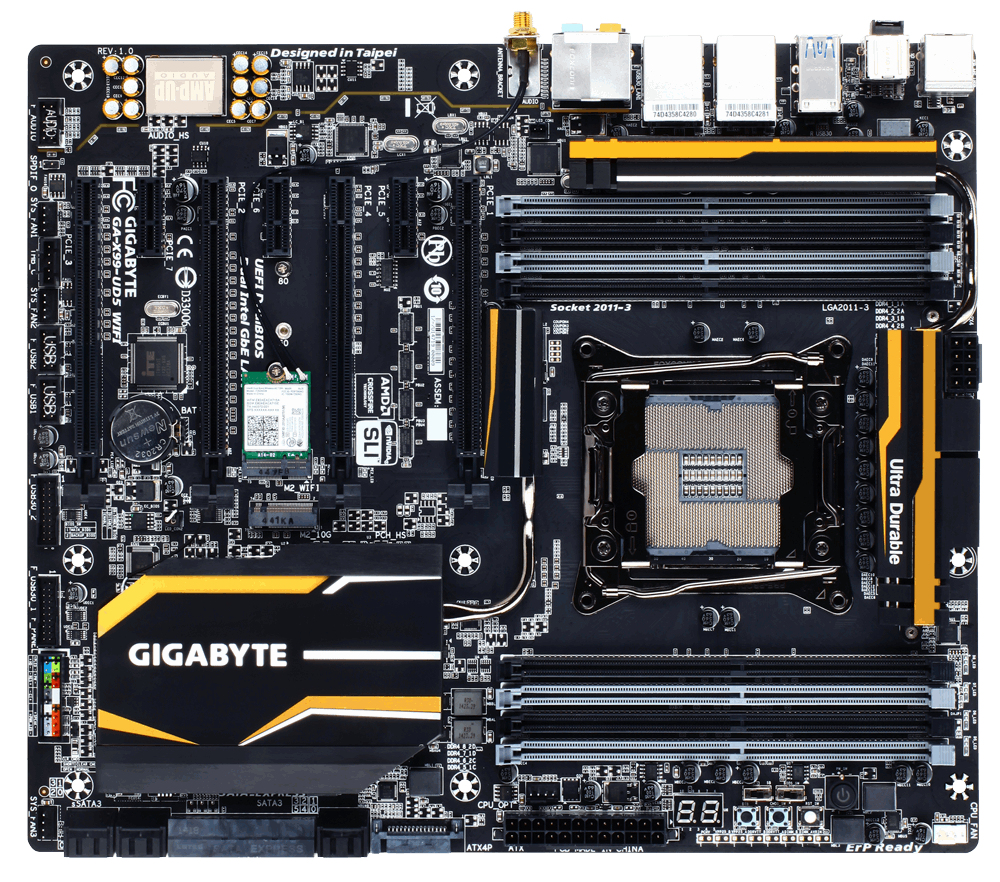

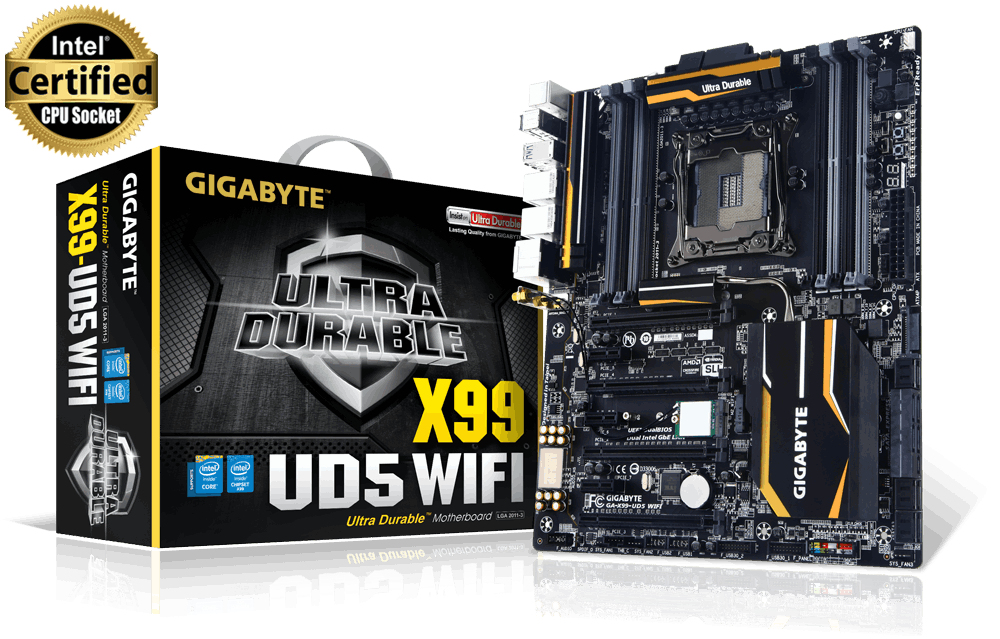

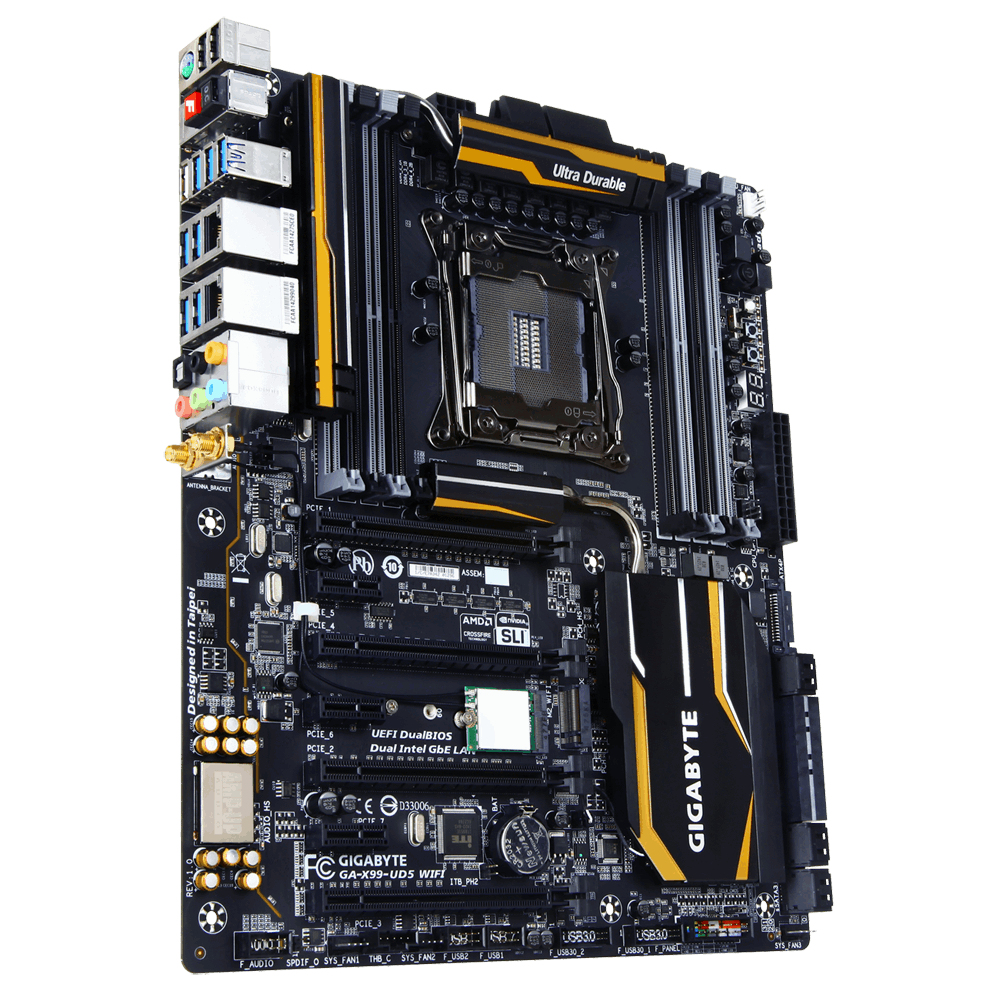

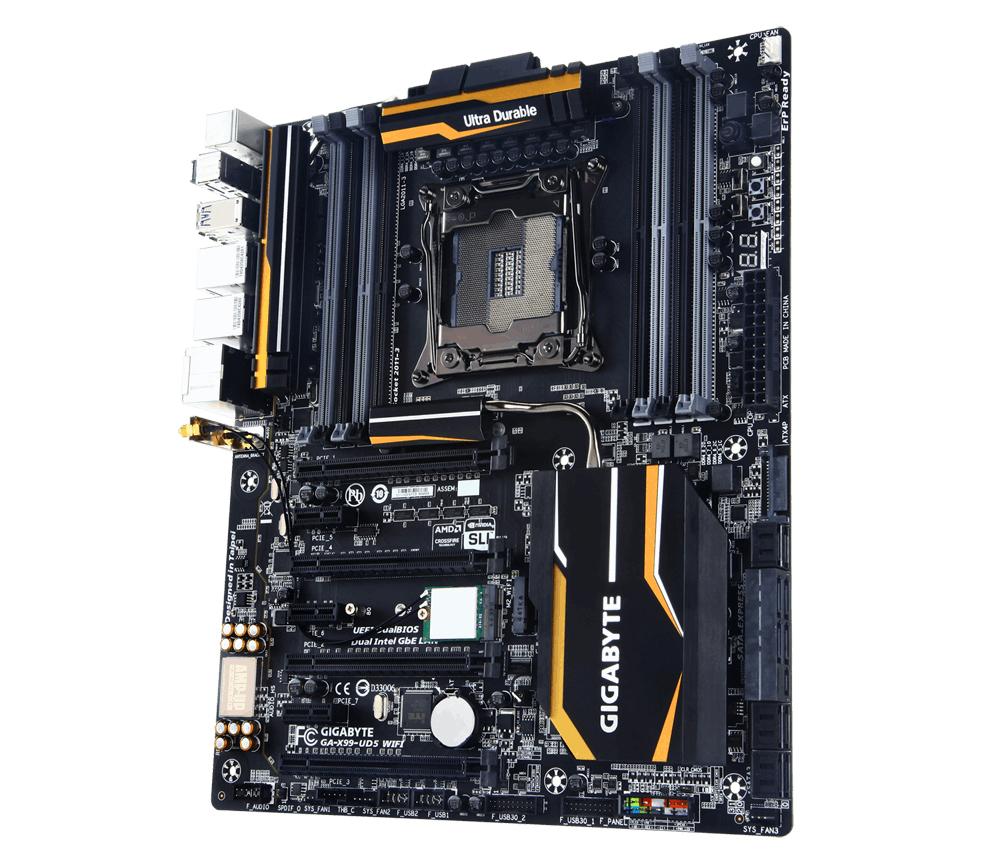

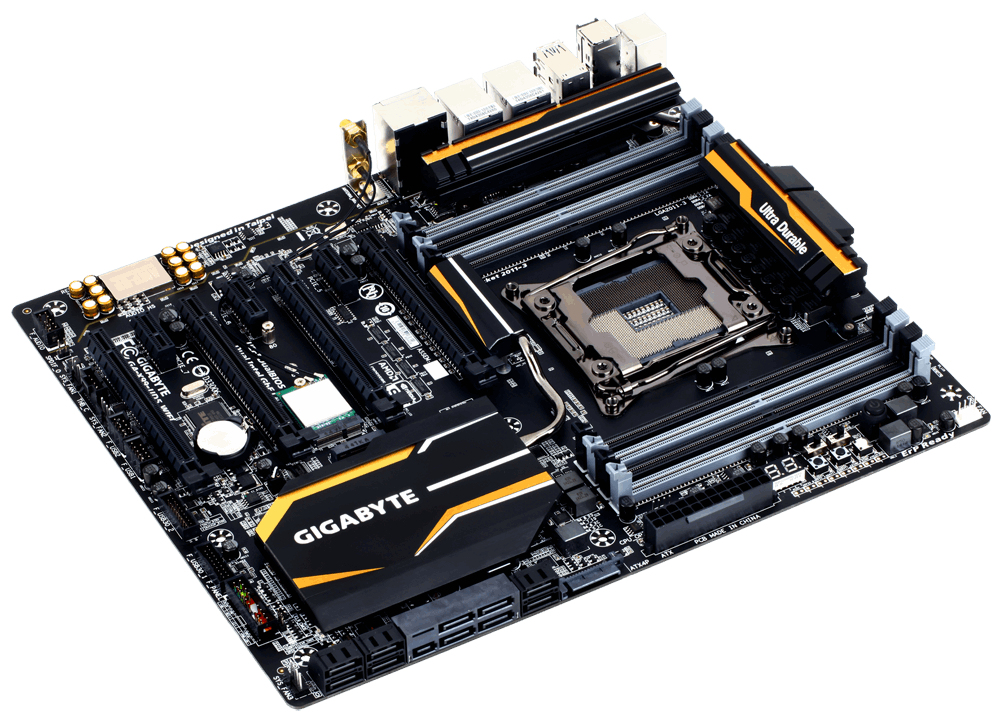

GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX
Model GA-X99-UD5WIFI
56 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA III
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA III
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X99-UD5WIFI
- Part number
- GA-X99-UD5WIFI
- Also known as
- GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX
Specifications
56 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Compatible processor series | Intel® X99 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| Supported memory clock speeds | 2133,2400,2666,2800 MHz |
| Maximum internal memory | 128 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 10 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Thunderbolt headers | 1 |

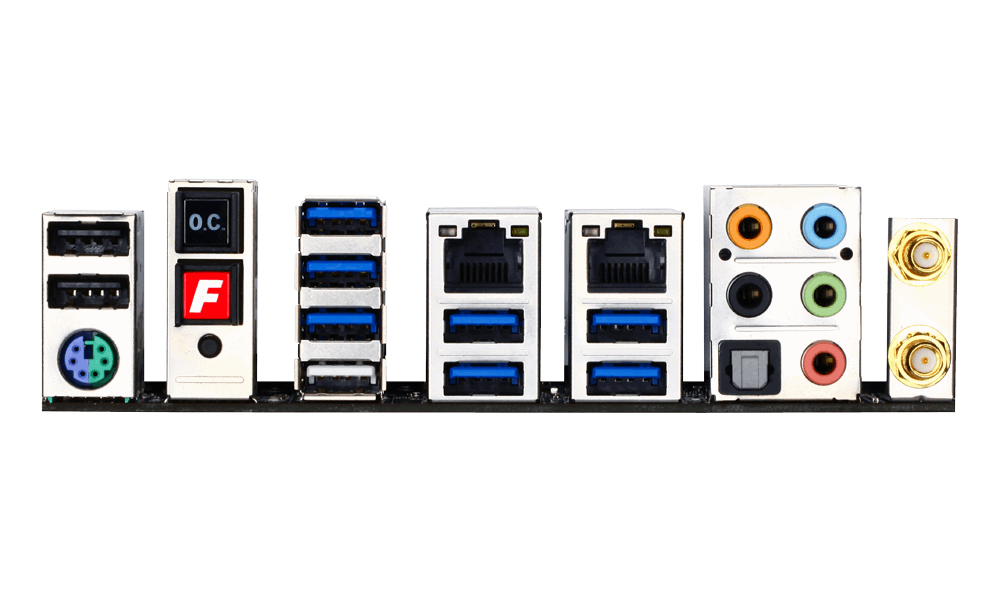

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth version | 4.0 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X99 |
| Audio chip | Realtek ALC1150 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Quiet System Technology (QST) | No |
| Intel Rapid Storage Technology | Yes |
| Intel Remote PC Assist Technology (RPAT) | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® Smart Response Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 259 mm |
Other features
| Specification | Value |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
What people say
Reviews & ratings
GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX

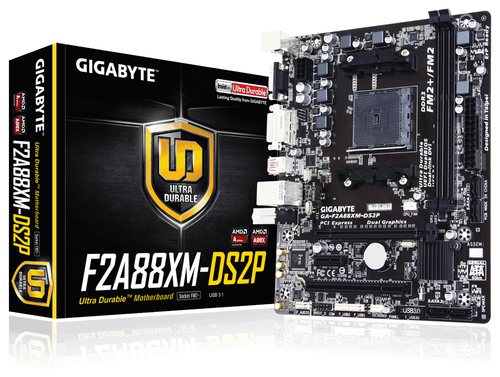

All motherboard comparisons- GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX vsGIGABYTE GA-F2A88XM-DS2P (rev. 1.0)Compare specs

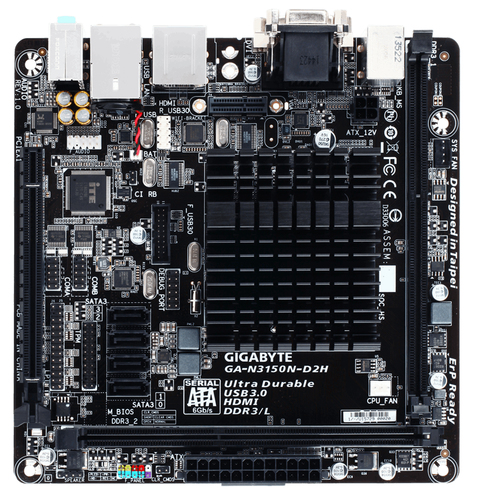

- GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX vsGIGABYTE GA-N3150N-D2H motherboard mini ITXCompare specs
- GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX vsGIGABYTE GA-X170-EXTREME ECC (rev. 1.0)Compare specs

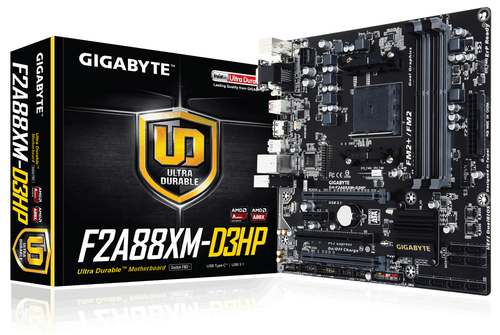

- GIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATX vsGIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATXCompare specs
