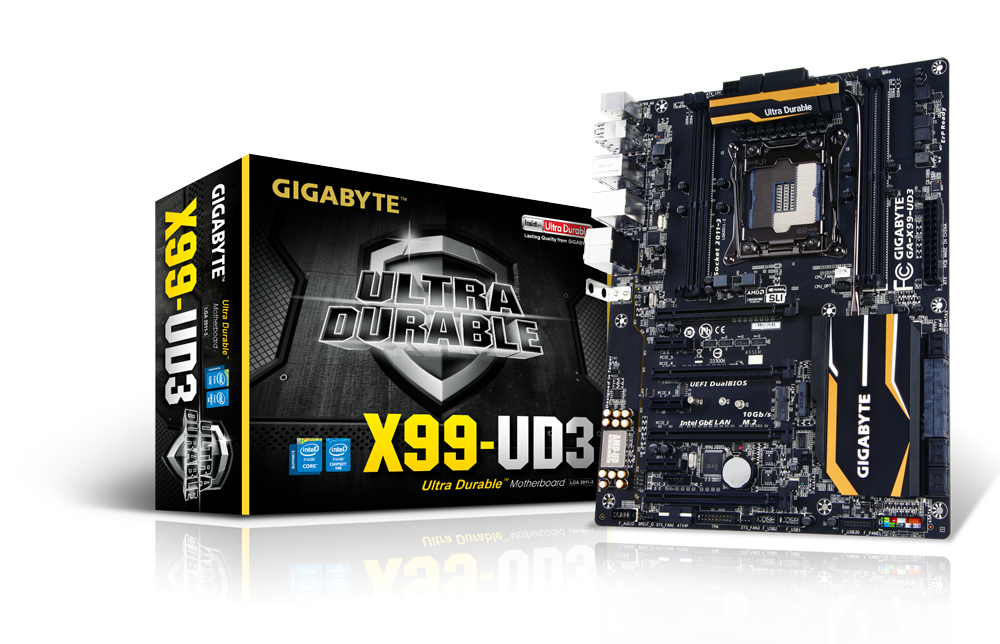

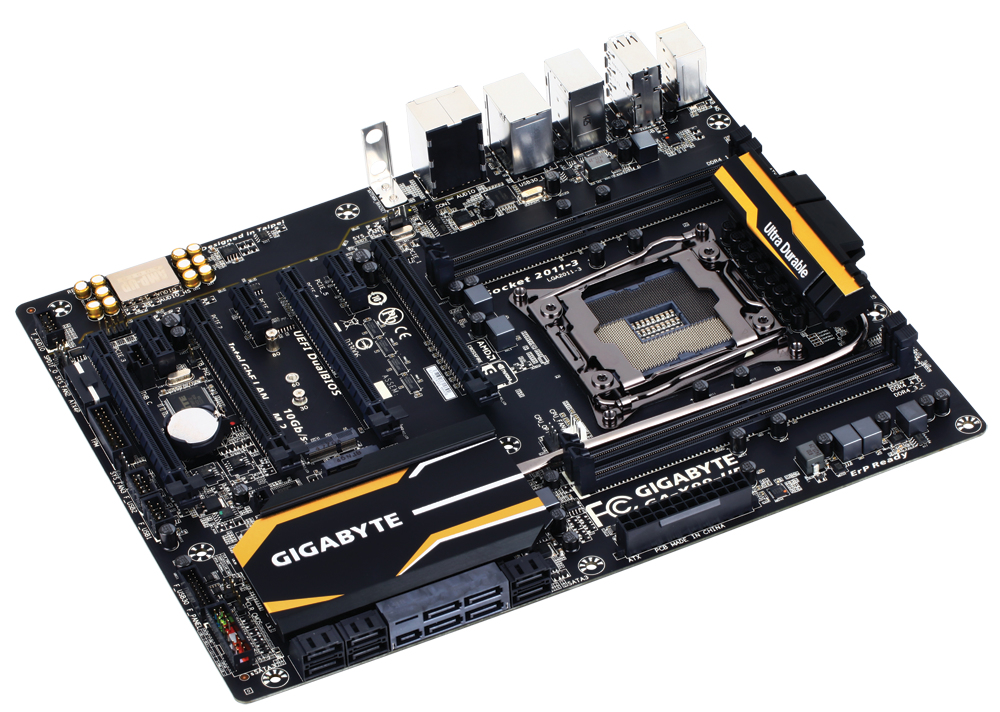

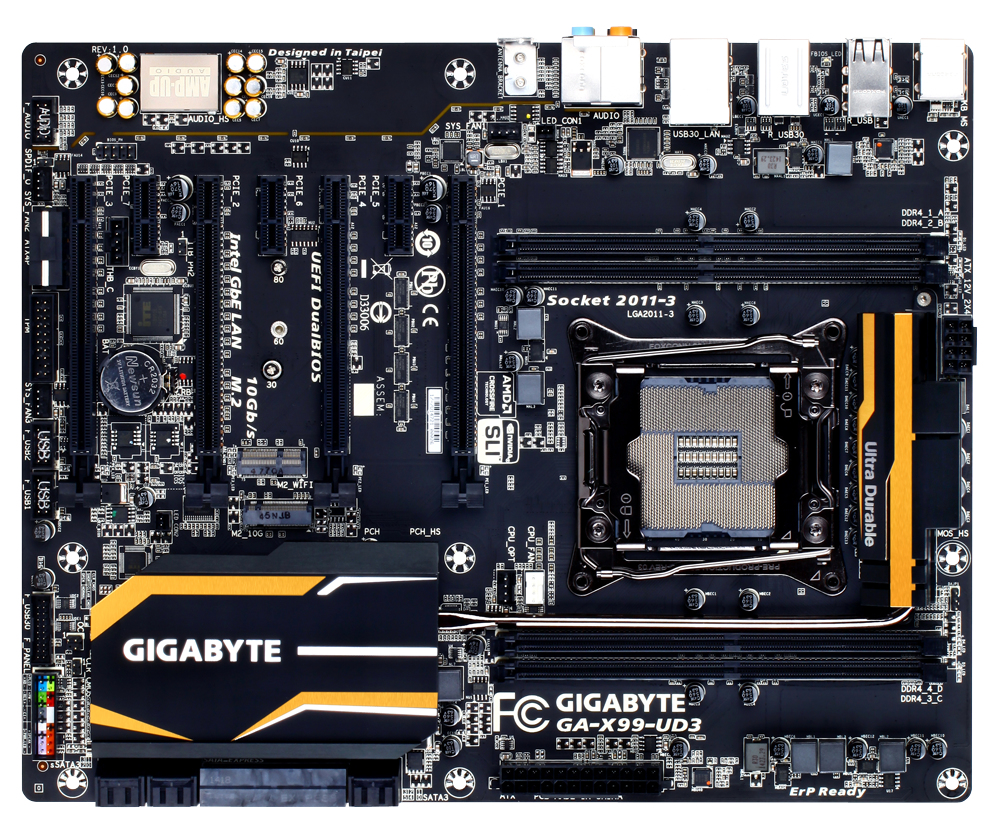

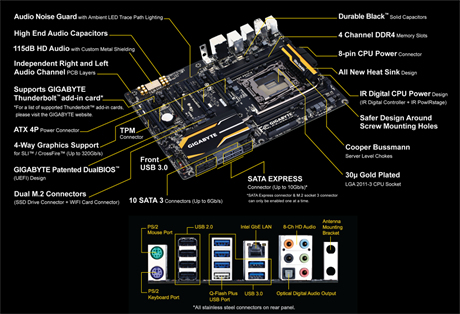

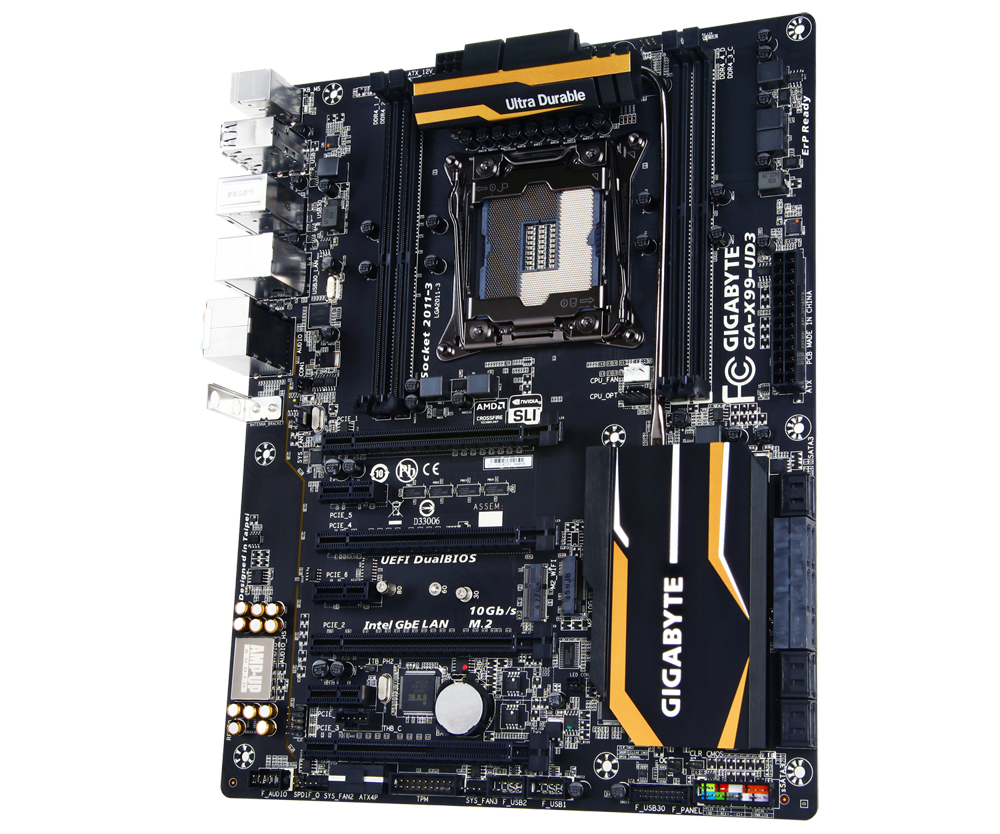

GIGABYTE GA-X99-UD3 motherboard Intel® X99 LGA 2011-v3 ATX

GIGABYTE GA-X99-UD3 motherboard Intel® X99 LGA 2011-v3 ATX

Model GA-X99-UD3EAN 8183130215956

49 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • USB 2.0 connectors4
  • Ethernet LANYes
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
USB 2.0 connectors
4
Ethernet LAN
Yes
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
GA-X99-UD3
Part number
GA-X99-UD3
EAN / UPC
8183130215956, 801940466273, 803983049796, 818313021595 +2 more
Also known as
GIGABYTE GA-X99-UD3 motherboard Intel® X99 LGA 2011-v3 ATX

Specifications

49 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7, Intel® Core™ i7 Extreme Edition

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000 MHz
Maximum internal memory32 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors8
Number of SATA III connectors10
Number of SATA connectors10
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes

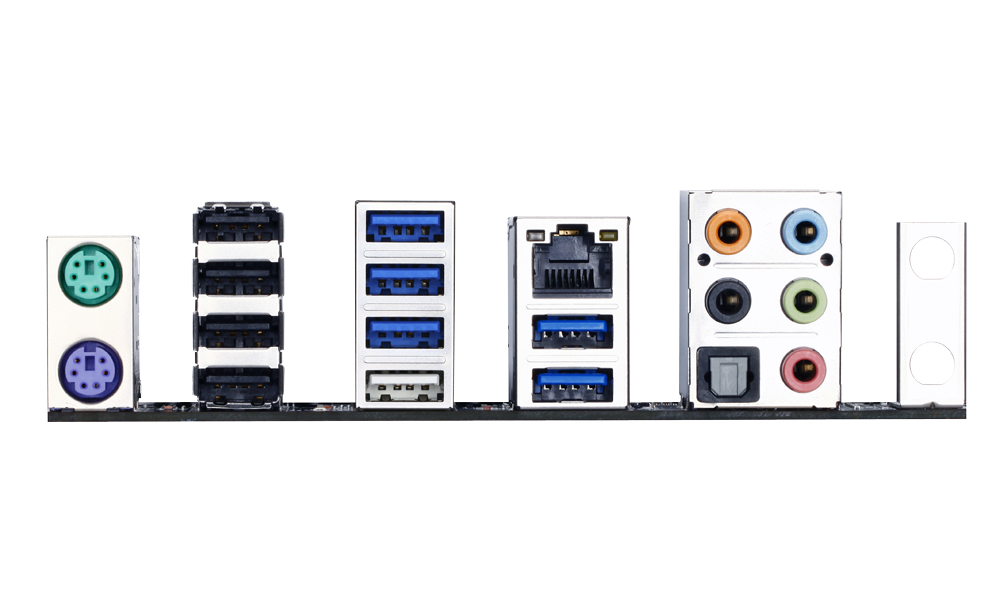

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio chipRealtek ALC1150
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots4

BIOS

BIOS typeUEFI
ACPI version5.0
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth244 mm

Other features

BIOS switch buttonYes
Back-to-BIOS buttonYes
