GIGABYTE GA-X99-SOC CHAMPION
Model GA-X99-SOC CHAMPIONEAN 813567020561
36 specifications
- Memory64 GB
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Component forPC
Overview
- Memory
- 64 GB
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X99-SOC CHAMPION
- Part number
- GA-X99-SOC CHAMPION
- EAN / UPC
- 813567020561, 4719331849269
- Also known as
- GIGABYTE GA-X99-SOC CHAMPION motherboard Intel® X99 LGA 2011-v3 Extended ATX
Specifications
36 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011-v3 |
| Compatible processor series | Intel® Core™ i7 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Quad-channel |
| ECC сompatibility | Non-ECC |
| Internal memory | 64 GB |
| Supported memory clock speeds | 2400,2666,2800,3000,3200,3333,3400 MHz |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA connectors | 11 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Serial port headers | 1 |

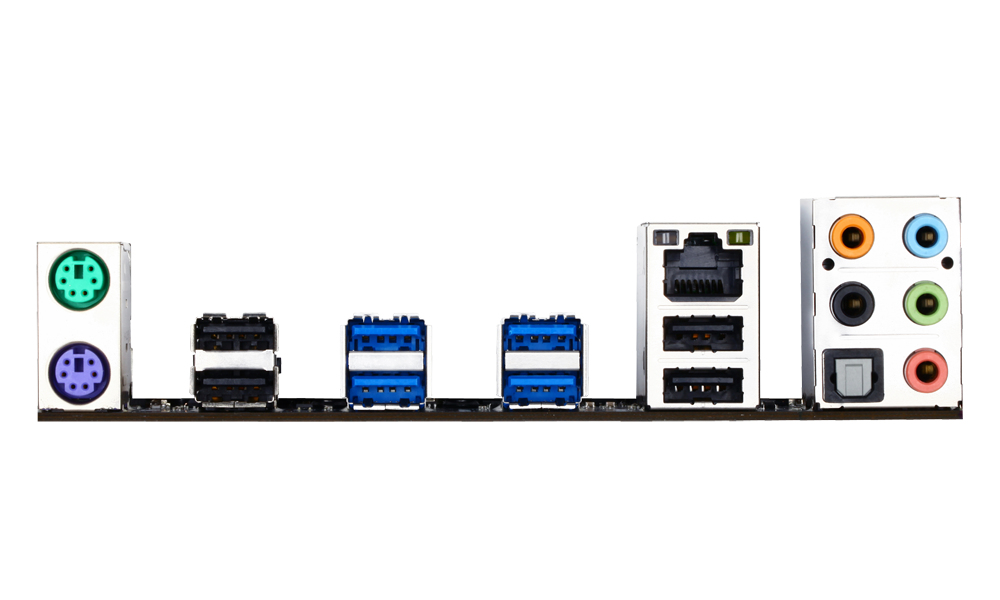

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| Thunderbolt ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X99 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 264 mm |
