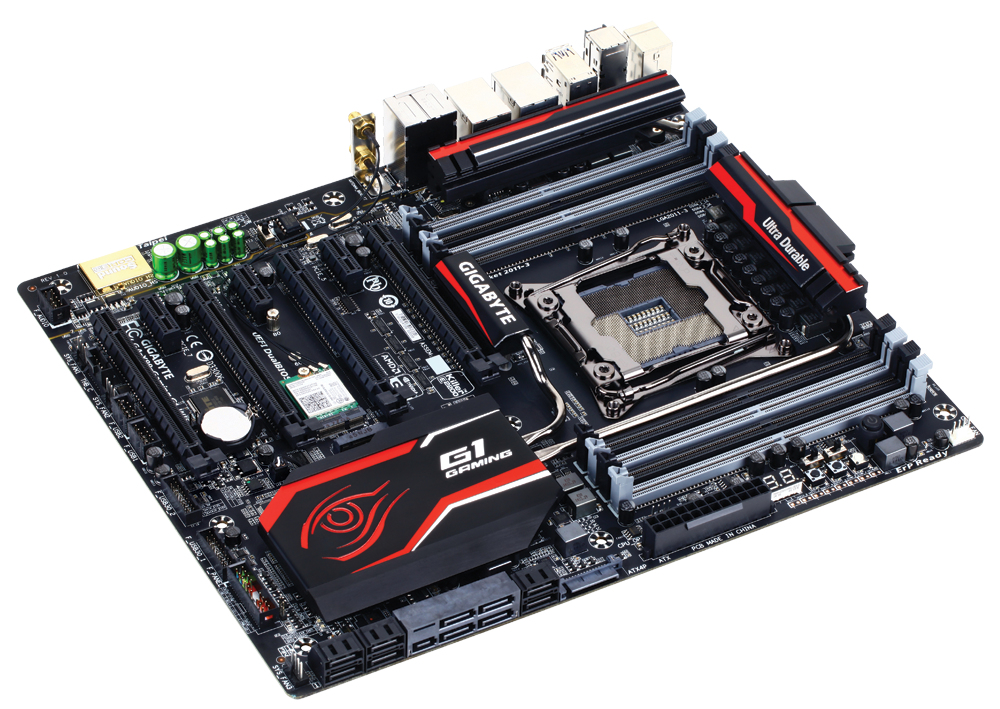

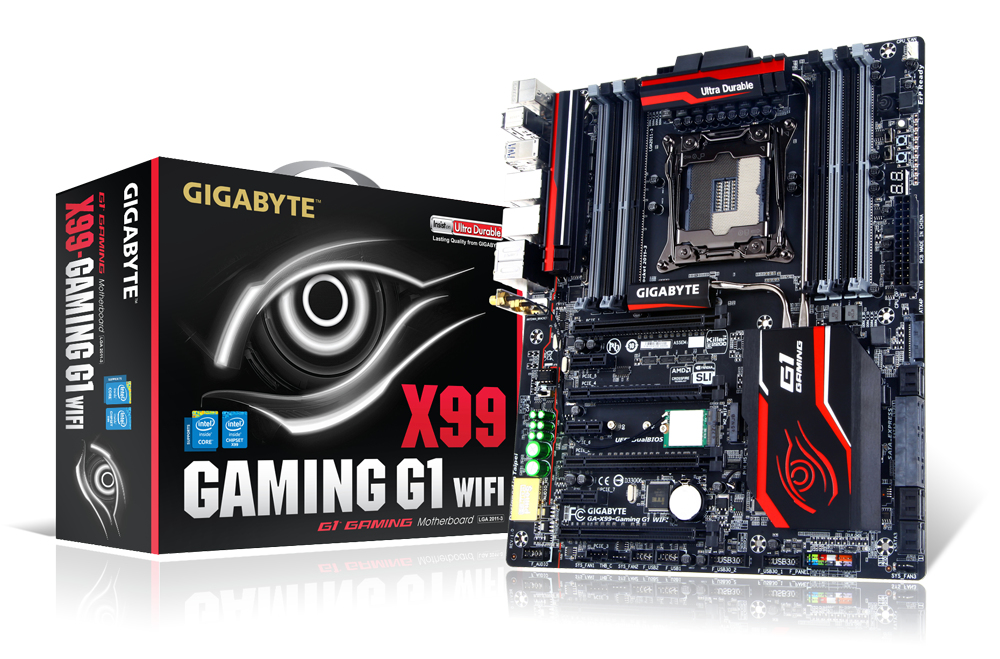

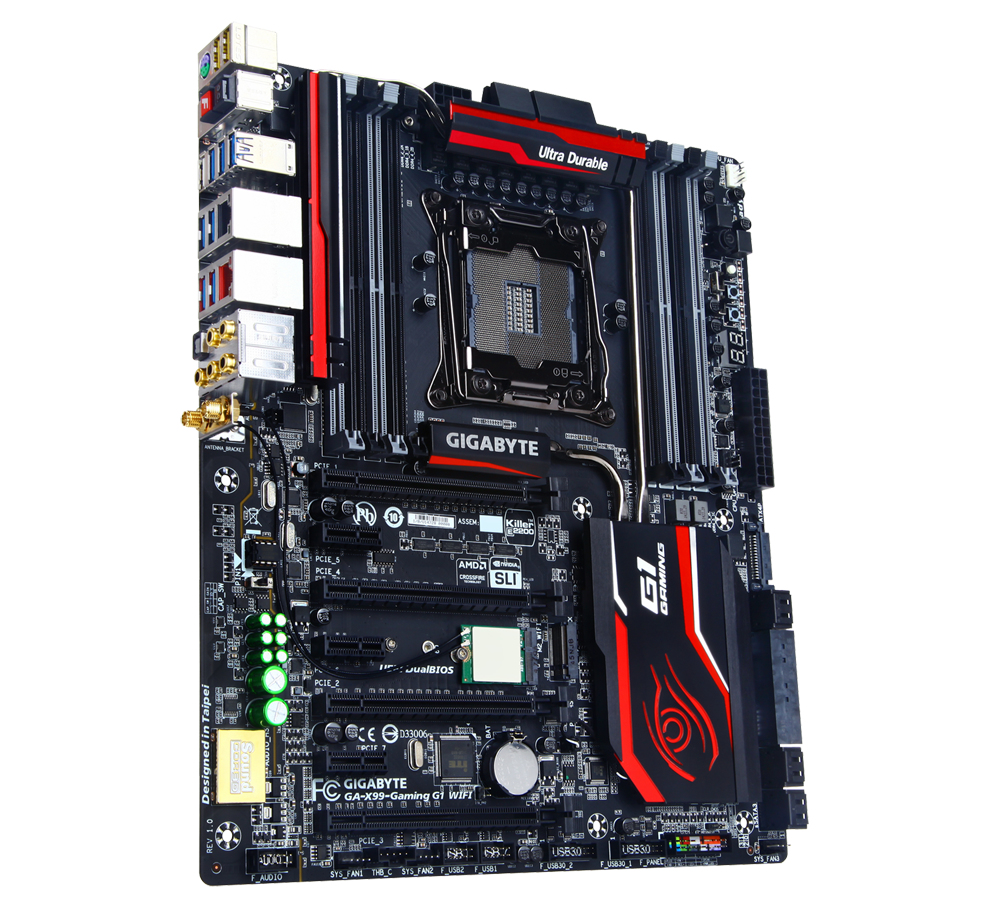

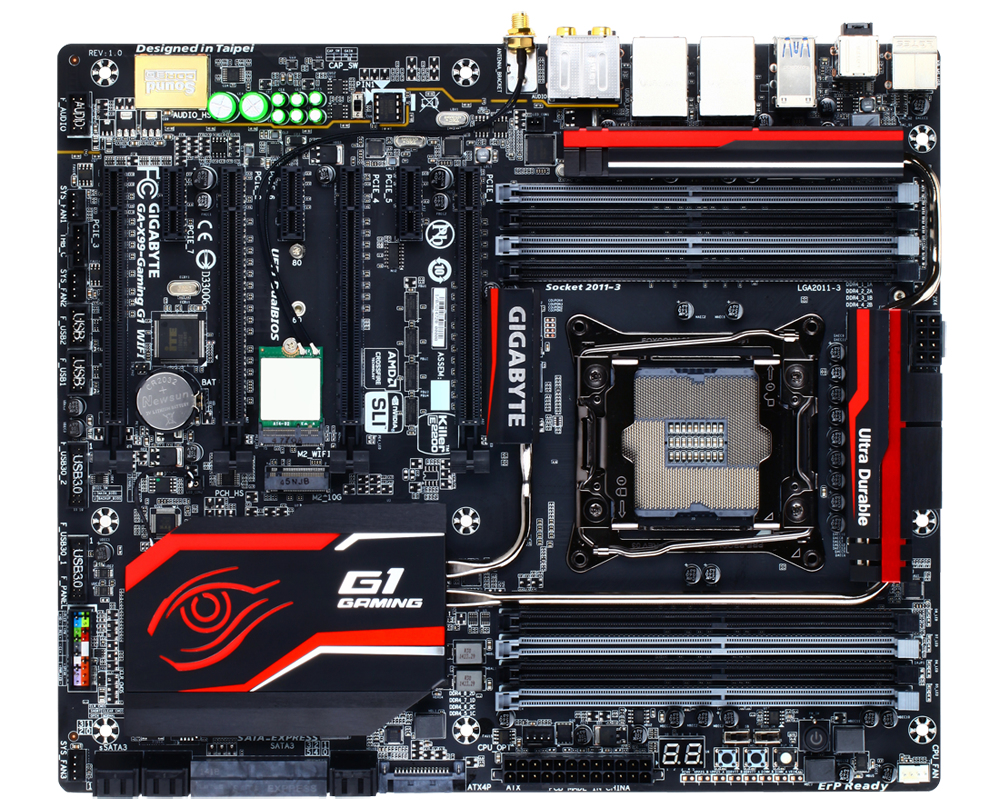

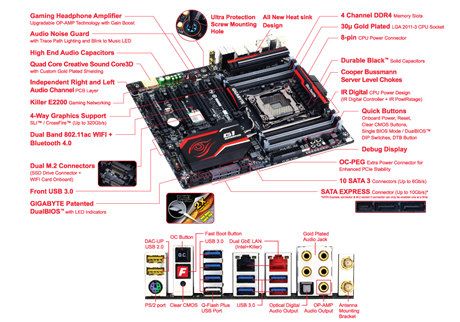

GIGABYTE GA-X99-Gaming G1 WIFI

GIGABYTE GA-X99-Gaming G1 WIFI

Model GA-X99-Gaming G1 WIFIPart no. GA-X99-GAMING G1 WIFIEAN 818313021533

52 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesSATA, SATA II, SATA III
  • USB 2.0 connectors6
  • USB 2.0 ports quantity2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
SATA, SATA II, SATA III
USB 2.0 connectors
6
USB 2.0 ports quantity
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-X99-Gaming G1 WIFI
Part number
GA-X99-GAMING G1 WIFI
EAN / UPC
818313021533, 4719331832209, 8183130215338
Also known as
GIGABYTE GA-X99-Gaming G1 WIFI Intel® X99 LGA 2011 (Socket R) Extended ATX

Specifications

52 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011 (Socket R)
Compatible processor seriesIntel® Core™ i7, Intel® Core™ i7 Extreme Edition

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesSATA, SATA II, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX, 4-Way SLI

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors4
Number of SATA III connectors10
Number of SATA connectors10
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes

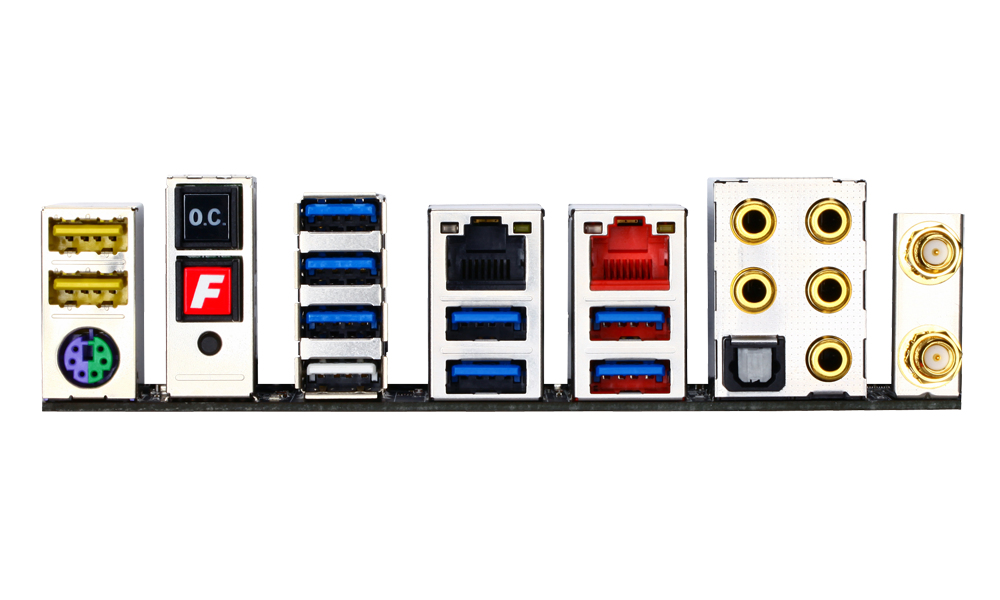

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity8
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
BluetoothYes
Bluetooth version4.0

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio output channels5.1 channels
PC health monitoringCPU, Fan, Temperature
Power source typeATX

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots4

BIOS

BIOS typeUEFI
ACPI version5.0
Clear CMOS buttonYes

Weight & dimensions

Width305 mm
Depth259 mm

Other features

BIOS switch buttonYes
Back-to-BIOS buttonYes
