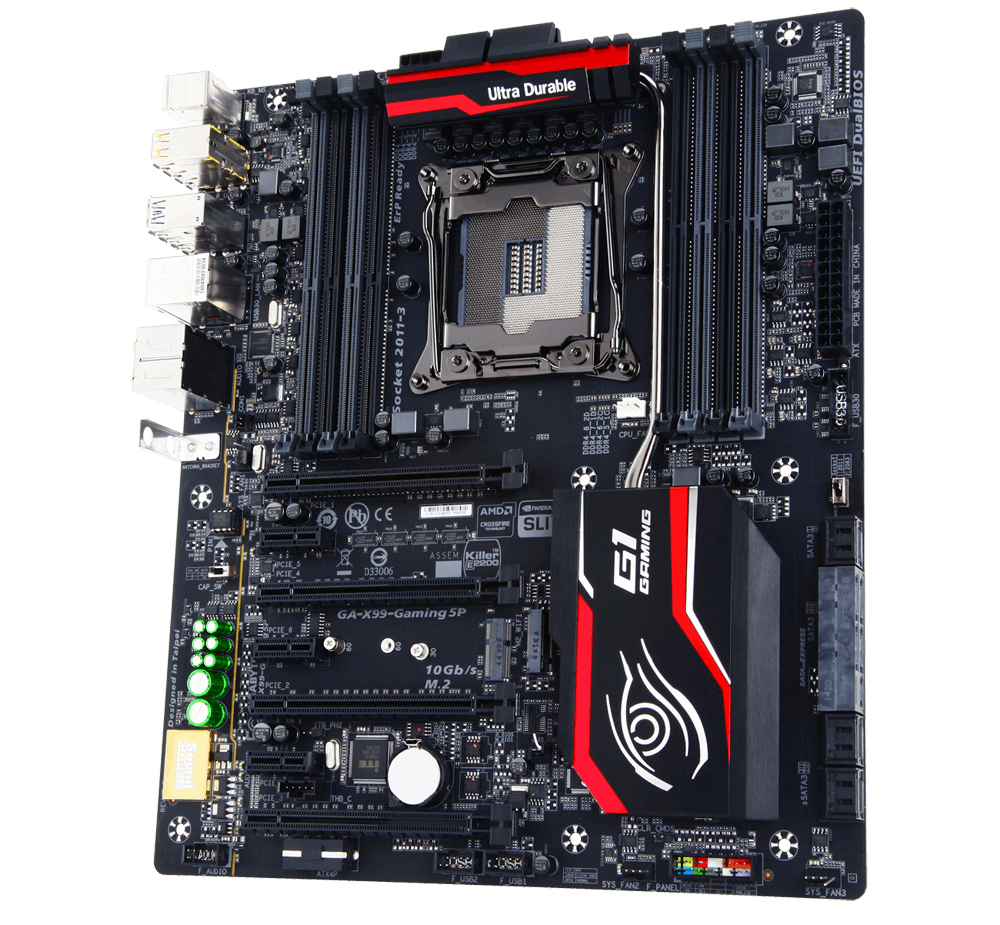

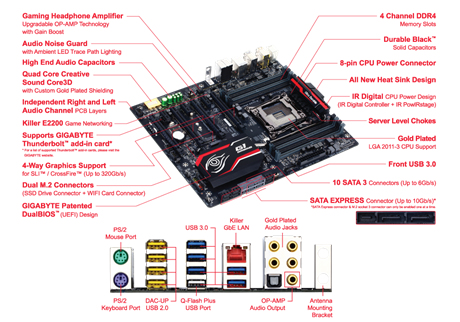

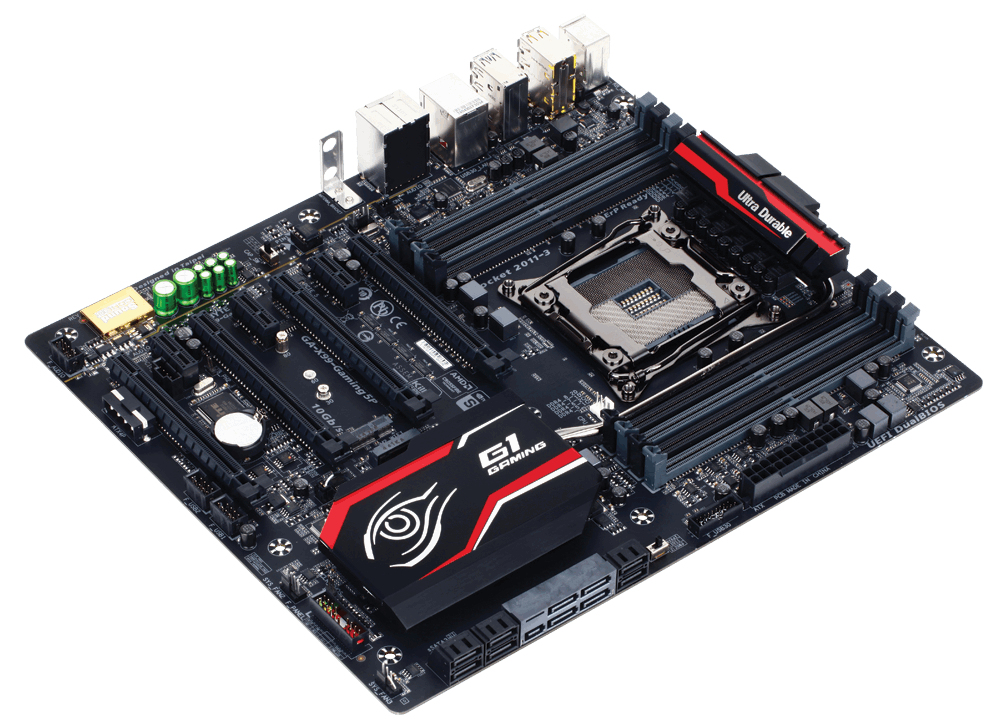

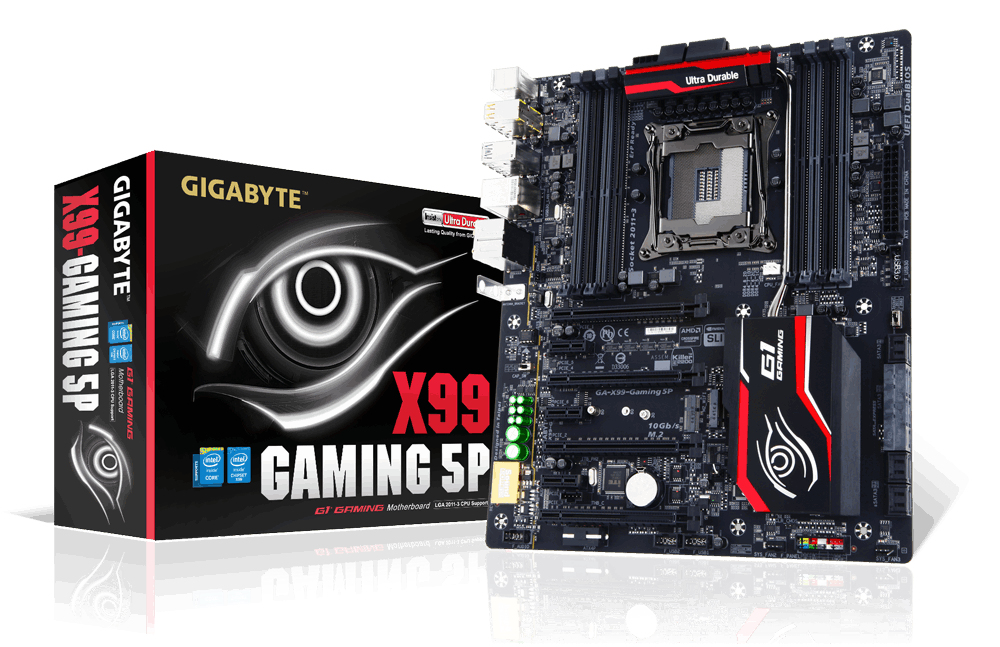

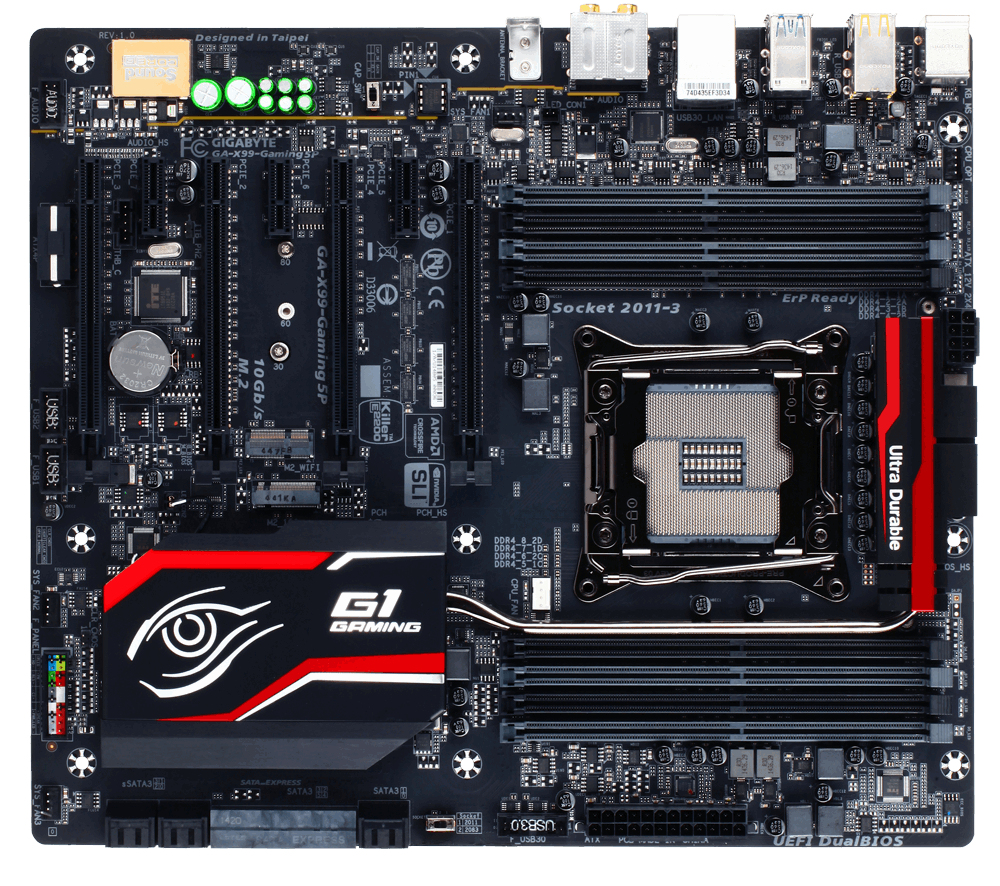

GIGABYTE GA-X99-Gaming 5P

GIGABYTE GA-X99-Gaming 5P

Model GA-X99-Gaming 5PPart no. GA-X99-Gaming 5P-R1EAN 4719331807412

51 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA, SATA III
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA, SATA III
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-X99-Gaming 5P
Part numbers
GA-X99-Gaming 5P-R1, GA-X99-GAMING 5P
EAN / UPC
4719331807412, 809396060168, 889523000083, 5054629797198
Also known as
GIGABYTE GA-X99-Gaming 5P Intel® X99 LGA 2011-v3 Extended ATX

Specifications

51 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 2011-v3
Compatible processor seriesIntel® Core™ i7
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive interfacesM.2, SATA, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX, 3-Way CrossFireX, 3-Way SLI, 4-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors10
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
EPS power connector (8-pin)Yes

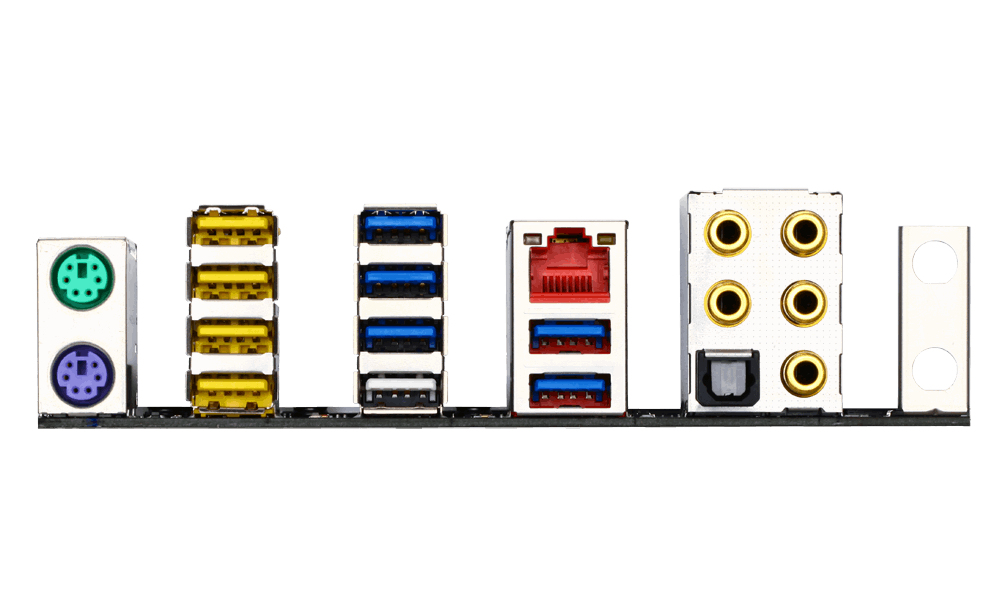

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Microphone inYes
S/PDIF out portYes
Thunderbolt ports quantity1
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerAtheros Killer E2201

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® X99
Audio output channels5.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 2.x) slots3
PCI Express x16 slots4

BIOS

BIOS typeUEFI AMI
BIOS memory size128 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width264 mm
Depth305 mm

Other features

PCI Express power connectors (6-pin)1
