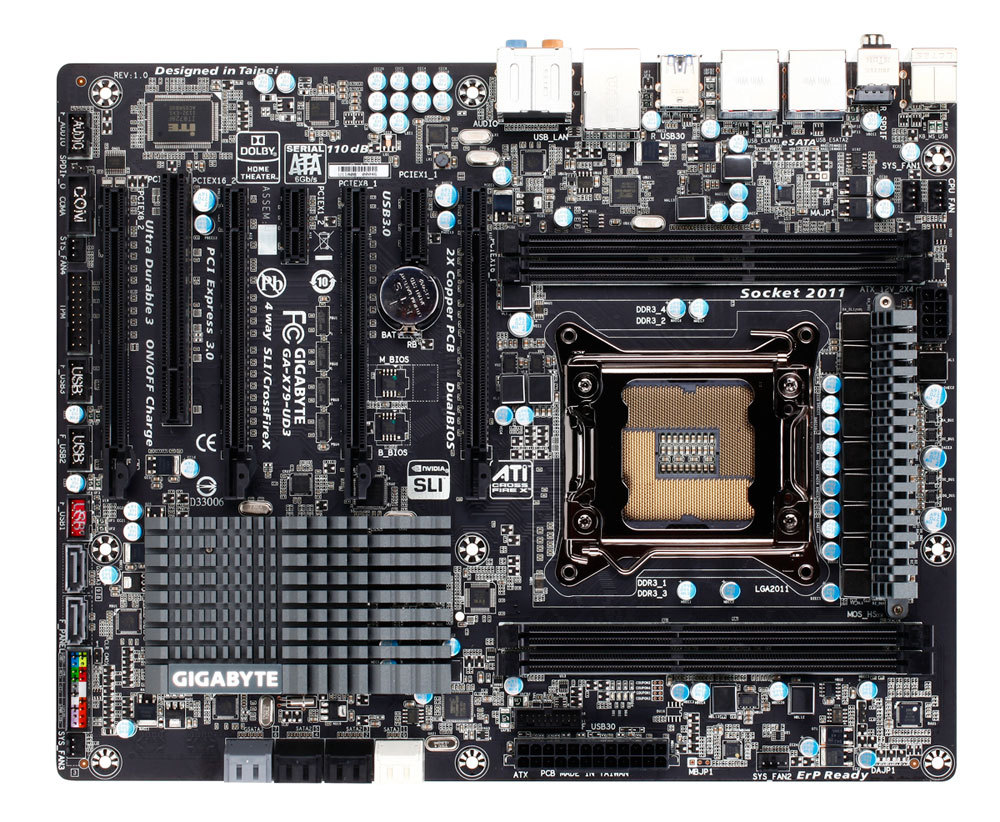

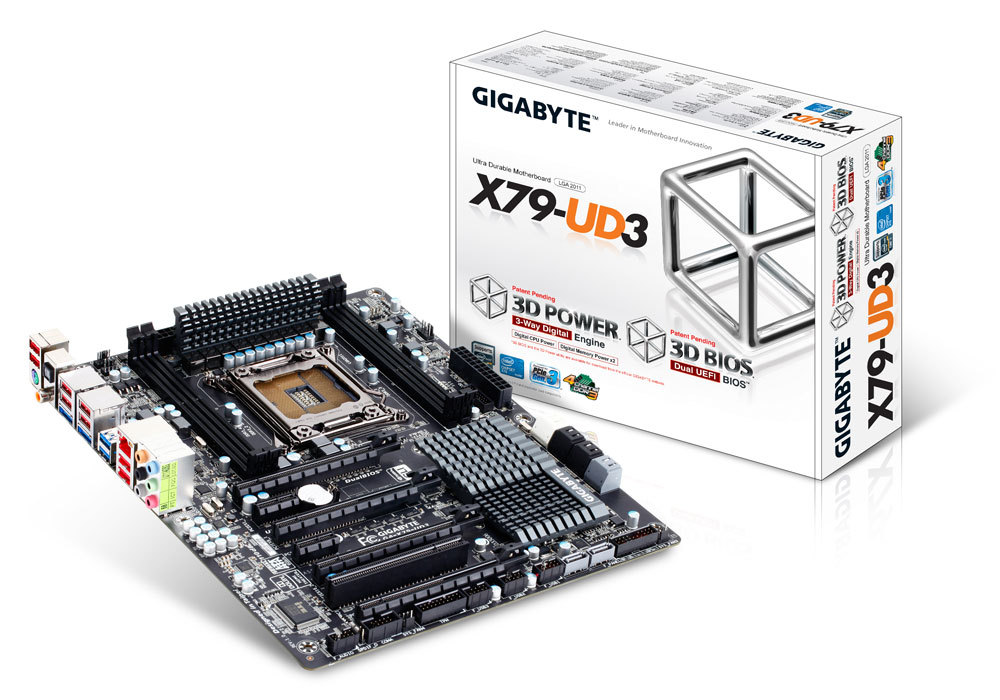

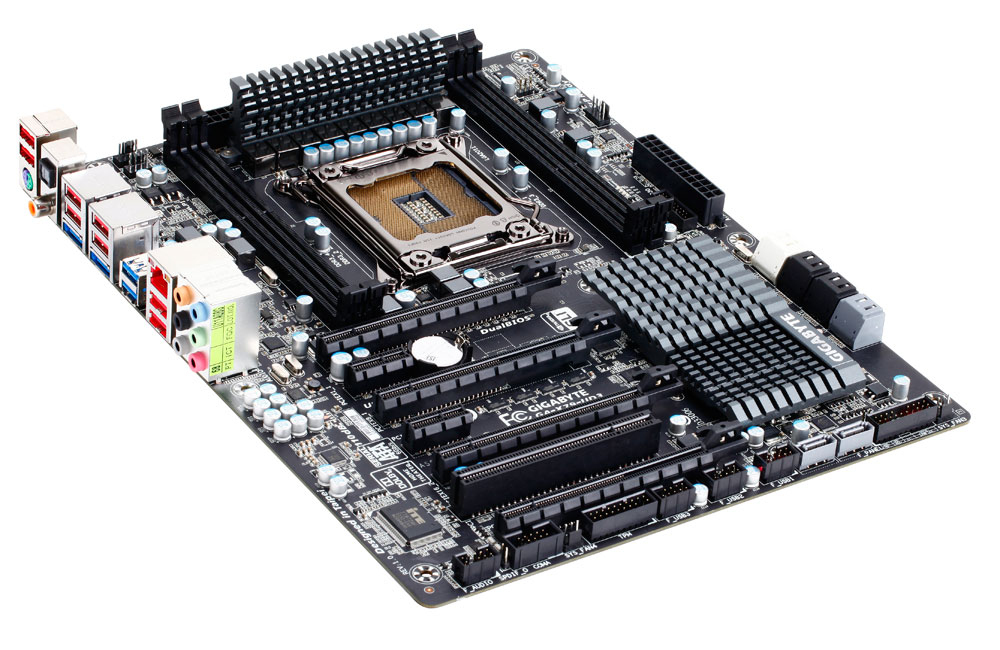

GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX
Model GA-X79-UD3Part no. GA-X79-UD3-R1.xEAN 8183130137364
61 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA II, SATA III
- On-board graphics cardNo
- USB 2.0 connectors3
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA II, SATA III
- On-board graphics card
- No
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X79-UD3
- Part numbers
- GA-X79-UD3-R1.x, GA-X79-UD3, GA-X79-UD3-R1
- EAN / UPC
- 8183130137364, 818313013736, 4054318202263, 4719331843335 +2 more
- Also known as
- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX
Specifications
61 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Compatible processor series | Intel® Core™ i7 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Quad-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1200,1300,1333,1500,1600,1666,1800,1866,1900,2000,2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II, SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way SLI, 3-Way SLI, Hybrid CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

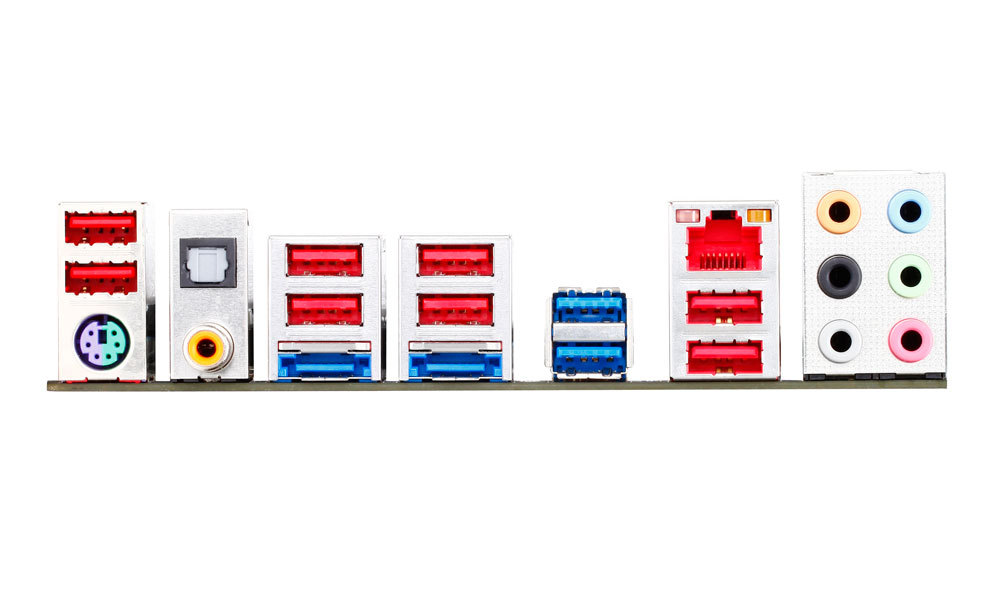

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Networking features | 10/100/1000 Mbit/sec |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC898 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 4 |
| PCI Express slots version | 3.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | EFI AMI |
| BIOS memory size | 64 Mbit |
| ACPI version | 2.0a |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX
All motherboard comparisons- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX vsGIGABYTE GA-X79-UD7 motherboard LGA 2011 (Socket R) XL-ATXCompare specs
- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX vsGIGABYTE GA-X79-UD5 motherboard LGA 2011 (Socket R) Extended ATXCompare specs
- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX vsGIGABYTE 8S651MP-RZ motherboard Socket 478 micro ATXCompare specs
- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX vsGIGABYTE 8S648FX-RZ motherboard Socket 478 ATXCompare specs
- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX vsASUS Maximus IV GENE-Z/GEN3Compare specs

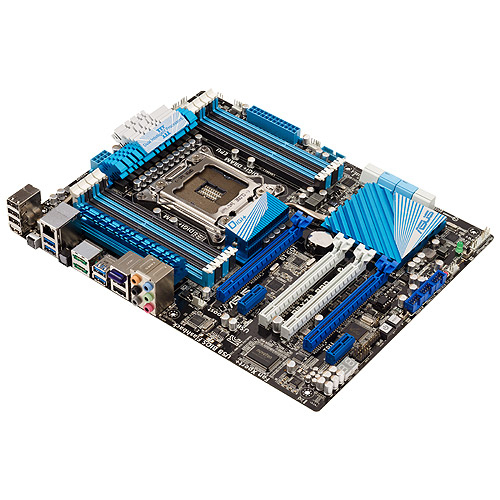

- GIGABYTE GA-X79-UD3 motherboard LGA 2011 (Socket R) ATX vsASUS P9X79 PROCompare specs
