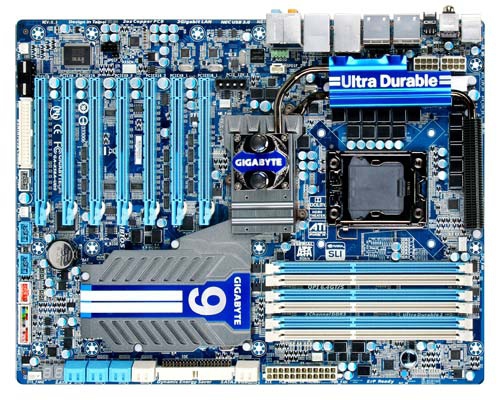

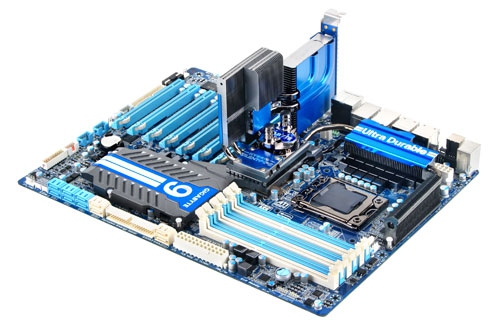

GIGABYTE GA-X58A-UD9 motherboard Socket B (LGA 1366) XL-ATX

GIGABYTE GA-X58A-UD9 motherboard Socket B (LGA 1366) XL-ATX

Model GA-X58A-UD9EAN 4719331816179

45 specifications
  • Processor manufacturerIntel
  • Number of memory slots6
  • RAID levels0, 1, 5, 10, JBOD
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
  • LAN controllerRealtek RTL8111E
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
6
RAID levels
0, 1, 5, 10, JBOD
USB 2.0 connectors
3
USB 2.0 ports quantity
4
LAN controller
Realtek RTL8111E
Brand
GIGABYTE
Category
Motherboard
Model
GA-X58A-UD9
Part number
GA-X58A-UD9
EAN / UPC
4719331816179, 5052179769122
Also known as
GIGABYTE GA-X58A-UD9 motherboard Socket B (LGA 1366) XL-ATX

Specifications

45 specifications in 12 groups

Processor

Processor manufacturerIntel

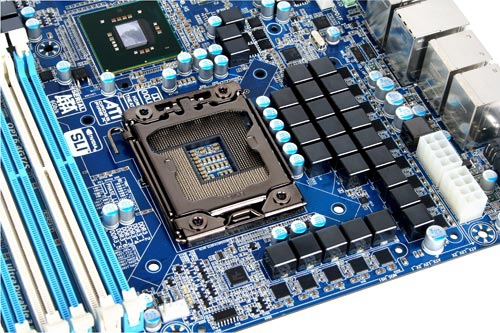

Processor socketSocket B (LGA 1366)

Memory

Number of memory slots6
ECC сompatibilityNon-ECC
Maximum internal memory24 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Internal I/O

USB 2.0 connectors3
Number of SATA connectors10
Number of Parallel ATA connectors1
S/PDIF out connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Number of IEEE1394 connectors1

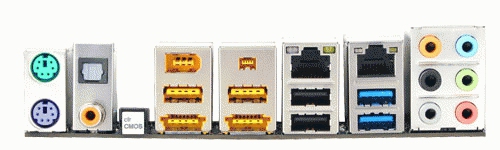

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports2
eSATA ports quantity2
PS/2 ports quantity2
Firewire (IEEE 1394) ports2
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

LAN controllerRealtek RTL8111E
Networking featuresGigabit Ethernet

Features

Motherboard form factorXL-ATX
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/Vista/XP

Expansion slots

PCI Express x8 slots3
PCI Express x16 slots4

BIOS

BIOS typeAWARD
ACPI version1.0b

Weight & dimensions

Width345 mm
Depth262 mm

Packaging content

Bundled softwareNorton Internet Security

Other features

S/PDIF in connectorYes
Controller 2nd interface typeIDE
Controller interface typeSATA
Floppy disk drive connectorYes
