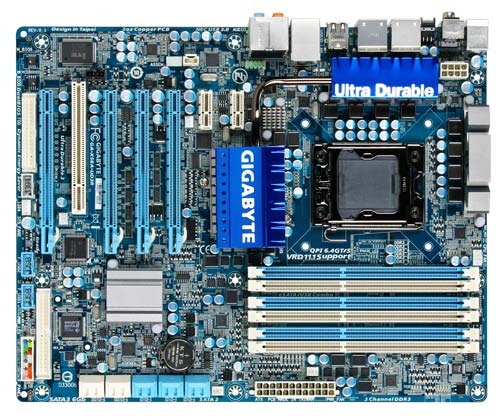

GIGABYTE GA-X58A-UD3R motherboard Socket B (LGA 1366) ATX
Model GA-X58A-UD3RPart no. GA-X58A-UD3R-R2EAN 102646073292
47 specifications
- Processor manufacturerIntel
- Number of memory slots6
- On-board graphics cardNo
- USB 2.0 connectors2
- USB 2.0 ports quantity4
- Networking features10/100/1000 Mbit/s
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 6
- On-board graphics card
- No
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100/1000 Mbit/s
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X58A-UD3R
- Part numbers
- GA-X58A-UD3R-R2, GA-X58A-UD3R-R1, GA-X58A-UD3R, DSG - X58A-UD3R
- EAN / UPC
- 102646073292, 818313009760, 4719331852092
- Also known as
- GIGABYTE GA-X58A-UD3R motherboard Socket B (LGA 1366) ATX
Specifications
47 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket B (LGA 1366) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 24 GB |
| Controller type | Dual/3 channel |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 10 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| Number of IEEE1394 connectors | 1 |

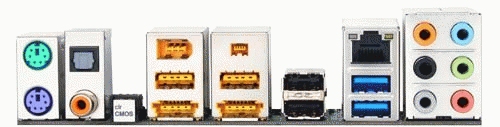

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Power source type | ATX |
| Compatible operating systems | Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 4 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| PCI Express power connectors (6-pin) | Yes |
| Floppy disk drive connector | Yes |
