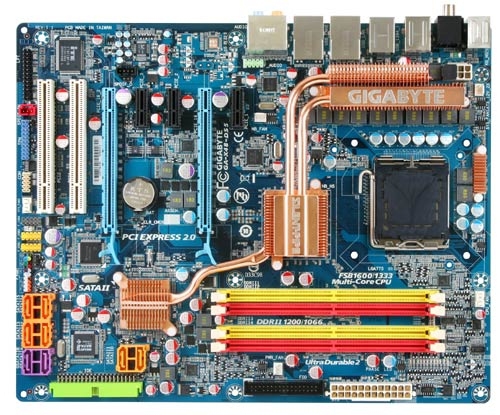

GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX
Model GA-X48-DS5EAN 818313005175
77 specifications
- Processor manufacturerIntel
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesSATA II
- Parallel processing technology support2-Way CrossFireX
- USB 2.0 connectors2
- USB 2.0 ports quantity8
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- SATA II
- Parallel processing technology support
- 2-Way CrossFireX
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X48-DS5
- Part number
- GA-X48-DS5
- EAN / UPC
- 818313005175, 4719331849139
- Also known as
- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX
Specifications
77 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® 4 Extreme Edition, Intel® Pentium® D, Intel® Pentium® Extreme Edition |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 800,1066,1333,1600 MHz |
| Supported processor sockets | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.8 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 667,800,1066,1200 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA II |
| RAID levels | 1, 5, 10, JBOD |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 2-Way CrossFireX |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 8 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® X48 |
| Motherboard southbridge | Intel ICH9R |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 (Gen 2.x) slots | 2 |
| PCI slots | 2 |
| Expansion slots | 2 x PCIE 2.0 x16 3 x PCIE x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Floppy disk drive connector | Yes |
| Parallel port via internal header | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsGIGABYTE GA-X48T-DQ6 motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsGIGABYTE GA-MA78GM-S2H motherboard AMDCompare specs

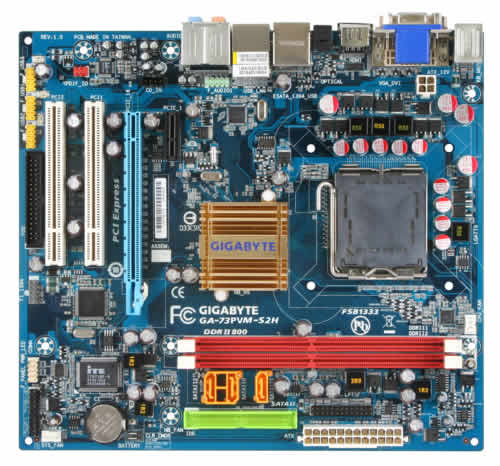

- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsGIGABYTE GA-73PVM-S2H motherboard LGA 775 (Socket T) micro ATXCompare specs

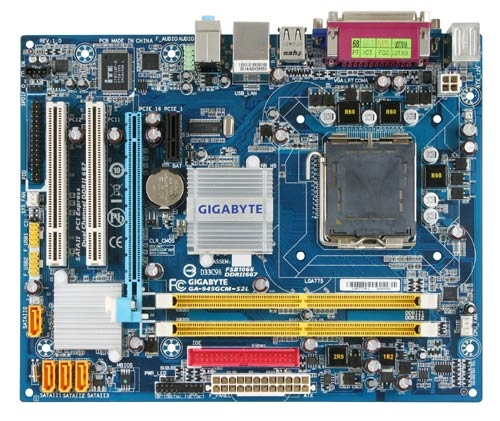

- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsGIGABYTE GA-945GCM-S2L motherboard LGA 775 (Socket T) micro ATXCompare specs

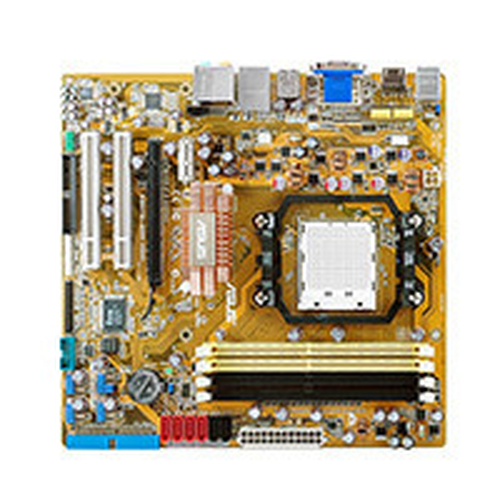

- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsASUS M3N78-EMH HDMICompare specs

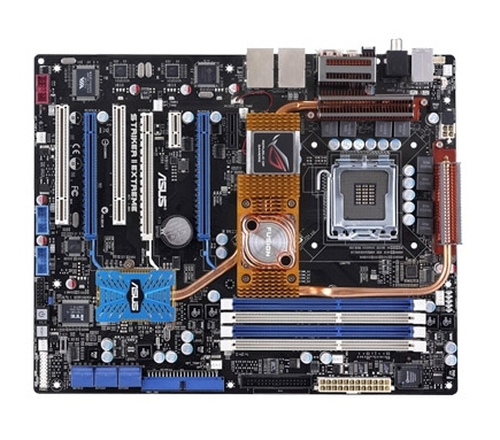

- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsASUS Striker II ExtremeCompare specs

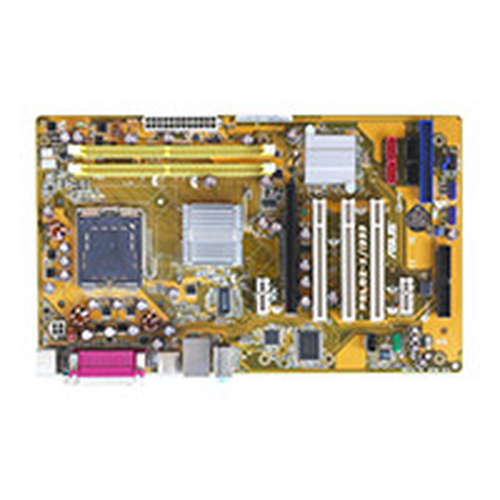

- GIGABYTE GA-X48-DS5 motherboard Intel® X48 LGA 775 (Socket T) ATX vsASUS P5LD2-X LGA 775 (Socket T) ATXCompare specs
