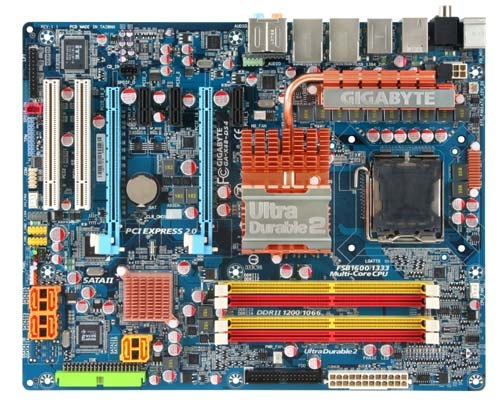

GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX
Model GA-X48-DS4EAN 818313005625
35 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors2
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111B
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111B
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X48-DS4
- Part number
- GA-X48-DS4
- EAN / UPC
- 818313005625, 4719331813116
- Also known as
- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron® |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCIE 2.0 x16 3 x PCIE x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8718 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-MA78G-DS3H motherboard AMDCompare specs

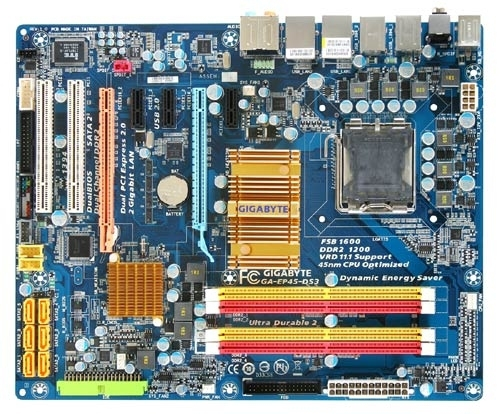

- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EP45-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-3CCWL-RH motherboard NVIDIA MCP55 Pro Socket F (1207) SSI CEBCompare specs
- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-EX38-DQ6 Socket 774 ATXCompare specs

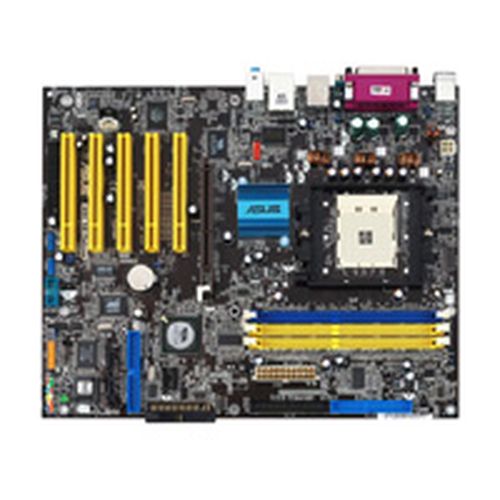

- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX vsASUS K8V SE DeluxeCompare specs

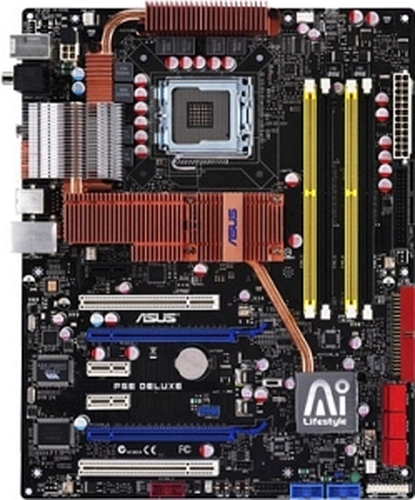

- GIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATX vsASUS P5E DeluxeCompare specs
