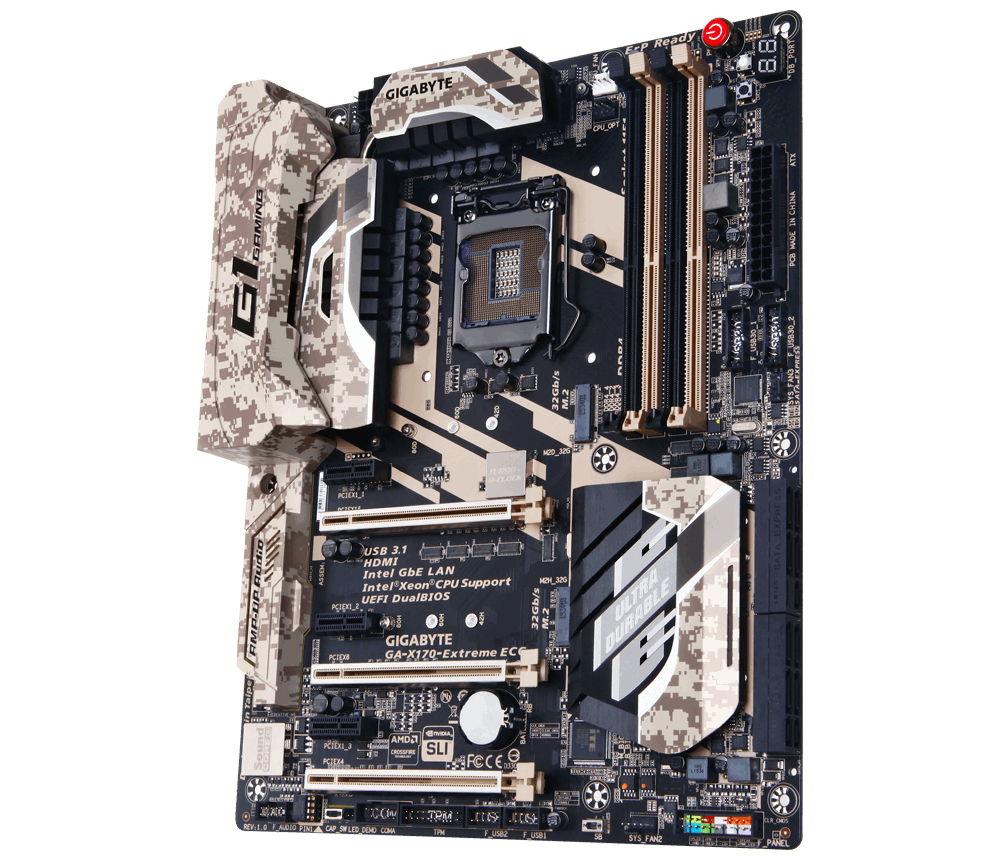

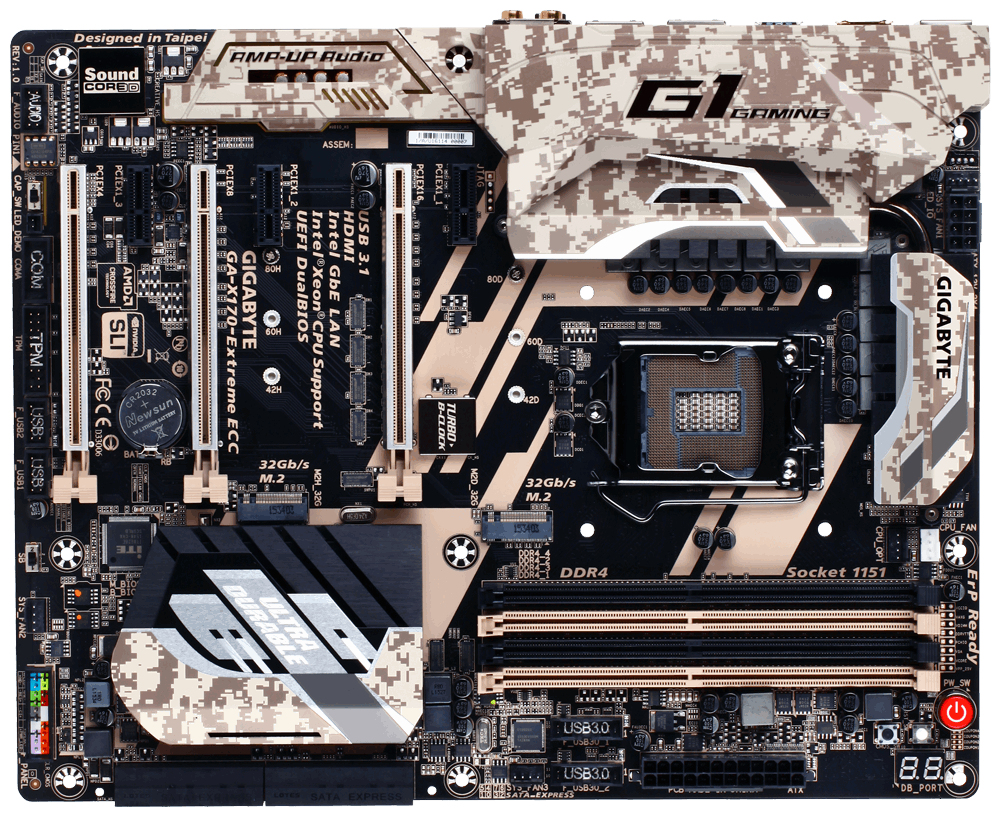

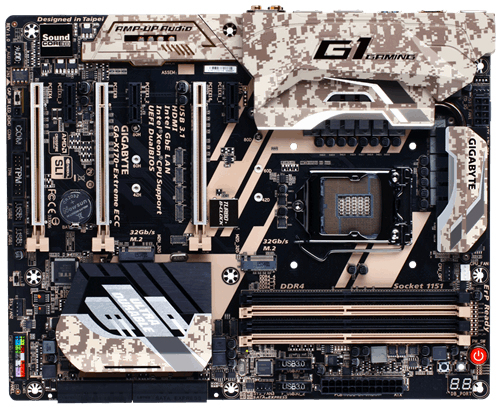

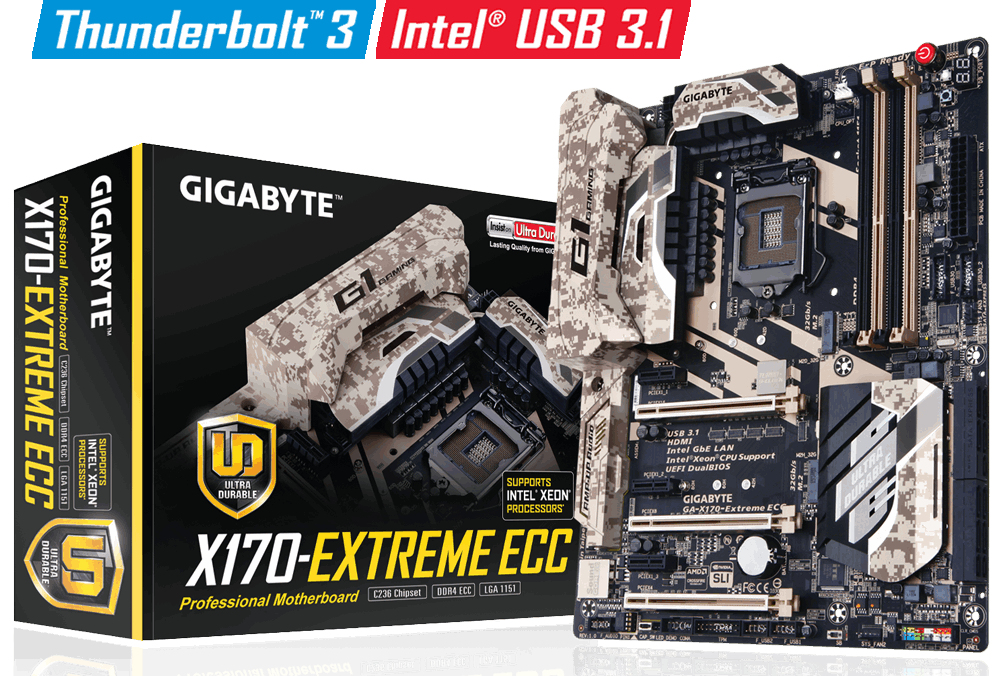

GIGABYTE GA-X170-EXTREME ECC (rev. 1.0)
Model GA-X170-EXTREME ECC (rev. 1.0)Part no. GA-X170-EXTREME ECCEAN 889523004852
62 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesSATA
- Maximum graphics card memory512 MB
- USB 2.0 connectors2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- SATA
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 5
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-X170-EXTREME ECC (rev. 1.0)
- Part number
- GA-X170-EXTREME ECC
- EAN / UPC
- 889523004852, 4719331810412
- Also known as
- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) Intel® C236 ATX
Specifications
62 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX |
| Graphics card family | AMD, Intel, NVIDIA |
| Graphics card | HD Graphics |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 8 |
| Number of SATA Express connectors | 3 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |

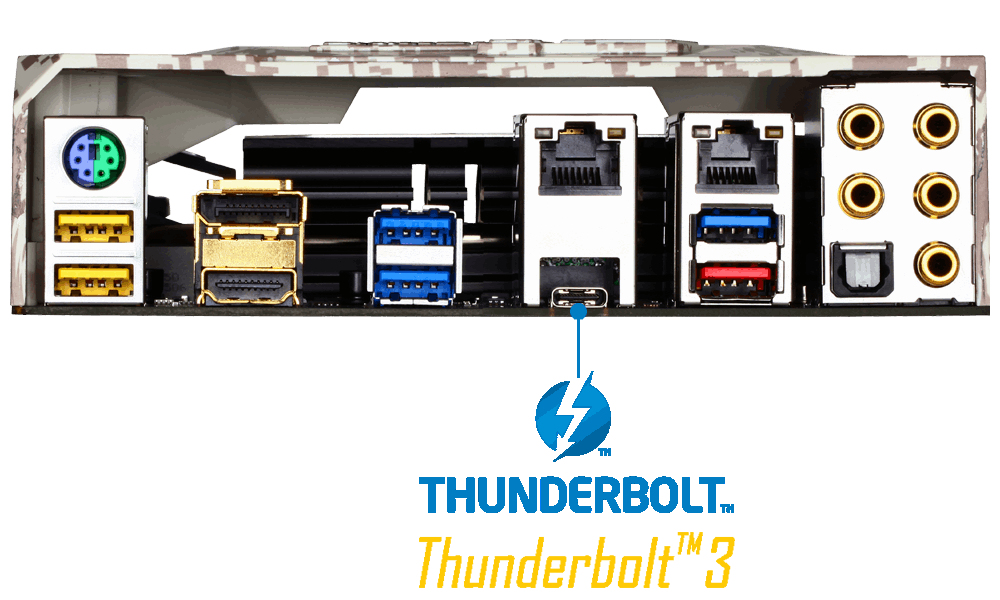

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Atheros Killer E2400 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C236 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Window |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x4 slots | 1 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton® Internet Security (OEM version), Intel® Smart Response Technology (Olny for iRST mode) |
Other features
| Specification | Value |
|---|---|
| BIOS switch button | Yes |
| Other features | @BIOS, ON/OFF Charge, Q-Flash, Smart Switch, Xpress Install |
What people say
Reviews & ratings
GIGABYTE GA-X170-EXTREME ECC (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-X170-EXTREME ECC (rev. 1.0)
All motherboard comparisons- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsGIGABYTE GA-X99-UD5WIFI motherboard Intel® X99 LGA 2011-v3 Extended ATXCompare specs
- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsGIGABYTE GA-F2A88XM-DS2P (rev. 1.0)Compare specs
- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsGIGABYTE GA-F2A88XM-D3HP motherboard A88X Socket FM2+ micro ATXCompare specs

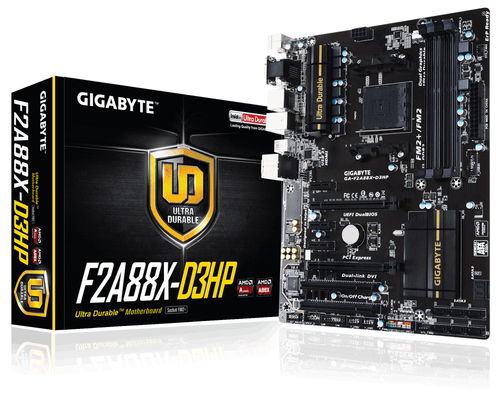

- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsGIGABYTE GA-F2A88X-D3HP (rev. 1.0)Compare specs
- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsASUS B150I PRO GAMING/WIFI/AURACompare specs
- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsFujitsu D3243-S motherboard Intel® Q87 LGA 1150 (Socket H3) mini ITXCompare specs
- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsASUS N3050T motherboard mini ITXCompare specs

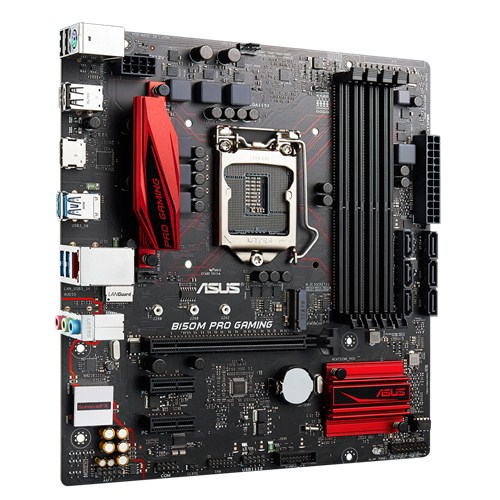

- GIGABYTE GA-X170-EXTREME ECC (rev. 1.0) vsASUS B150M PRO GAMINGCompare specs
