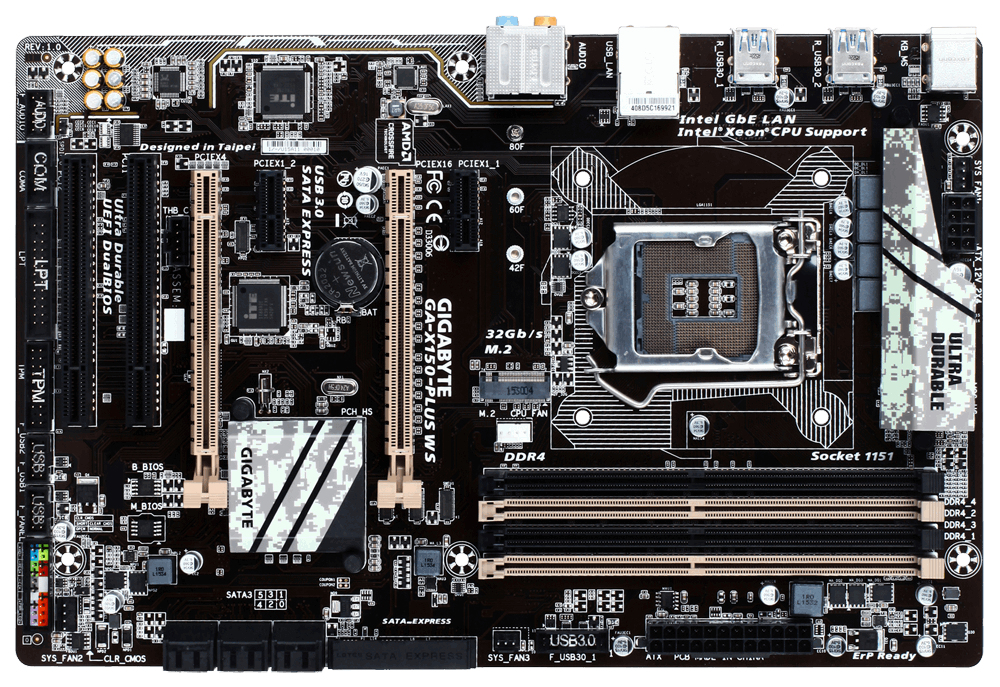

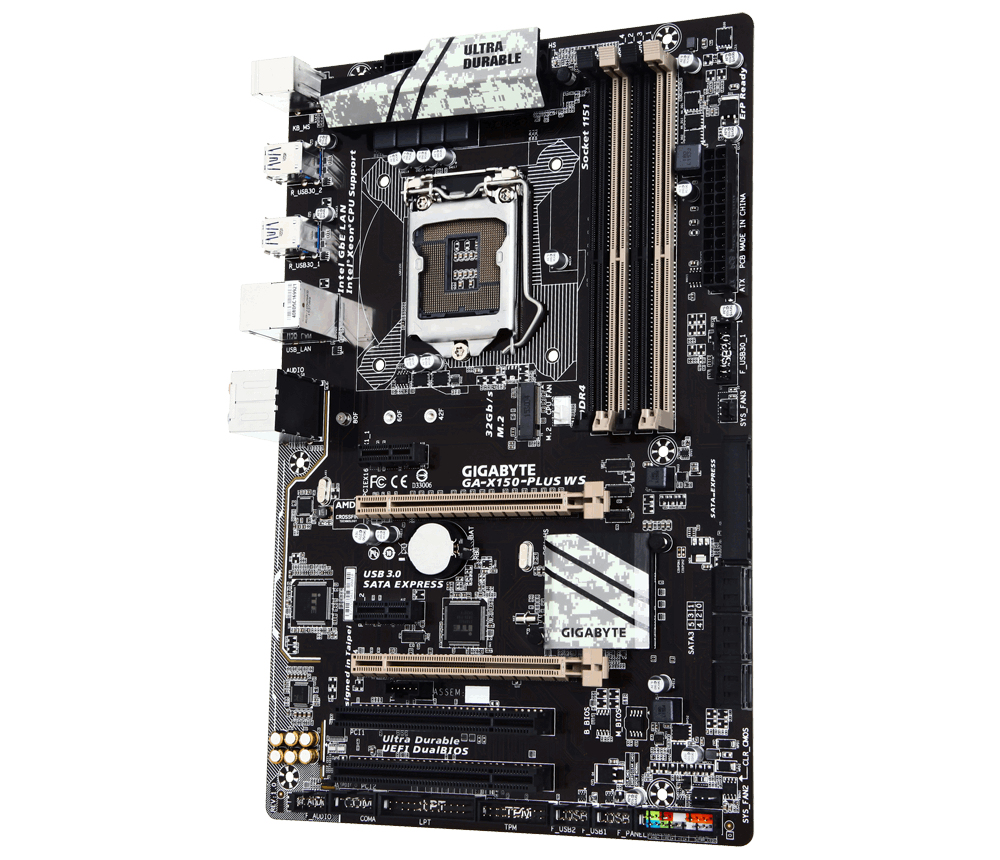

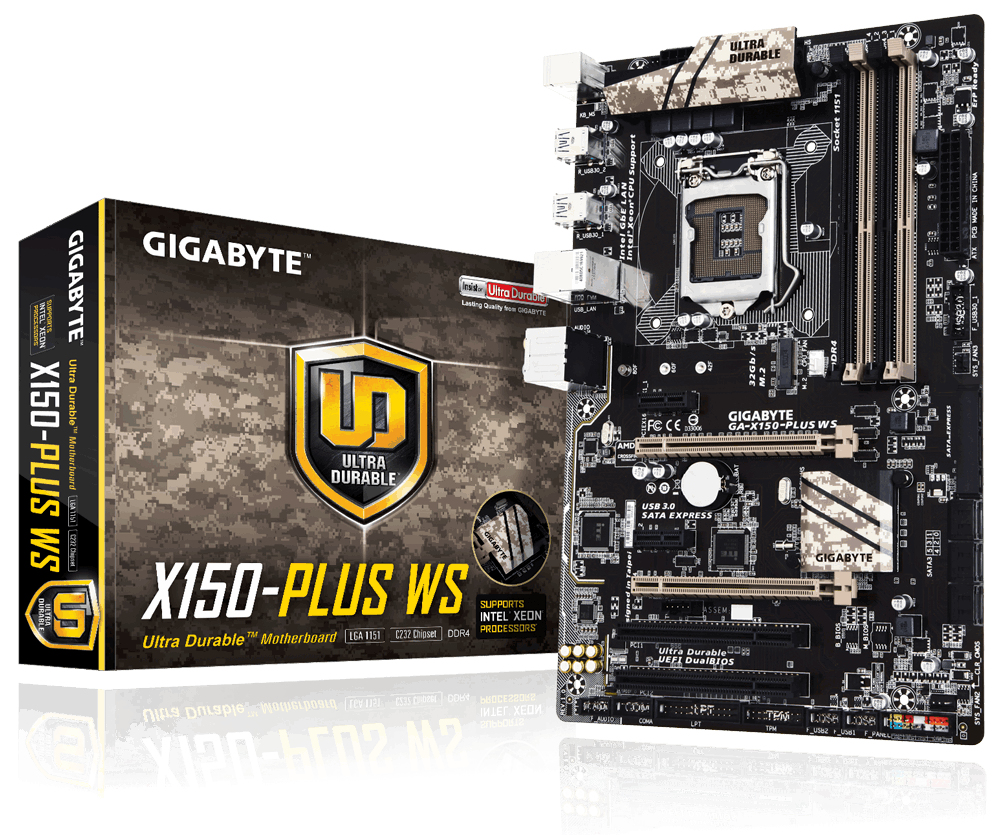

GIGABYTE GA-X150-PLUS WS

GIGABYTE GA-X150-PLUS WS

Model GA-X150-PLUS WSEAN 889523003770

63 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • Ethernet LANYes
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
Ethernet LAN
Yes
Brand
GIGABYTE
Category
Motherboard
Model
GA-X150-PLUS WS
Part numbers
GA-X150-PLUS WS, GA-X150-PLUS WS-R1
EAN / UPC
889523003770, 4719331845346
Also known as
GIGABYTE GA-X150-PLUS WS motherboard Intel® C232 LGA 1151 (Socket H4) ATX

Specifications

63 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133 MHz

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Number of SATA II connectors0
Number of SATA Express connectors1
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
EPS power connector (8-pin)Yes
Parallel connectorYes
Serial port headers1
TPM connectorYes
Thunderbolt headers1

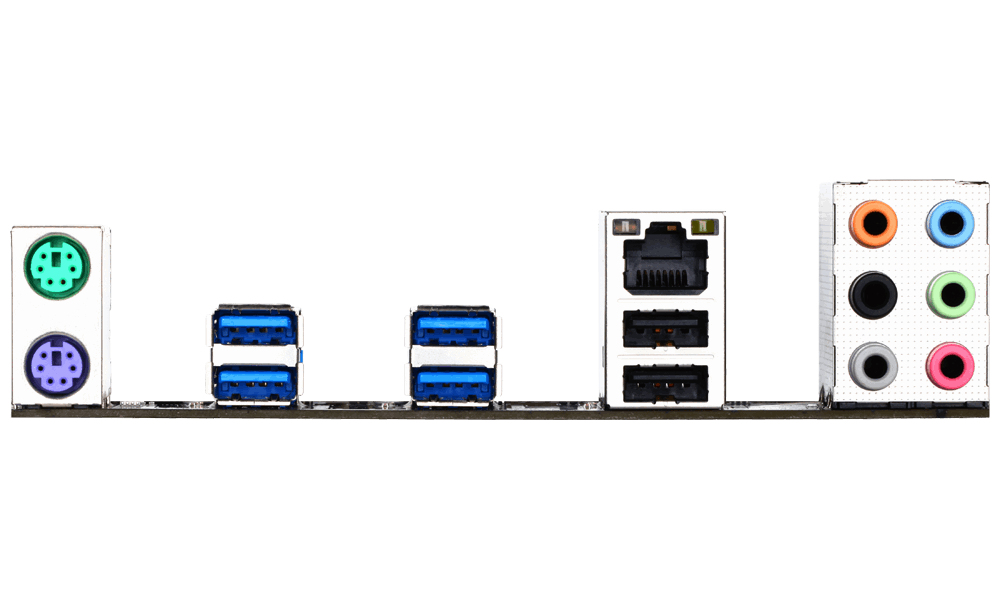

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® C232
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2
PCI slots2
Number of M.2 (M) slots1

BIOS

BIOS typeEFI AMI
BIOS memory size16 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth200 mm

Packaging content

Bundled softwareNorton Internet Security (OEM version) cFosSpeed

Other features

GAME/MIDI connectorYes
