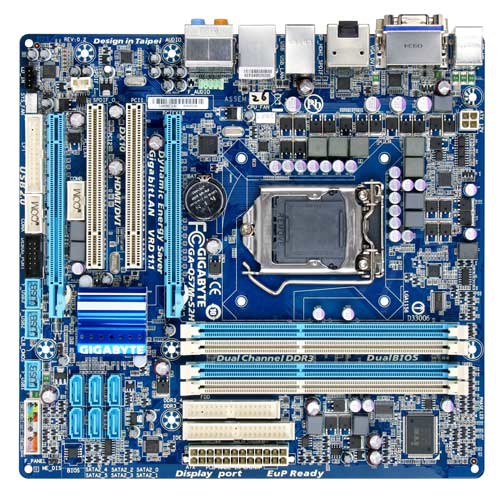

GIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATX
Model GA-Q57M-S2HEAN 4719331810245
39 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors12
- USB 2.0 ports quantity6
- Networking features10/100/1000 Mbit
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 12
- USB 2.0 ports quantity
- 6
- Networking features
- 10/100/1000 Mbit
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Q57M-S2H
- Part numbers
- GA-Q57M-S2H, GA-Q57M-S2H-R1
- EAN / UPC
- 4719331810245
- Also known as
- GIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATX
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 12 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

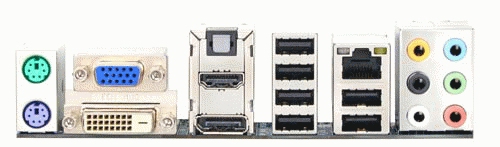

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 2 |
| Expansion slots | 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 232 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATX

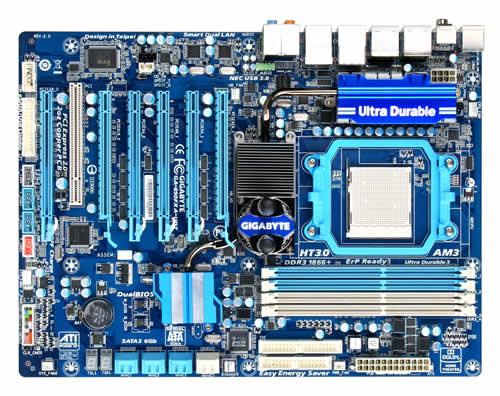

All motherboard comparisons- GIGABYTE GA-Q57M-S2H motherboard LGA 1156 (Socket H) micro ATX vsGIGABYTE GA-890FXA-UD5 motherboard AMD 890FX Socket AM3 ATXCompare specs
