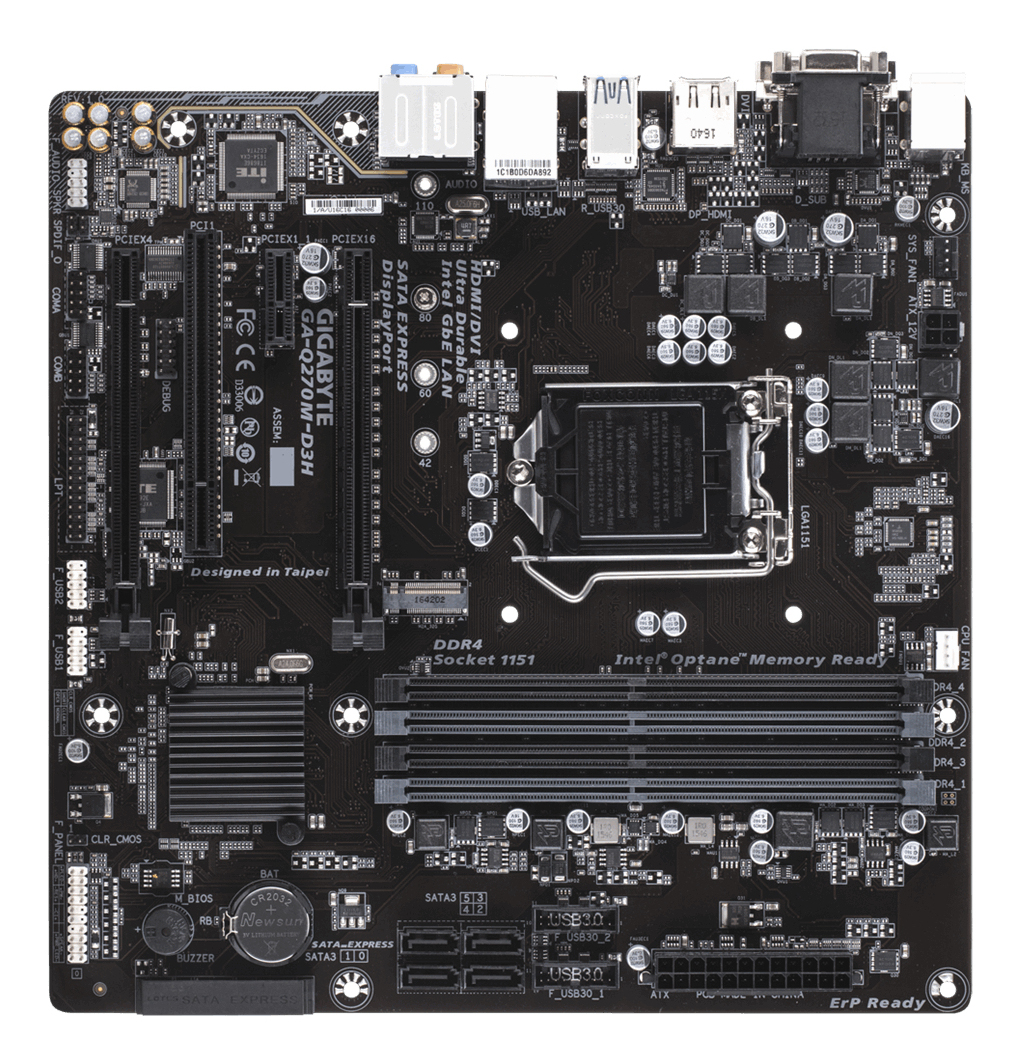

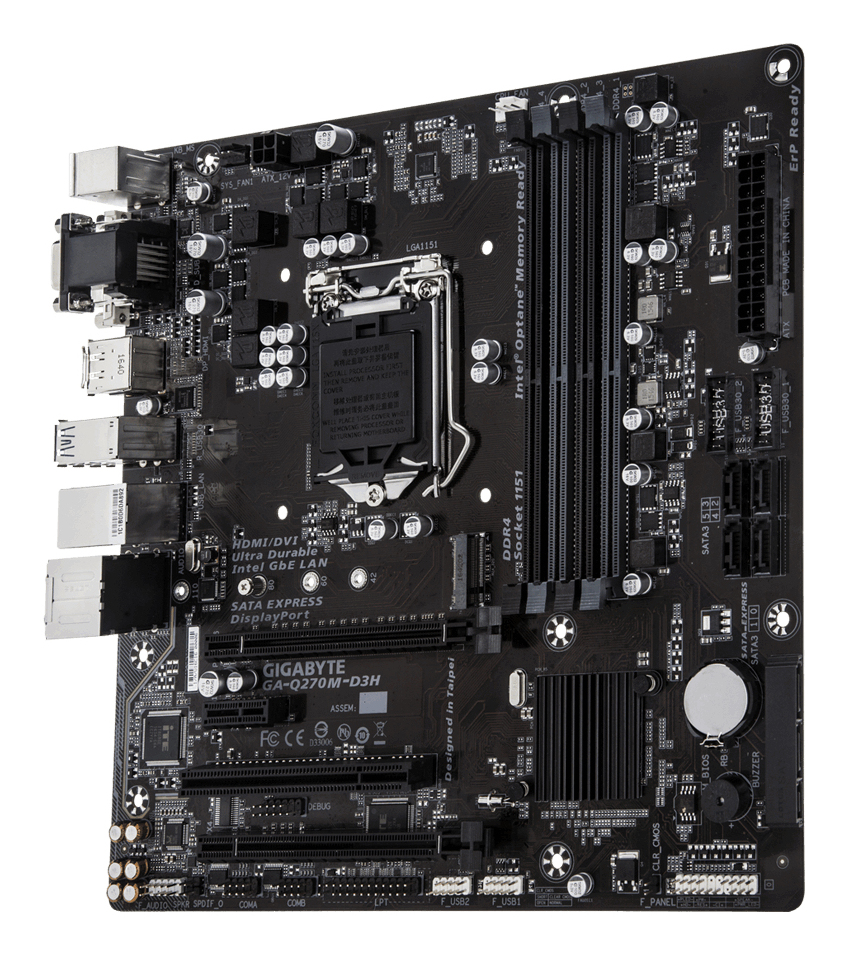

GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX
Model GA-Q270M-D3HEAN 889523009024
67 specifications
- Processor manufacturerIntel
- Supported memory typesDDR4-SDRAM
- Supported storage drive typesHDD & SSD
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR4-SDRAM
- Supported storage drive types
- HDD & SSD
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-Q270M-D3H
- Part number
- GA-Q270M-D3H
- EAN / UPC
- 889523009024, 4719331849290
- Also known as
- GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX
Specifications
67 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400 MHz |
| Maximum internal memory | 64 GB |
| Supported memory module capacities | 4GB, 8GB, 16GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA Express connectors | 1 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Serial port headers | 2 |

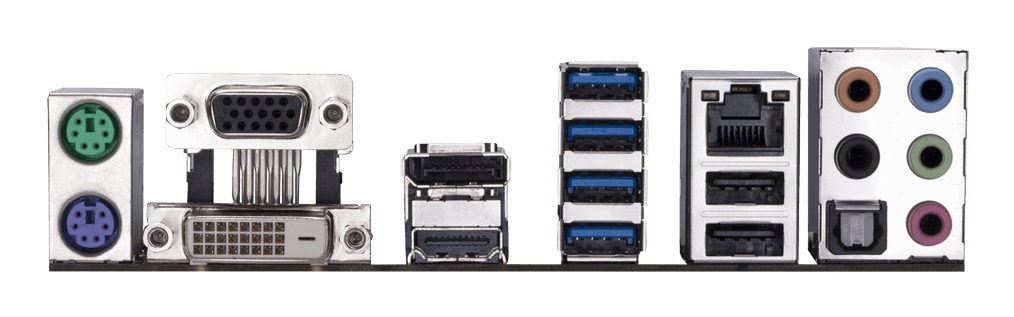

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® Q270 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Parallel port via internal header | Yes |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX
All motherboard comparisons- GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z270MX-GAMING 5Compare specs
- GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-H270M-D3H motherboard Intel® H270 LGA 1151 (Socket H4) micro ATXCompare specs

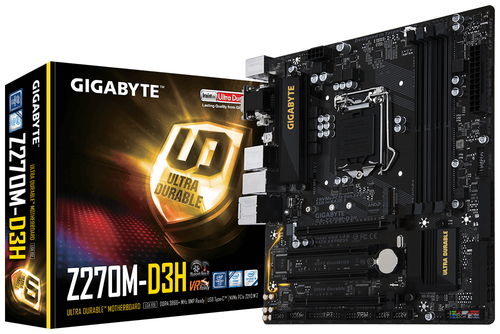

- GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z270M-D3P motherboard Intel® Z270 LGA 1151 (Socket H4) micro ATXCompare specs
- GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX vsGIGABYTE GA-Z270-HD3P motherboard Intel® Z270 LGA 1151 (Socket H4) ATXCompare specs

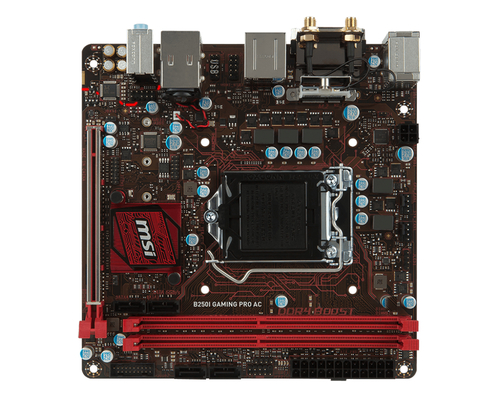

- GIGABYTE GA-Q270M-D3H motherboard Intel® Q270 LGA 1151 (Socket H4) ATX vsMSI B250I GAMING PRO ACCompare specs
