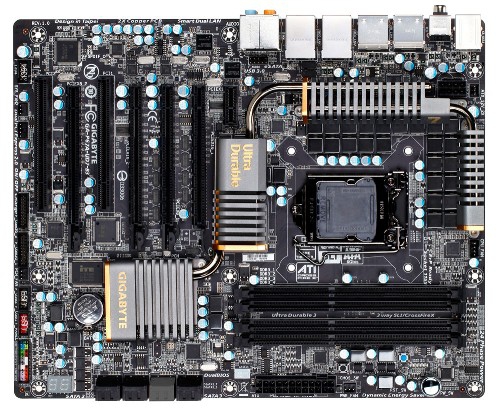

GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX
Model GA-P67A-UD7-B3EAN 818313012272
56 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10
- Parallel processing technology support3-Way SLI, Quad-GPU CrossFireX
- USB 2.0 connectors2
- Ethernet interface typeGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10
- Parallel processing technology support
- 3-Way SLI, Quad-GPU CrossFireX
- USB 2.0 connectors
- 2
- Ethernet interface type
- Gigabit Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P67A-UD7-B3
- Part number
- GA-P67A-UD7-B3
- EAN / UPC
- 818313012272, 4719331807313
- Also known as
- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX
Specifications
56 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| System bus rate | 5 GT/s |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1200,1300,1333,1600,1800,1866,2133 MHz |
| Maximum internal memory | 32 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | 3-Way SLI, Quad-GPU CrossFireX |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | 10/100/1000 Mbit/sec |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7, Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 4 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 32 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
What people say
Reviews & ratings
GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX

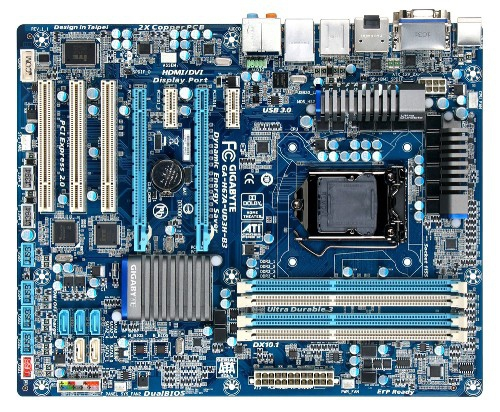

All motherboard comparisons- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX vsGIGABYTE GA-H67A-UD3H-B3 motherboard LGA 1155 (Socket H2) ATXCompare specs

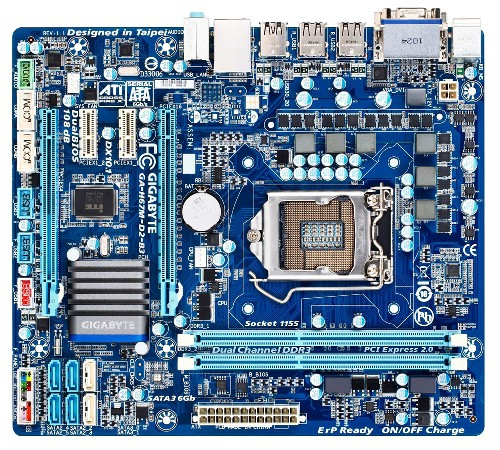

- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX vsGIGABYTE GA-H67M-D2-B3 motherboard LGA 1155 (Socket H2) micro ATXCompare specs
- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX vsGIGABYTE GA-PH67A-UD3-B3 motherboard LGA 1155 (Socket H2) ATXCompare specs
- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX vsGIGABYTE GA-P67A-UD4-B3 motherboard LGA 1155 (Socket H2) ATXCompare specs

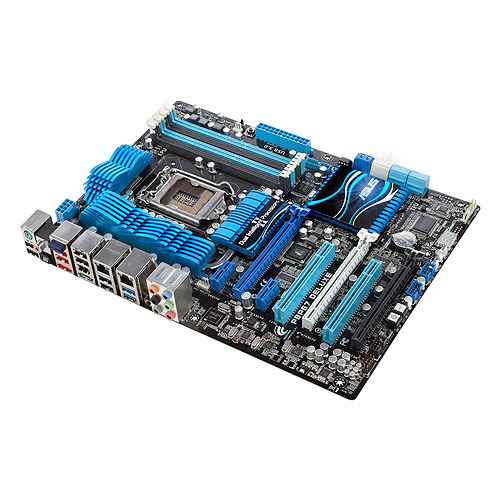

- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX vsASUS P8P67 DELUXE Rev.3.0Compare specs

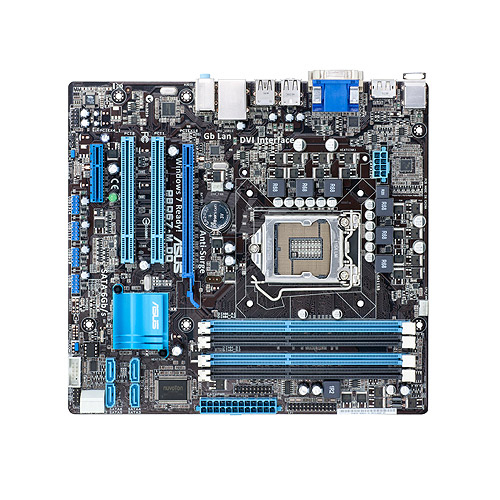

- GIGABYTE GA-P67A-UD7-B3 motherboard LGA 1155 (Socket H2) ATX vsASUS P8Q67-M DO R3Compare specs
