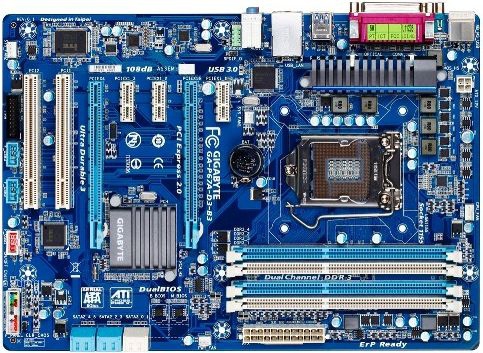

GIGABYTE GA-P67A-D3-B3 motherboard Intel® P67 LGA 1155 (Socket H2) ATX

GIGABYTE GA-P67A-D3-B3 motherboard Intel® P67 LGA 1155 (Socket H2) ATX

Model GA-P67A-D3-B3EAN 818313012371

57 specifications
  • Processor manufacturerIntel
  • Number of memory slots4
  • RAID levels0, 1, 5, 10
  • On-board graphics cardNo
  • USB 2.0 connectors3
  • Ethernet interface typeGigabit Ethernet
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
4
RAID levels
0, 1, 5, 10
On-board graphics card
No
USB 2.0 connectors
3
Ethernet interface type
Gigabit Ethernet
Brand
GIGABYTE
Category
Motherboard
Model
GA-P67A-D3-B3
Part numbers
GA-P67A-D3-B3, GA-P67A-D3-B3-R1
EAN / UPC
818313012371, 4719331811198
Also known as
GIGABYTE GA-P67A-D3-B3 motherboard Intel® P67 LGA 1155 (Socket H2) ATX

Specifications

57 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Maximum number of SMP processors1

Memory

Number of memory slots4
Memory channelsDual-channel
Memory voltage1.5 V
Supported memory clock speeds1066,1333,1600,1866,2133 MHz
Maximum internal memory32 GB

Storage controllers

RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo

Internal I/O

USB 2.0 connectors3
Number of SATA III connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
TPM connectorYes

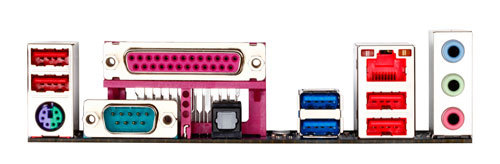

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs3
Microphone inYes
S/PDIF out portYes
Parallel ports quantity1
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111E

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel® P67
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows 7/Vista/XP

Expansion slots

PCI Express x1 slots3
PCI Express x4 slots1
PCI Express x16 slots1
PCI Express slots version2.0
PCI slots2

BIOS

BIOS typeAWARD
BIOS memory size32 Mbit
ACPI version1.0b

Weight & dimensions

Width305 mm
Depth215 mm

Packaging content

Drivers includedYes

Other features

Quick installation guideYes
