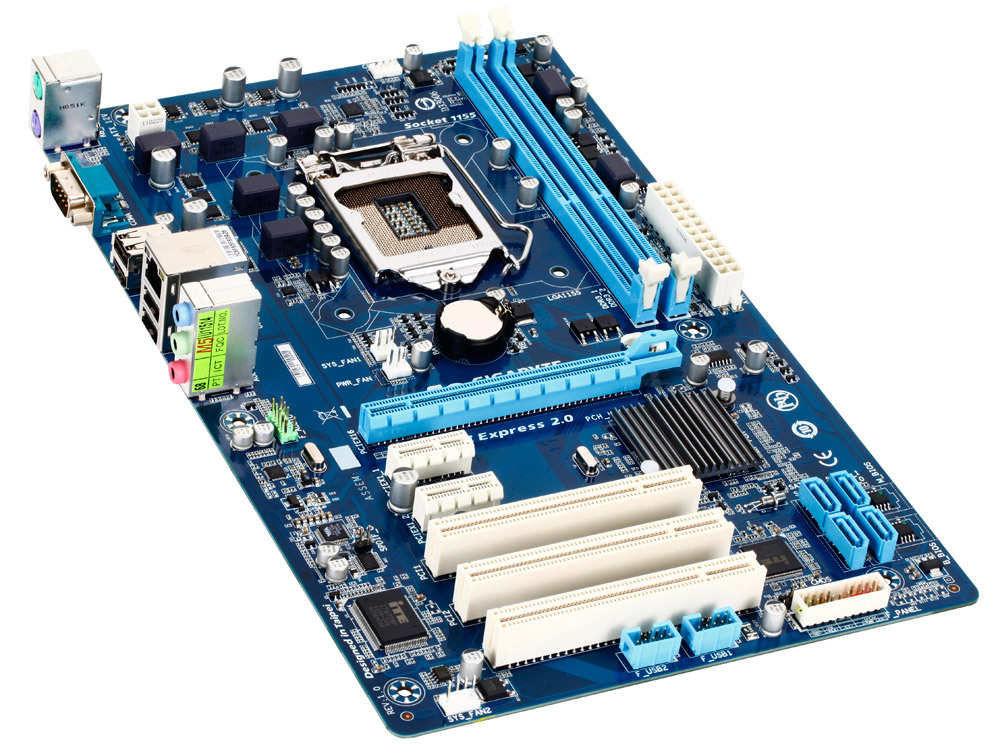

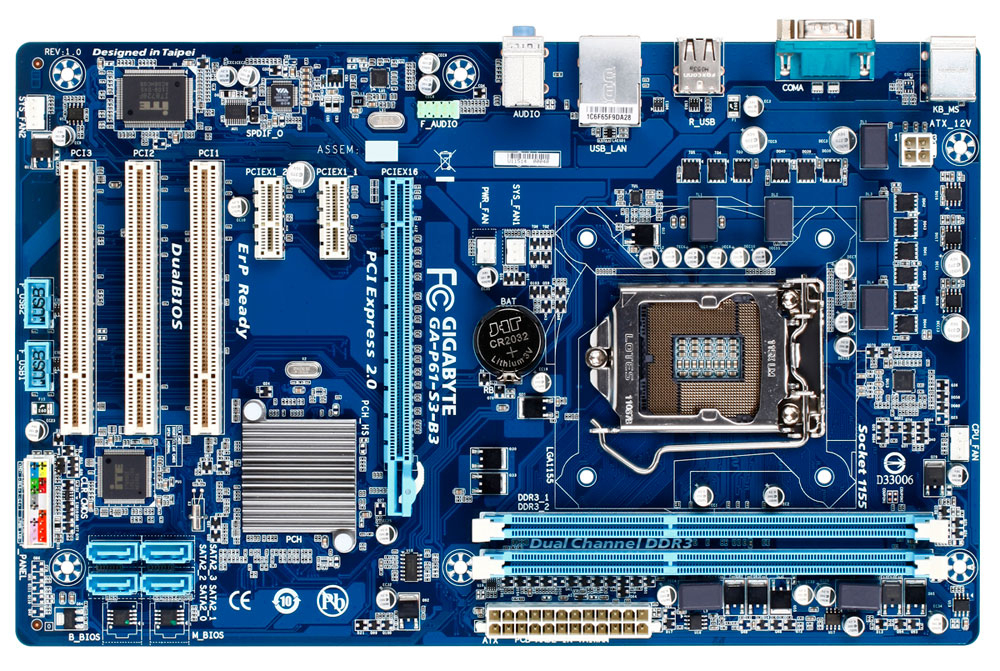

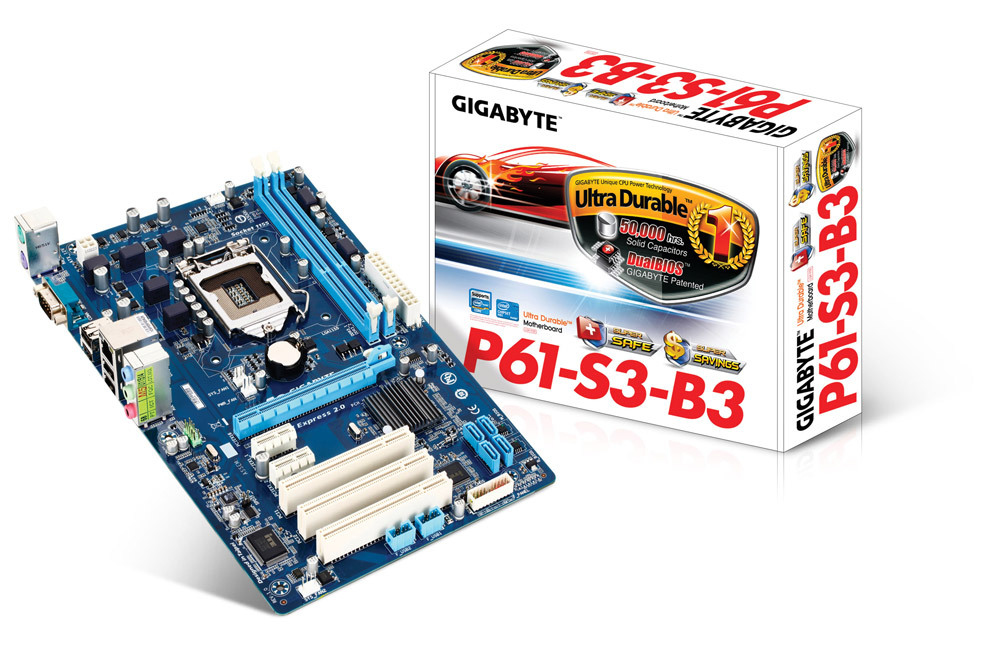

GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX

GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX

Model GA-P61-S3-B3

53 specifications
  • Processor manufacturerIntel
  • Number of memory slots2
  • Parallel processing technology supportNot supported
  • USB 2.0 ports quantity4
  • Ethernet interface typeGigabit Ethernet
  • Component forPC
See all specifications

Overview

Processor manufacturer
Intel
Number of memory slots
2
Parallel processing technology support
Not supported
USB 2.0 ports quantity
4
Ethernet interface type
Gigabit Ethernet
Component for
PC
Brand
GIGABYTE
Category
Motherboard
Model
GA-P61-S3-B3
Part numbers
GA-P61-S3-B3, GA-P61-S3-B3-R1
Also known as
GIGABYTE GA-P61-S3-B3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1155 (Socket H2)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Number of memory slots2
Memory channelsDual-channel
Memory voltage1.5 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,1333 MHz
Maximum internal memory16 GB

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo

Internal I/O

USB 2.0 connectors2
Number of SATA II connectors4
Number of Parallel ATA connectors0
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Number of chassis fan connectors2
Chassis intrusion connectorYes

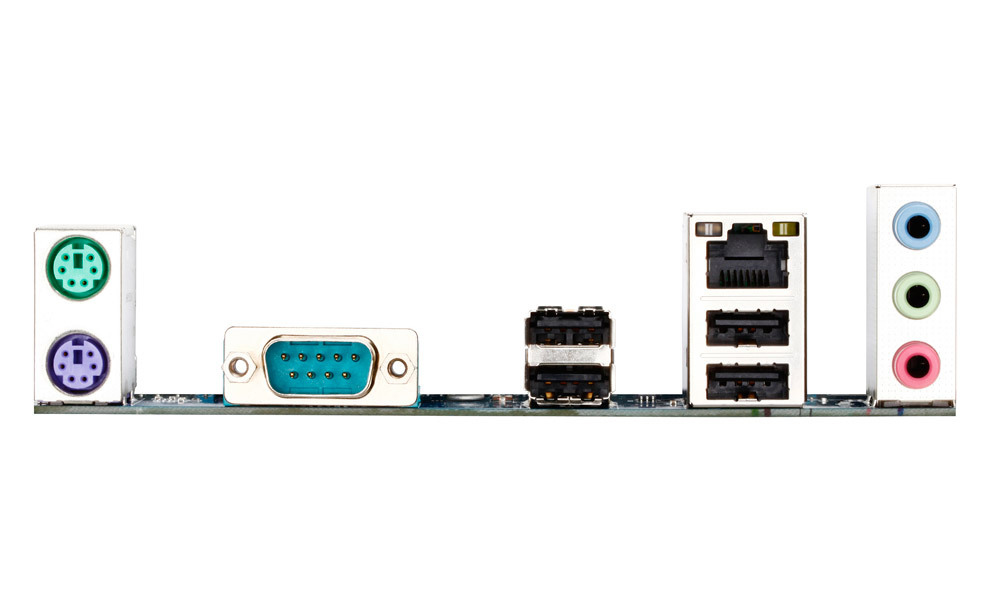

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Serial ports quantity1

Network

Ethernet interface typeGigabit Ethernet
LAN controllerAtheros AR8151

Features

Component forPC
Motherboard form factorATX
Motherboard chipsetIntel® H61
Audio chipVIA VT1708
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsMicrosoft Windows 7/Vista/XP

Expansion slots

PCI Express x1 slots2
PCI Express x16 slots1
PCI slots3

BIOS

BIOS typeAWARD
BIOS memory size64 Mbit
ACPI version1.0b

Weight & dimensions

Width305 mm
Depth190 mm

Packaging content

Bundled softwareNorton Internet Security

Other features

Controller interface typeSATA 3Gb/s
