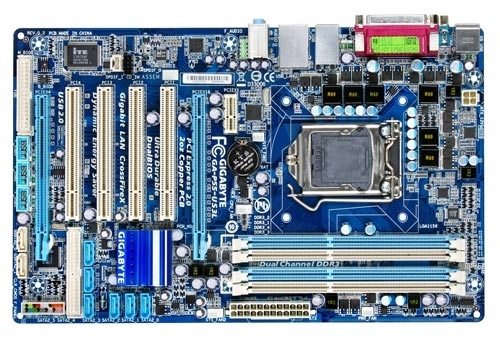

GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX
Model GA-P55-US3LPart no. P55-US3LEAN 4719331830144
46 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 10
- USB 2.0 connectors3
- USB 2.0 ports quantity8
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Networking features
- Gigabit Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P55-US3L
- Part numbers
- P55-US3L, GA-P55-US3L
- EAN / UPC
- 4719331830144, 5052217066824
- Also known as
- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX
Specifications
46 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

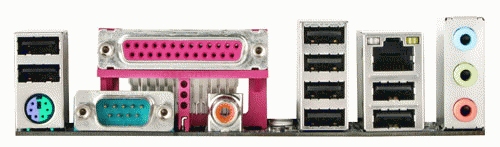

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® P55 |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Win 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 2 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 32 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Controller interface type | iTE IT8720 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX
All motherboard comparisons- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE GA-7VKML motherboard Socket A (462) micro ATXCompare specs
- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE GA-EP43T-UD3L motherboard LGA 775 (Socket T) ATXCompare specs

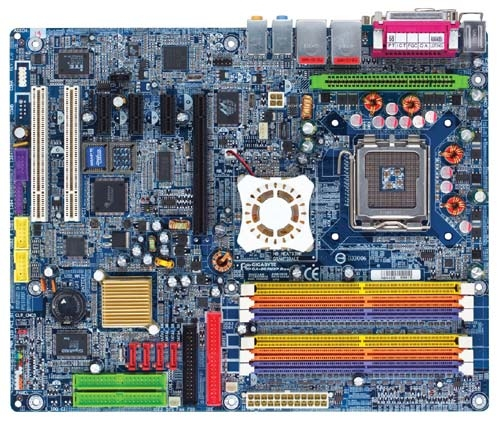

- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE GA-8GPNXP DuoCompare specs

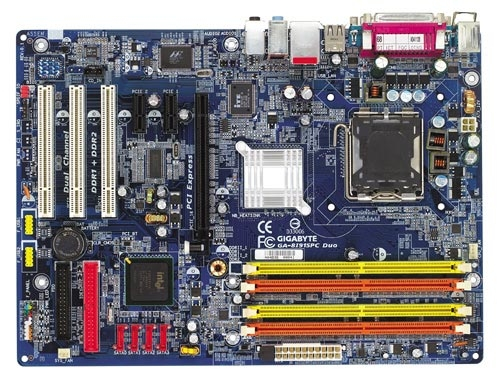

- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsGIGABYTE GA-8I915PC DuoCompare specs
- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsMSI G43M2-F LGA 775 (Socket T) micro ATXCompare specs
- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsASUS Maximus III FormulaCompare specs
- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsASUS A7V8X-MX motherboard Socket A (462) micro ATXCompare specs

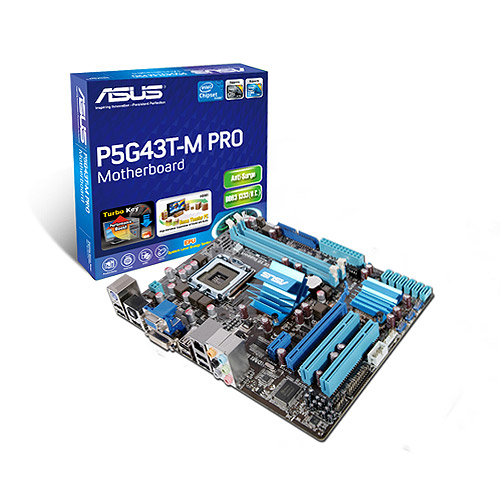

- GIGABYTE GA-P55-US3L Intel® P55 LGA 1156 (Socket H) ATX vsASUS P5G43T-M PROCompare specs
