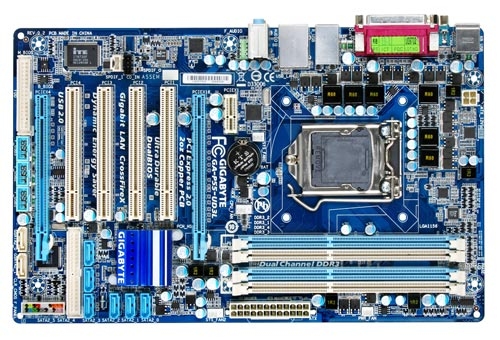

GIGABYTE GA-P55-UD3L motherboard LGA 1156 (Socket H) ATX
Model GA-P55-UD3LEAN 5055309609923
46 specifications
- Processor manufacturerIntel
- Number of memory slots4
- RAID levels0, 1, 5, 10, JBOD
- USB 2.0 connectors3
- USB 2.0 ports quantity8
- Networking features10/100 Fast Ethernet
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- RAID levels
- 0, 1, 5, 10, JBOD
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 8
- Networking features
- 10/100 Fast Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P55-UD3L
- Part number
- GA-P55-UD3L
- EAN / UPC
- 5055309609923
- Also known as
- GIGABYTE GA-P55-UD3L motherboard LGA 1156 (Socket H) ATX
Specifications
46 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 8 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/ Vista/ XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| PCI slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 32 Mbit |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 190 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Controller interface type | Intel P55 Express |
| Floppy disk drive connector | Yes |
