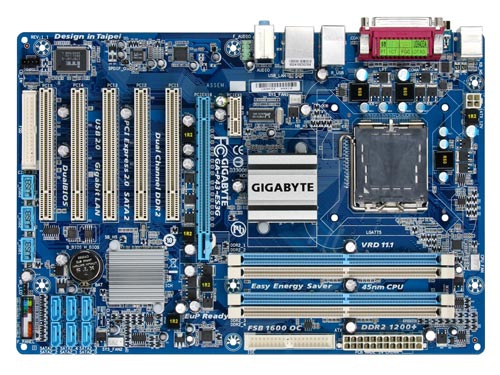

GIGABYTE GA-P43-ES3G LGA 775 (Socket T) ATX
Model GA-P43-ES3GPart no. GA-EP43-ES3G
48 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P43-ES3G
- Part number
- GA-EP43-ES3G
- Also known as
- GIGABYTE GA-P43-ES3G LGA 775 (Socket T) ATX
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 1600 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 16 GB |
| Controller type | Dual channel |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | No |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 0 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 64 Mbit |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE/SATA |
| Floppy disk drive connector | Yes |
