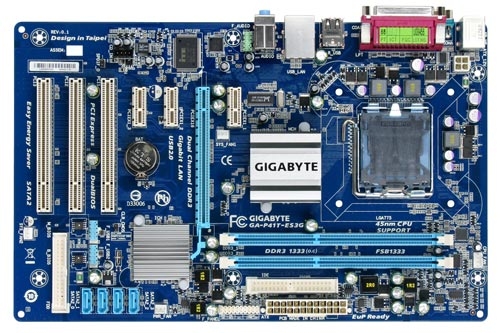

GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX
Model GA-P41T-ES3GEAN 4719331846152
45 specifications
- Processor manufacturerIntel
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking featuresGigabit Ethernet
- Motherboard form factorATX
- PCI Express x1 slots3
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 3
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P41T-ES3G
- Part number
- GA-P41T-ES3G
- EAN / UPC
- 4719331846152
- Also known as
- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX
Specifications
45 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |

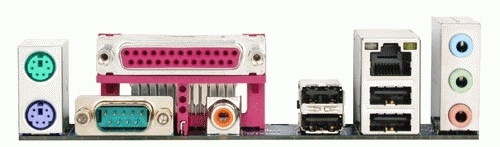

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7/Vista/XP |
| Certification | RoHS |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 194 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8718 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX

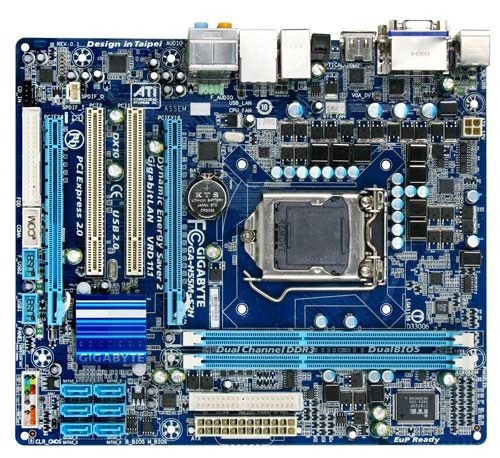

All motherboard comparisons- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-H55M-S2H motherboard LGA 1156 (Socket H) micro ATXCompare specs

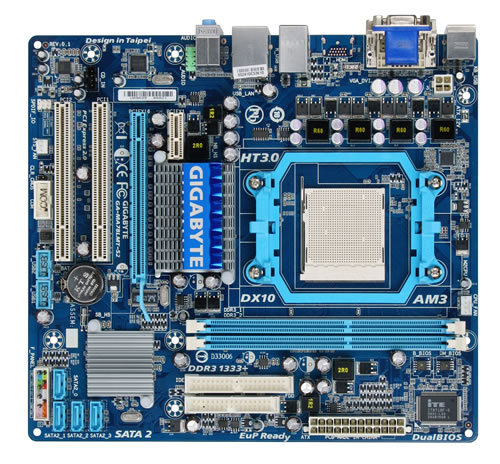

- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-MA78LMT-S2 motherboard AMDCompare specs
- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-M68M-S2P motherboard micro ATXCompare specs
- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-P43T-ES3G LGA 775 (Socket T) ATXCompare specs

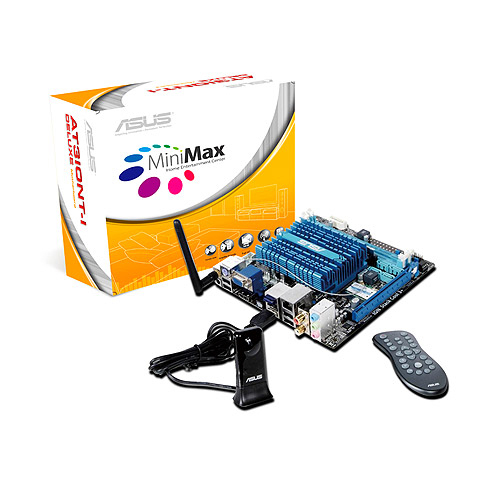

- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsASUS AT3IONT-I DeluxeCompare specs

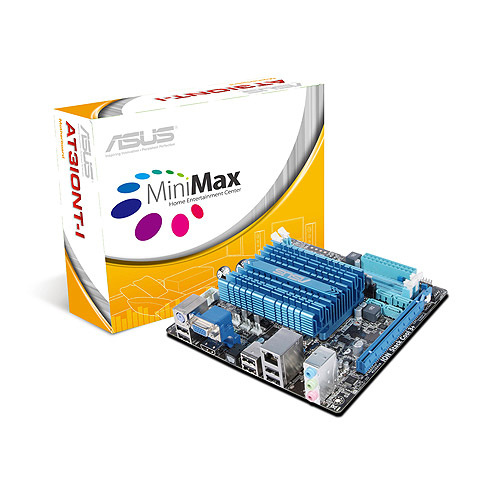

- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsASUS AT3IONT-I NA (integrated CPU) mini ITXCompare specs
- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsFujitsu D2841-A motherboard LGA 775 (Socket T) micro ATXCompare specs

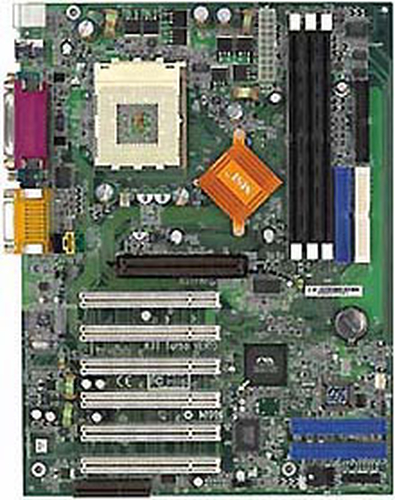

- GIGABYTE GA-P41T-ES3G motherboard LGA 775 (Socket T) ATX vsMSI K7T TurboCompare specs
