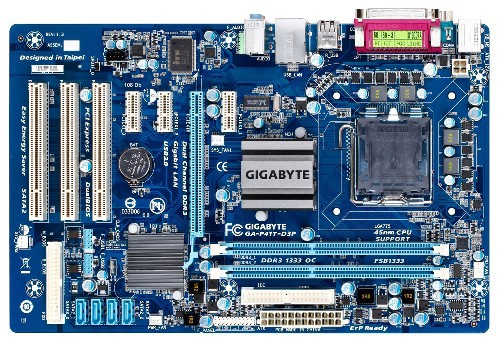

GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX
Model GA-P41T-D3PEAN 4719331801069
57 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- Ethernet interface typeGigabit Ethernet
- Component forPC
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- Ethernet interface type
- Gigabit Ethernet
- Component for
- PC
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P41T-D3P
- Part numbers
- GA-P41T-D3P, GA-P41T-D3P-R1.3
- EAN / UPC
- 4719331801069
- Also known as
- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX
Specifications
57 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Processor system buses supported | 800,1066,1333 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |

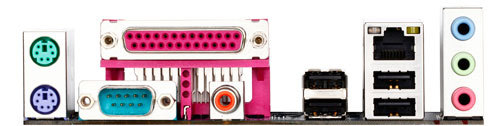

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111E |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel® G41 |
| Motherboard southbridge | Intel ICH7 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows 7, Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
| PCI slots | 3 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0b |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 194 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security OEM |
Other features
| Specification | Value |
|---|---|
| Controller interface type | iTE IT8718 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsGIGABYTE GA-H61M-D2P-B3 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATXCompare specs

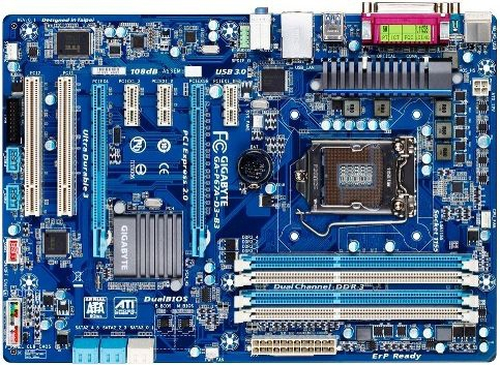

- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsGIGABYTE GA-P67A-D3-B3 motherboard Intel® P67 LGA 1155 (Socket H2) ATXCompare specs
- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsGIGABYTE G1.Guerrilla Intel® X58 Socket B (LGA 1366) ATXCompare specs
- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsGIGABYTE GA-M68MT-S2P Socket AM3 micro ATXCompare specs

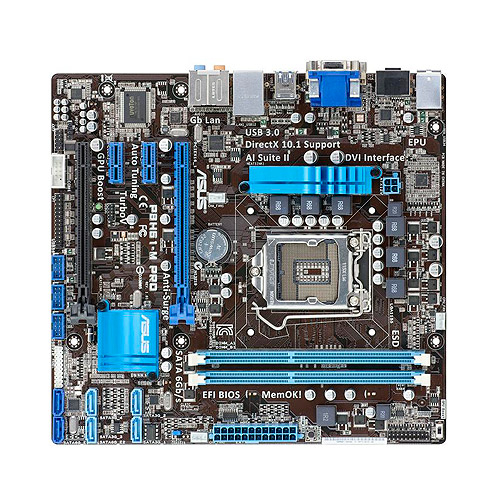

- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsASUS P8H61-M PRO R3.0Compare specs

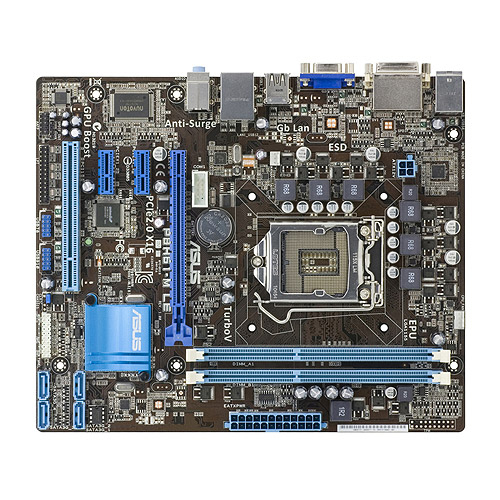

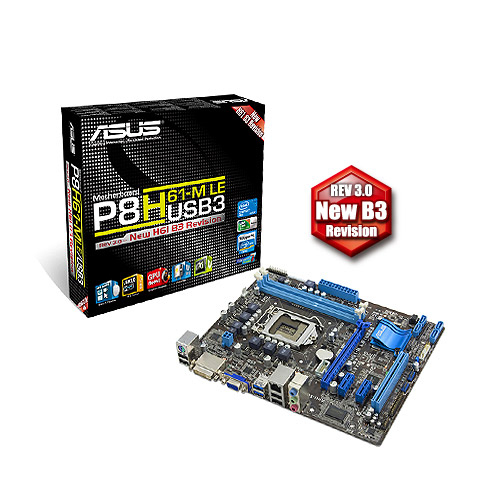

- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsASUS P8H61-M LE/USB3 B3Compare specs

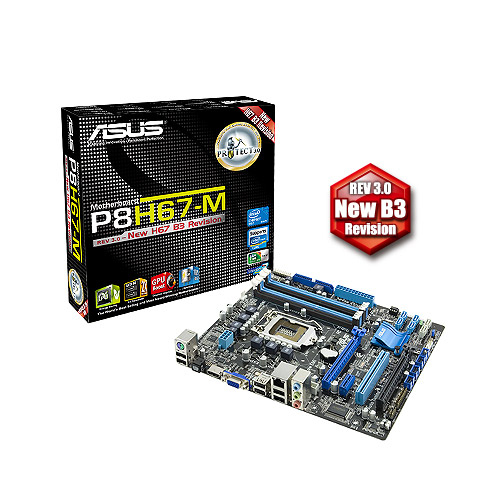

- GIGABYTE GA-P41T-D3P motherboard Intel® G41 LGA 775 (Socket T) ATX vsASUS MB P8H67-MCompare specs
