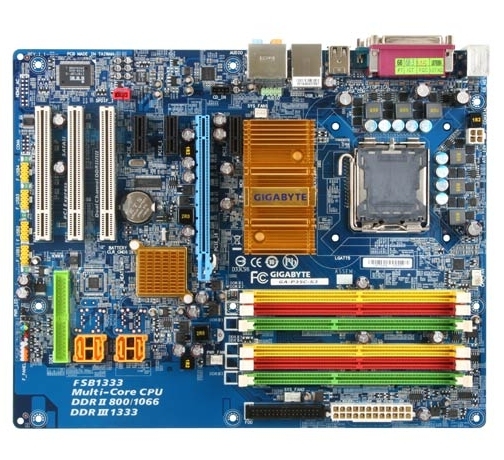

GIGABYTE GA-P35C-S3 motherboard LGA 775 (Socket T) ATX
Model GA-P35C-S3
25 specifications
- Processor manufacturerIntel
- USB 2.0 connectors4
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- USB 2.0 connectors
- 4
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P35C-S3
- Part number
- GA-P35C-S3
- Also known as
- GIGABYTE GA-P35C-S3 motherboard LGA 775 (Socket T) ATX
Specifications
25 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 8 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI Express X16 3 PCI Express X1 3 PCI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 244 |
| Floppy disk drive connector | Yes |
