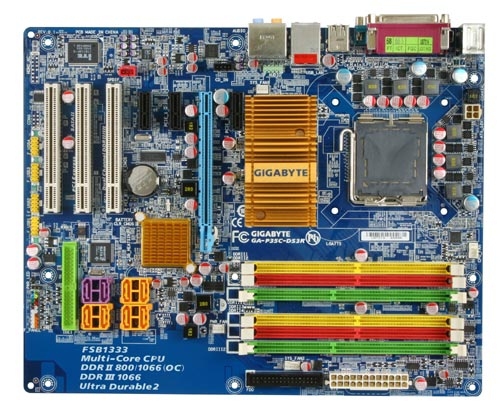

GIGABYTE GA-P35C-DS3R (rev. 1.0)
Model GA-P35C-DS3R (rev. 1.0)Part no. GA-P35C-DS3REAN 818313003386
24 specifications
- Processor manufacturerIntel
- USB 2.0 connectors4
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- Intel
- USB 2.0 connectors
- 4
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P35C-DS3R (rev. 1.0)
- Part number
- GA-P35C-DS3R
- EAN / UPC
- 818313003386, 4719331817121
- Also known as
- GIGABYTE GA-P35C-DS3R (rev. 1.0) LGA 775 (Socket T) ATX
Specifications
24 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 8 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 - PCI Express X16 3 - PCI Express X1 3 - PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
