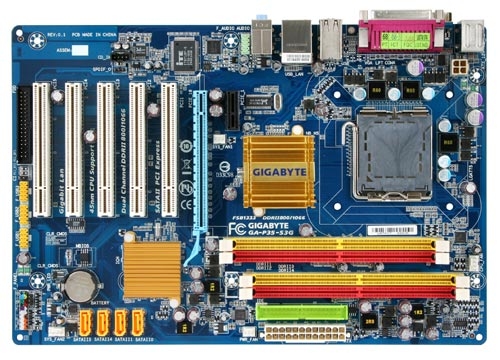

GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX
Model GA-P35-S3GEAN 818313004499
39 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-P35-S3G
- Part number
- GA-P35-S3G
- EAN / UPC
- 818313004499, 4719331845148
- Also known as
- GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX
Specifications
39 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek AL662 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 207 |
| Floppy disk drive connector | Yes |
| Graphics controller | PCI Express x16 |
What people say
Reviews & ratings
GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX
All motherboard comparisons- GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-Q35M-S2 S775, Q35, MATXCompare specs
- GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-73VM-S2 S775, NV7050, MATX, CPNTCompare specs

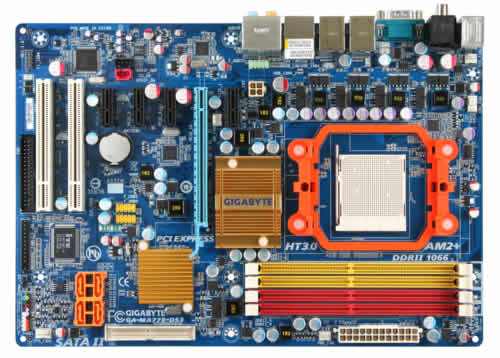

- GIGABYTE GA-P35-S3G motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-MA770-DS3 AM2 AMD770 ATXCompare specs
