GIGABYTE GA-N3160TN (rev. 1.0)
Model GA-N3160TN (rev. 1.0)Part no. GA-N3160TNEAN 4719331834258
58 specifications
- ProcessorN3160
- Processor manufacturerIntel
- Supported memory typesDDR3L-SDRAM
- Supported storage drive interfacesSATA III
- Maximum graphics card memory512 MB
- USB 2.0 connectors2
Overview
- Processor
- N3160
- Processor manufacturer
- Intel
- Supported memory types
- DDR3L-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum graphics card memory
- 512 MB
- USB 2.0 connectors
- 2
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-N3160TN (rev. 1.0)
- Part number
- GA-N3160TN
- EAN / UPC
- 4719331834258
- Also known as
- GIGABYTE GA-N3160TN (rev. 1.0) BGA 1170 mini ITX
Specifications
58 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | BGA 1170 |
| Compatible processor series | Intel® Celeron® |
| Processor model | N3160 |
| Processor cores | 4 |
| Processor thermal power (max) | 6 W |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3L-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1600 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
| Maximum resolution | 3840 x 2160 pixels |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Serial port headers | 1 |

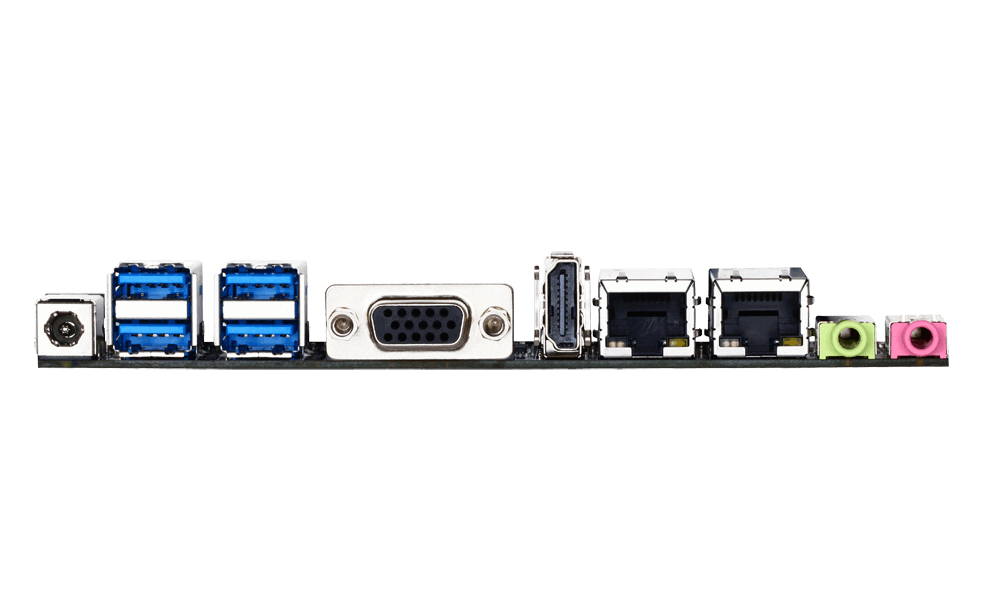

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC887 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| Mini PCI Express (Gen 2.x) slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 16 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM version) |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 1 |
| LVDS connector | Yes |
| Processor frequency | 1.6 GHz |
