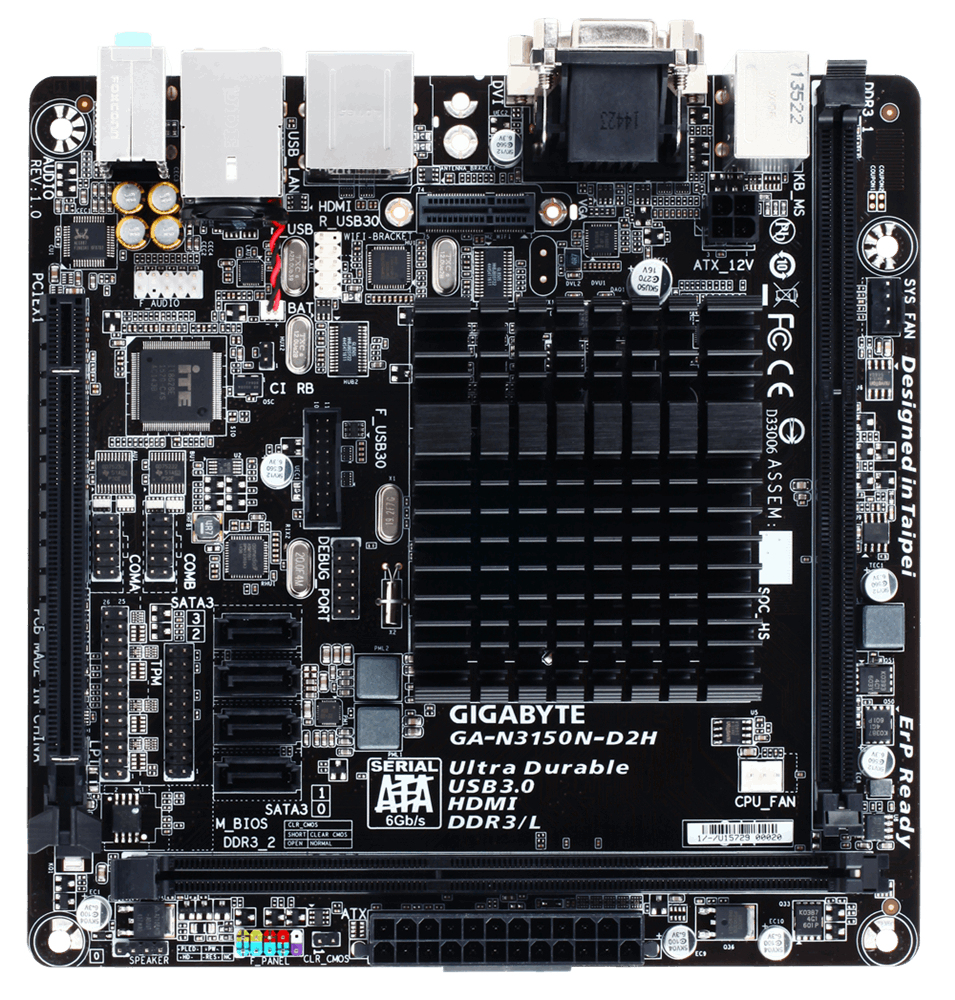

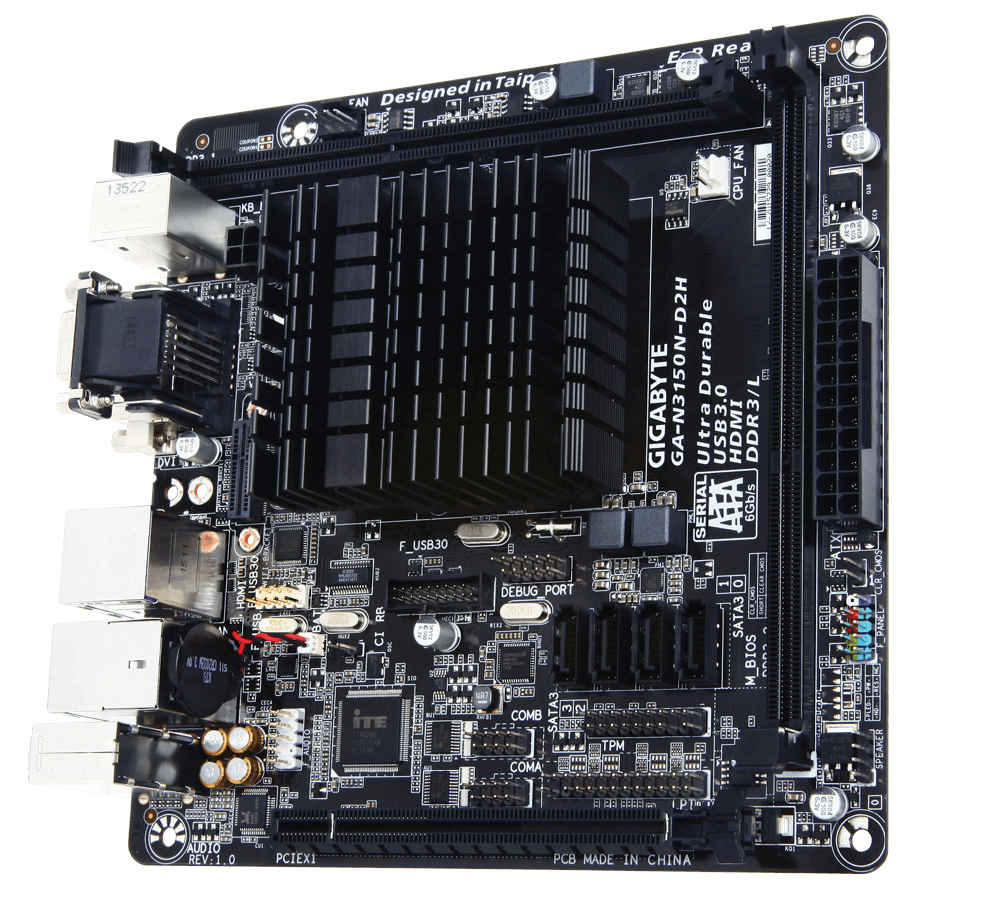

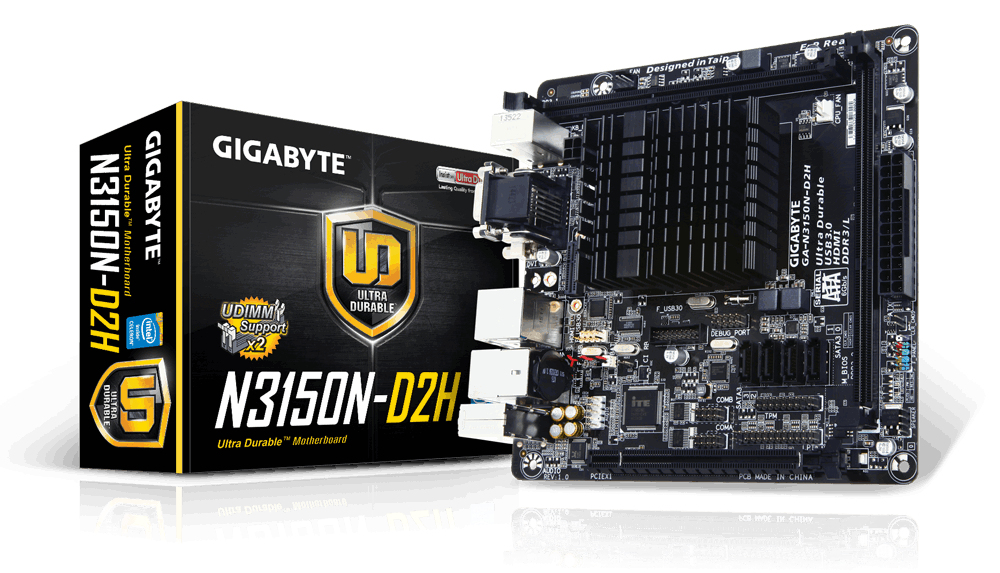

GIGABYTE GA-N3150N-D2H motherboard mini ITX

GIGABYTE GA-N3150N-D2H motherboard mini ITX

Model GA-N3150N-D2HEAN 889523003336

55 specifications
  • ProcessorN3150
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
  • USB 2.0 connectors2
  • Ethernet LANYes
  • Component forMini PC
See all specifications

Overview

Processor
N3150
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM, DDR3L-SDRAM
USB 2.0 connectors
2
Ethernet LAN
Yes
Component for
Mini PC
Brand
GIGABYTE
Category
Motherboard
Model
GA-N3150N-D2H
Part numbers
GA-N3150N-D2H, GA-N3150N-D2H-R1
EAN / UPC
889523003336, 4719331845308
Also known as
GIGABYTE GA-N3150N-D2H motherboard mini ITX

Specifications

55 specifications in 11 groups

Processor

Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®
Maximum number of SMP processors1
Processor modelN3150

Memory

Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1333,1600 MHz
Maximum internal memory16 GB
Supported memory module capacities8GB

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Parallel connectorYes
Serial port headers2
TPM connectorYes

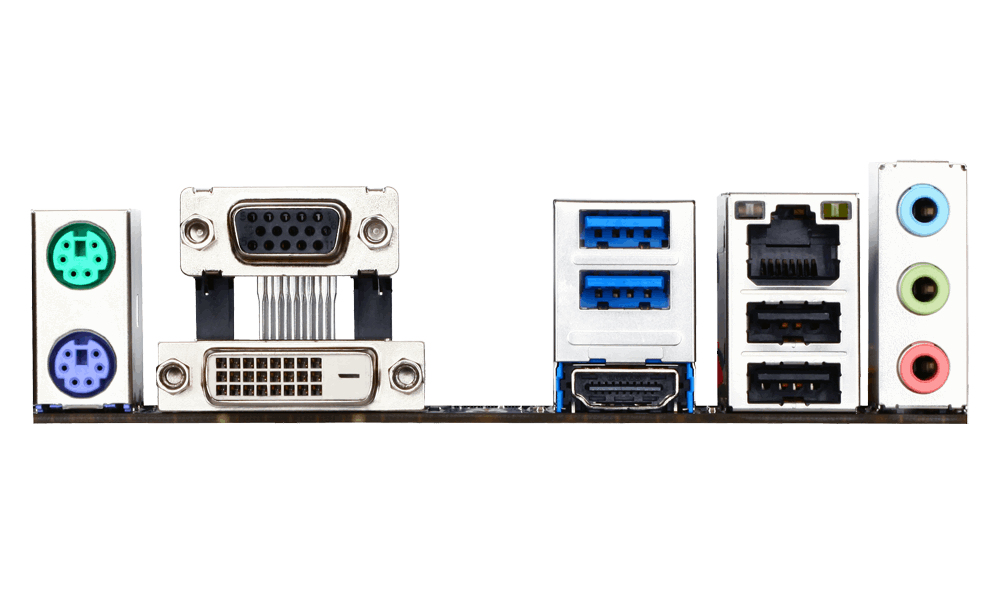

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Wi-FiNo

Features

Component forMini PC
Motherboard form factormini ITX
Motherboard chipset familyIntel
Audio chipRealtek ALC887
Audio output channels7.1 channels
PC health monitoringCPU, Fan, Temperature, Voltage
Windows operating systems supportedWindows 10, Windows 7, Windows 8.1

Expansion slots

PCI Express x16 slots1

BIOS

BIOS typeUEFI AMI
BIOS memory size64 Mbit
ACPI version5.0
Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm

Packaging content

Bundled softwareNorton® Internet Security

Other features

Parallel port via internal headerYes
Processor familyIntel® Celeron®
Processor frequency1.6 GHz
