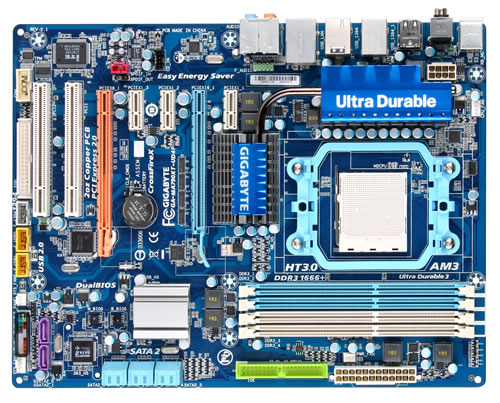

GIGABYTE GA-MA790XT-UD4P motherboard AMD 790X Socket AM3 ATX

GIGABYTE GA-MA790XT-UD4P motherboard AMD 790X Socket AM3 ATX

Model GA-MA790XT-UD4PEAN 818313007421

44 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 5, 10, JBOD
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
  • LAN controllerRealtek RTL8111DL
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 5, 10, JBOD
USB 2.0 connectors
2
USB 2.0 ports quantity
8
LAN controller
Realtek RTL8111DL
Brand
GIGABYTE
Category
Motherboard
Model
GA-MA790XT-UD4P
Part number
GA-MA790XT-UD4P
EAN / UPC
818313007421, 4719331803094
Also known as
GIGABYTE GA-MA790XT-UD4P motherboard AMD 790X Socket AM3 ATX

Specifications

44 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 5, 10, JBOD

Internal I/O

USB 2.0 connectors2
Number of SATA connectors8
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of COM connectors1
Number of IEEE1394 connectors1

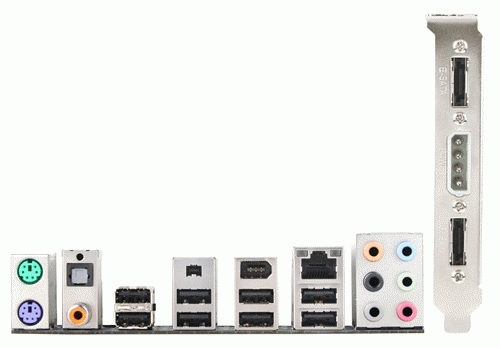

Rear panel I/O ports

USB 2.0 ports quantity8
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports2
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

LAN controllerRealtek RTL8111DL
Networking features10/100/1000 Mbit/s

Features

Motherboard form factorATX
Motherboard chipsetAMD 790X
Audio chipRealtek ALC889
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows Vista/ XP

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots2

Weight & dimensions

Width305 mm
Depth233 mm

Other features

Controller 2nd interface typeIDE
Controller interface typeSATA
Floppy disk drive connectorYes
