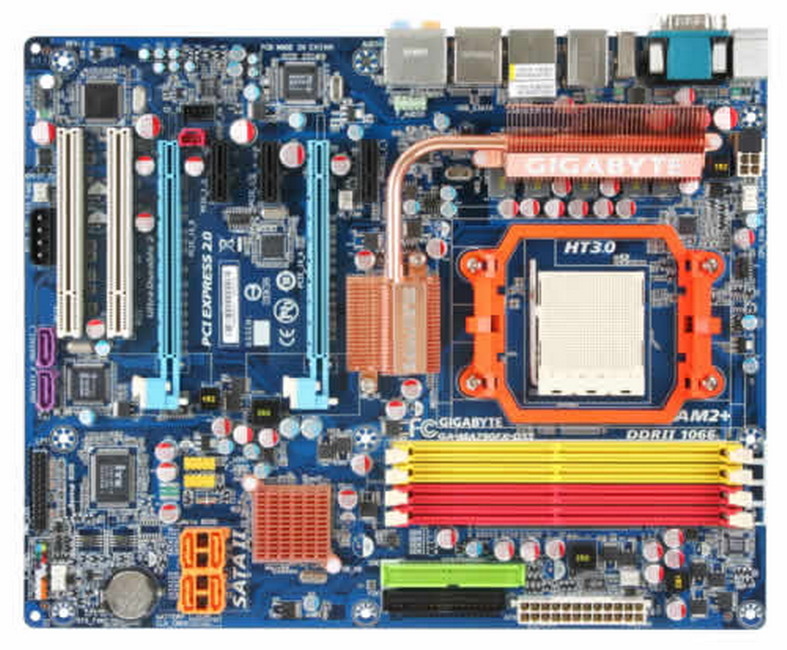

GIGABYTE GA-MA790FX-DS5 AMD790FX
Model GA-MA790FX-DS5 AMD790FXPart no. GA-MA790FX-DS5EAN 818313004536
40 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111B
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111B
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA790FX-DS5 AMD790FX
- Part number
- GA-MA790FX-DS5
- EAN / UPC
- 818313004536, 4719331840099
- Also known as
- GIGABYTE GA-MA790FX-DS5 AMD790FX Socket AM2 micro ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 2 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

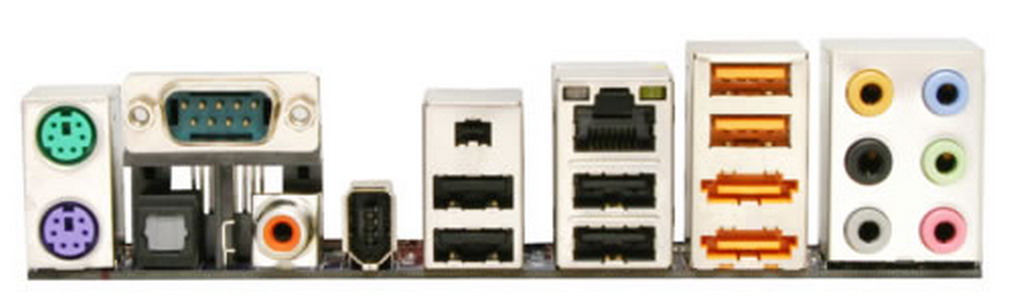

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP/2000 |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI Express x16 3 x PCI Express x1 2 x PCI. |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Yes |
| Special features | -@BIOS -Q-Flash -EasyTune -Xpress Install -Xpress Recovery2 -Virtual Dual BIOS. |
