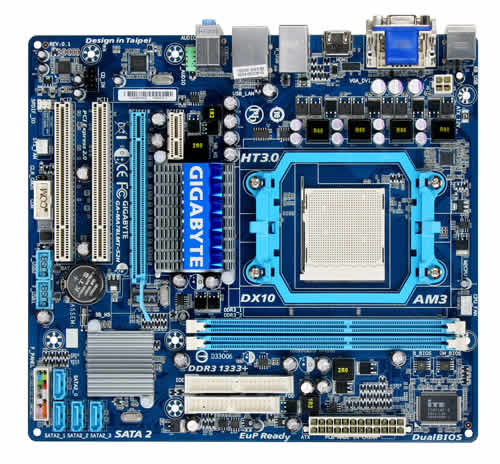

GIGABYTE GA-MA78LMT-S2H (rev. 1.0)
Model GA-MA78LMT-S2H (rev. 1.0)Part no. GA-MA78LMT-S2H
39 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- USB 2.0 connectors4
- USB 2.0 ports quantity8
- Networking features10/100/1000 Mbit
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- USB 2.0 connectors
- 4
- USB 2.0 ports quantity
- 8
- Networking features
- 10/100/1000 Mbit
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA78LMT-S2H (rev. 1.0)
- Part number
- GA-MA78LMT-S2H
- Also known as
- GIGABYTE GA-MA78LMT-S2H (rev. 1.0) Socket AM3 micro ATX
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

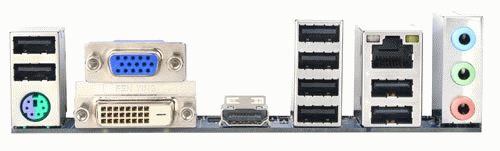

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows 7/ Vista/ XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Expansion slots | 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
| ACPI version | 1.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243 mm |
| Depth | 220 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM) |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA |
| Controller interface type | IDE |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-MA78LMT-S2H (rev. 1.0)
No reviews yet
Be the first to tell others how GIGABYTE GA-MA78LMT-S2H (rev. 1.0) works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-MA78LMT-S2H (rev. 1.0)
All motherboard comparisons- GIGABYTE GA-MA78LMT-S2H (rev. 1.0) vsGIGABYTE GA-890XA-UD3 motherboard AMD 790X Socket AM3 ATXCompare specs

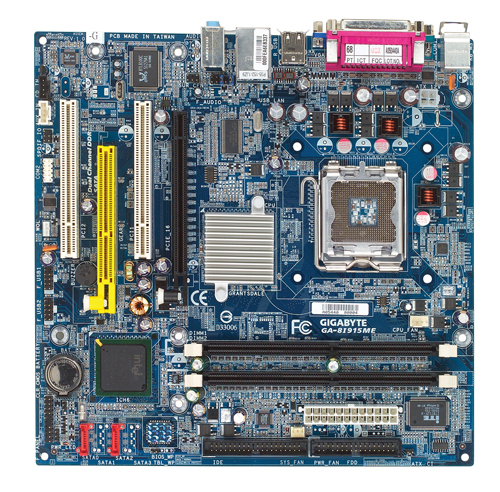

- GIGABYTE GA-MA78LMT-S2H (rev. 1.0) vsGIGABYTE GA-8I915ME-G, 915G, Socket 775Compare specs
