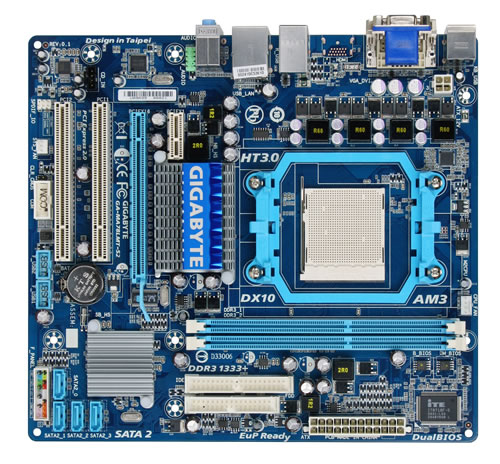

GIGABYTE GA-MA78LMT-S2 motherboard AMD

GIGABYTE GA-MA78LMT-S2 motherboard AMD

760G Socket AM3 micro ATX

Model GA-MA78LMT-S2EAN 5052217135902

50 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • On-board graphics cardYes
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
On-board graphics card
Yes
USB 2.0 connectors
2
USB 2.0 ports quantity
8
Brand
GIGABYTE
Category
Motherboard
Model
GA-MA78LMT-S2
Part numbers
GA-MA78LMT-S2, GA-MA78LMT-S2-R1, GA-MA78LMT-S2-R3.x, GA-MA78LMT-S2-R1.3
EAN / UPC
5052217135902, 4719331846183
Also known as
GIGABYTE GA-MA78LMT-S2 motherboard AMD 760G Socket AM3 micro ATX

Specifications

50 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3
Compatible processor seriesAMD Phenom II X6

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory voltage1.5 V
Supported memory clock speeds800,1066,1333 MHz

Storage controllers

Supported storage drive interfacesSATA II

Graphics

On-board graphics cardYes

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of SATA connectors4
Number of Parallel ATA connectors1
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes

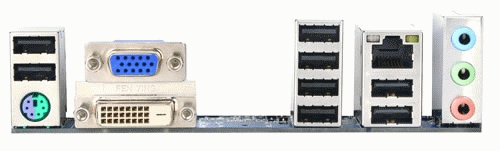

Rear panel I/O ports

USB 2.0 ports quantity8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Networking features10/100/1000 Mbps

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 760G
Audio chipRealtek ALC888B
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeAWARD
BIOS memory size16 Mbit

Weight & dimensions

Width243 mm
Depth220 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security

Other features

Floppy disk drive connectorYes
