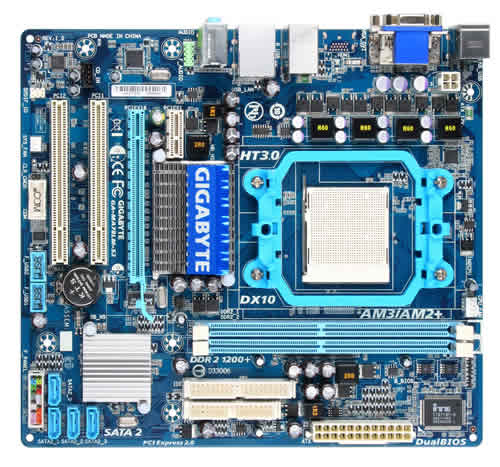

GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX
Model GA-MA78LM-S2EAN 4719331833084
43 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- Graphics cardRadeon HD 3000
- USB 2.0 ports quantity8
- Networking featuresGigabit Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- Graphics card
- Radeon HD 3000
- USB 2.0 ports quantity
- 8
- Networking features
- Gigabit Ethernet
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA78LM-S2
- Part number
- GA-MA78LM-S2
- EAN / UPC
- 4719331833084, 5052217066794
- Also known as
- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX
Specifications
43 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Graphics card | Radeon HD 3000 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

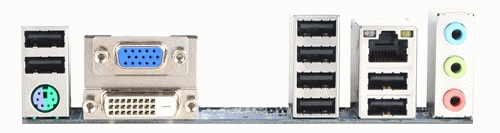

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Win 7/Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243 mm |
| Depth | 220 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Controller interface type | ITE IT8718 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX
No reviews yet
Be the first to tell others how GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX
All motherboard comparisons- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX vsGIGABYTE GA-MA78LM-S2H motherboard AMDCompare specs

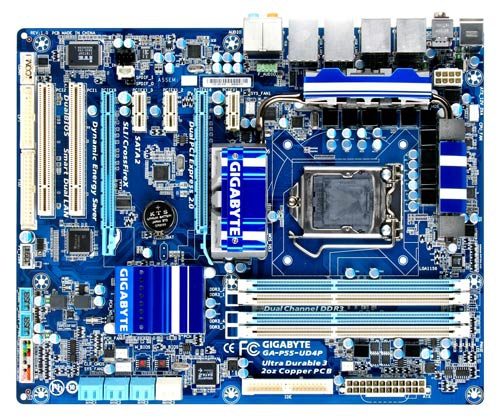

- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX vsGIGABYTE GA-P55-UD4P motherboard Intel® P55 LGA 1156 (Socket H) ATXCompare specs
- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX vsGIGABYTE GA-6BXC motherboard Socket 370 ATXCompare specs
- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX vsGIGABYTE GA-EG41MFT-US2H motherboard LGA 775 (Socket T) micro ATXCompare specs
- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX vsMSI 790X-G45 motherboard AMD 790X Socket AM3 ATXCompare specs

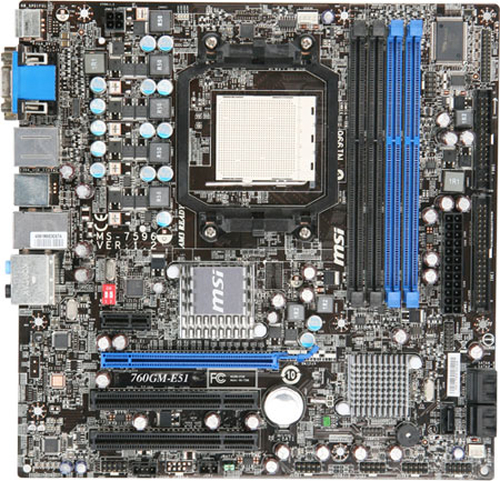

- GIGABYTE GA-MA78LM-S2 motherboard Socket AM3 micro ATX vsMSI 760GM-E51 motherboard Socket AM3 micro ATXCompare specs
