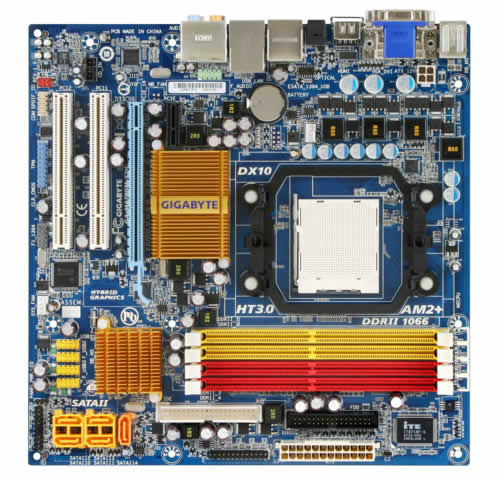

GIGABYTE GA-MA78GM-S2H motherboard AMD
780G Socket AM2 micro ATX
Model GA-MA78GM-S2HEAN 818313005205
38 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
- Expansion slots1 X PCIe x16 1 x PCIe x1 2 x PCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- Expansion slots
- 1 X PCIe x16 1 x PCIe x1 2 x PCI
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA78GM-S2H
- Part number
- GA-MA78GM-S2H
- EAN / UPC
- 818313005205, 4719331803063
- Also known as
- GIGABYTE GA-MA78GM-S2H motherboard AMD 780G Socket AM2 micro ATX
Specifications
38 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Phenom, AMD Phenom FX |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 780G |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/ XP |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 X PCIe x16 1 x PCIe x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 64 Mbit |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
