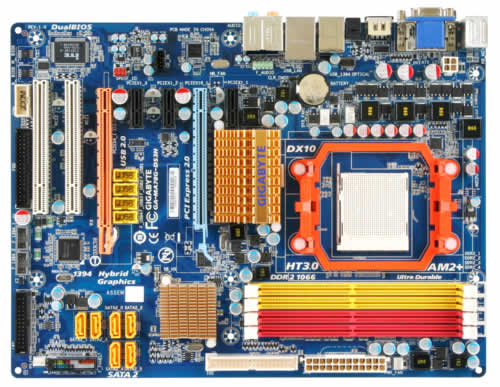

GIGABYTE GA-MA78G-DS3H motherboard AMD
780G Socket AM2 ATX
Model GA-MA78G-DS3HEAN 4719331813123
37 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 10, JBOD
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
- BIOS typeAWARD
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 10, JBOD
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- BIOS type
- AWARD
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA78G-DS3H
- Part numbers
- GA-MA78G-DS3H, MA78G-DS3H
- EAN / UPC
- 4719331813123
- Also known as
- GIGABYTE GA-MA78G-DS3H motherboard AMD 780G Socket AM2 ATX
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 10, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 780G |
| Audio chip | Realtek ALC889A |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCIE 2.0 x16 1 x PCIE 2.0 x4 3 x PCIE x1 2 x PCI |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
GIGABYTE GA-MA78G-DS3H motherboard AMD
No reviews yet
Be the first to tell others how GIGABYTE GA-MA78G-DS3H motherboard AMD works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GA-MA78G-DS3H motherboard AMD

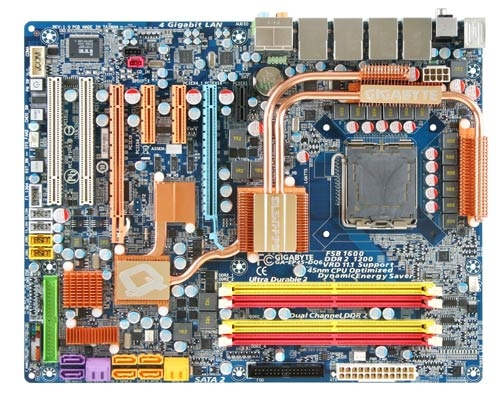

All motherboard comparisons- GIGABYTE GA-MA78G-DS3H motherboard AMD vsGIGABYTE GA-EP45-DS3 motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-MA78G-DS3H motherboard AMD vsGIGABYTE GA-EP45-DQ6 motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-MA78G-DS3H motherboard AMD vsGIGABYTE GA-X48-DS4 motherboard LGA 775 (Socket T) ATXCompare specs
- GIGABYTE GA-MA78G-DS3H motherboard AMD vsGIGABYTE GA-3CCWL-RH motherboard NVIDIA MCP55 Pro Socket F (1207) SSI CEBCompare specs

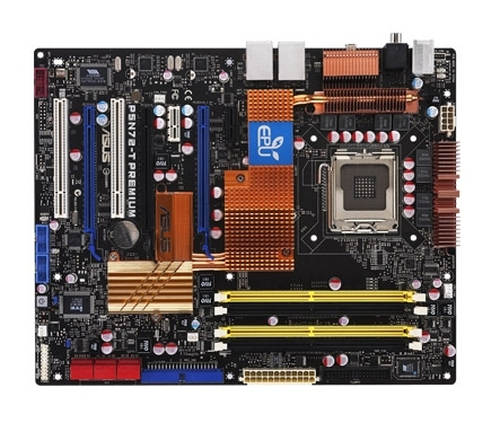

- GIGABYTE GA-MA78G-DS3H motherboard AMD vsASUS P5N72-T PremiumCompare specs
- GIGABYTE GA-MA78G-DS3H motherboard AMD vsMSI P45 Neo-FCompare specs

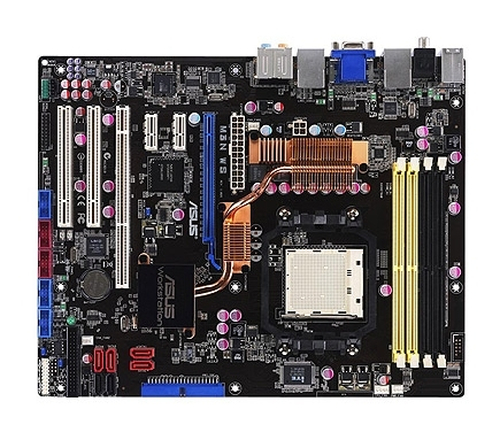

- GIGABYTE GA-MA78G-DS3H motherboard AMD vsASUS M3N WSCompare specs
