GIGABYTE GA-MA785G-UD3H - AMD 785G + SB710

GIGABYTE GA-MA785G-UD3H - AMD 785G + SB710

Model GA-MA785G-UD3H - AMD 785G + SB710Part no. GA-MA785G-UD3HEAN 818313008305

46 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1
  • USB 2.0 connectors3
  • USB 2.0 ports quantity6
  • LAN controllerRealtek RTL8111C
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1
USB 2.0 connectors
3
USB 2.0 ports quantity
6
LAN controller
Realtek RTL8111C
Brand
GIGABYTE
Category
Motherboard
Model
GA-MA785G-UD3H - AMD 785G + SB710
Part number
GA-MA785G-UD3H
EAN / UPC
818313008305, 4719331825126
Also known as
GIGABYTE GA-MA785G-UD3H - AMD 785G + SB710 Socket AM3 ATX

Specifications

46 specifications in 10 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
Memory voltage1.8 V
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1

Internal I/O

USB 2.0 connectors3
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of IEEE1394 connectors2

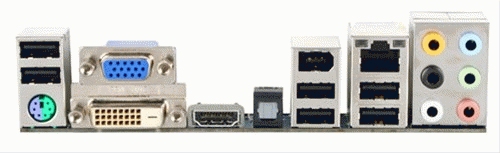

Rear panel I/O ports

USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs6
Microphone inYes
S/PDIF out portYes
Digital audio optical out1

Network

LAN controllerRealtek RTL8111C
Networking features10/100/1000 Mbit

Features

Motherboard form factorATX
Motherboard chipsetAMD 785G
Audio chipRealtek ALC889A
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows Vista/XP/ME/9X

Expansion slots

PCI Express x1 slots3
PCI Express x16 slots2
PCI slots2

Packaging content

Bundled softwareNorton Internet Security

Other features

Controller interface typeiTE IT8718
Dimensions (WxDxH)305 x 229 x 0 mm
Floppy disk drive connectorYes
Special features@BIOS Q-Flash Virtual Dual BIOS Download Center Xpress Install Xpress Recovery2 EasyTune (Note 8) Easy Energy Saver Time Repair Q-Share
