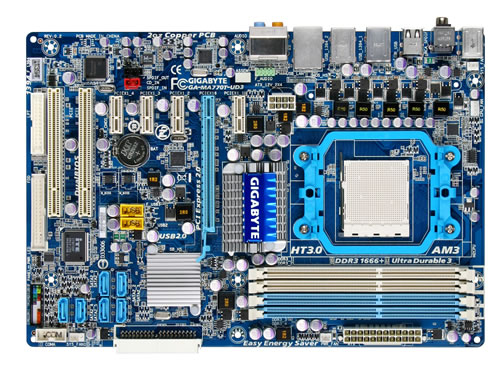

GIGABYTE GA-MA770T-UD3 AMD 770 Socket AM3 ATX

GIGABYTE GA-MA770T-UD3 AMD 770 Socket AM3 ATX

Model GA-MA770T-UD3Part no. GA-770T-UD3EAN 4719331843274

53 specifications
  • Processor manufacturerAMD
  • Number of memory slots4
  • RAID levels0, 1, 0+1
  • USB 2.0 connectors2
  • USB 2.0 ports quantity8
  • LAN controllerRealtek RTL8111C
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
4
RAID levels
0, 1, 0+1
USB 2.0 connectors
2
USB 2.0 ports quantity
8
LAN controller
Realtek RTL8111C
Brand
GIGABYTE
Category
Motherboard
Model
GA-MA770T-UD3
Part numbers
GA-770T-UD3, GA-MA770T-UD3-R3.1, GA-MA770T-UD3-R1.5, GA-MA770T-UD3-R1.4, GA-MA770T-UD3-R1.3, GA-MA770T-UD3-R1.1 +1 more
EAN / UPC
4719331843274
Also known as
GIGABYTE GA-MA770T-UD3 AMD 770 Socket AM3 ATX

Specifications

53 specifications in 12 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM3

Memory

Number of memory slots4
Memory voltage1.5 V
ECC сompatibilityECC
Maximum internal memory16 GB

Storage controllers

RAID levels0, 1, 0+1

Internal I/O

USB 2.0 connectors2
Number of SATA connectors6
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Power fan connectorYes
CPU fan connectorYes
Chassis intrusion connectorYes
Number of IEEE1394 connectors1

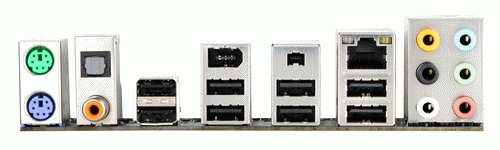

Rear panel I/O ports

USB 2.0 ports quantity8
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports2
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs6
Microphone inYes
S/PDIF out portYes

Network

LAN controllerRealtek RTL8111C
Networking features10/100/1000 Mbit

Features

Motherboard form factorATX
Motherboard chipsetAMD 770
Audio chipRealtek ALC888
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWin XP, Vista
Overclocking featuresPnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots1
PCI slots2

BIOS

BIOS memory size16 Mbit

Weight & dimensions

Width305 mm
Depth210 mm

Packaging content

Drivers includedYes
Bundled softwareNorton Internet Security

Other features

S/PDIF in connectorYes
S/PDIF in portYes
Controller 2nd interface typeATA-133/100/66/33
Controller interface typeiTE IT8720
AGP x4 slots0
AGP x8 slots0
Floppy disk drive connectorYes
Special features@BIOS Download Center Q-Flash
