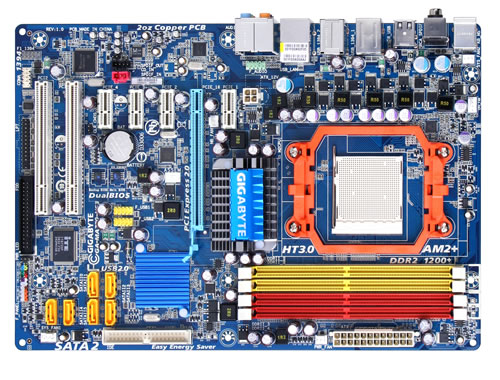

GIGABYTE GA-MA770-US3 motherboard AMD 770 Socket AM2 ATX
Model GA-MA770-US3
48 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 ports quantity8
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
- Width305 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 ports quantity
- 8
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- Width
- 305 mm
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA770-US3
- Part number
- GA-MA770-US3
- Also known as
- GIGABYTE GA-MA770-US3 motherboard AMD 770 Socket AM2 ATX
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Memory voltage | 1.8 V |
| ECC сompatibility | ECC |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista/XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 1 |
| Expansion slots | 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | Norton Internet Security (OEM) |
Other features
| Specification | Value |
|---|---|
| S/PDIF in connector | Yes |
| Floppy disk drive connector | Yes |
