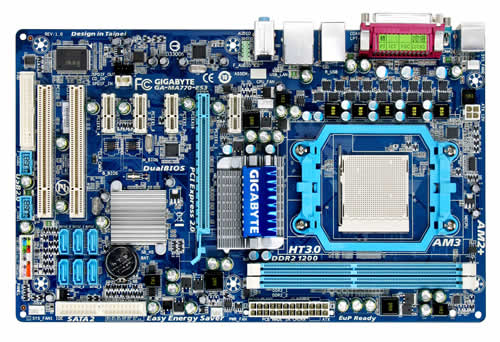

GIGABYTE GA-MA770-ES3 motherboard AMD 770 ATX

GIGABYTE GA-MA770-ES3 motherboard AMD 770 ATX

Model GA-MA770-ES3EAN 4719331806101

47 specifications
  • Processor manufacturerAMD
  • Number of memory slots2
  • RAID levels0, 1, 0+1
  • USB 2.0 ports quantity8
  • Networking featuresGigabit Ethernet
  • Motherboard form factorATX
See all specifications

Overview

Processor manufacturer
AMD
Number of memory slots
2
RAID levels
0, 1, 0+1
USB 2.0 ports quantity
8
Networking features
Gigabit Ethernet
Motherboard form factor
ATX
Brand
GIGABYTE
Category
Motherboard
Model
GA-MA770-ES3
Part number
GA-MA770-ES3
EAN / UPC
4719331806101, 5052179769092
Also known as
GIGABYTE GA-MA770-ES3 motherboard AMD 770 ATX

Specifications

47 specifications in 12 groups

Processor

Processor manufacturerAMD

Memory

Number of memory slots2
Memory voltage1.8 V
ECC сompatibilityECC
Maximum internal memory8 GB

Storage controllers

RAID levels0, 1, 0+1

Internal I/O

USB 2.0 connectors2
Number of SATA connectors6
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
CD/AUX audio inYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
Power fan connectorYes
CPU fan connectorYes

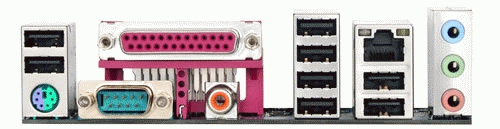

Rear panel I/O ports

USB 2.0 ports quantity8
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
HDMI ports quantity0
Headphone outputs3
Microphone inYes
S/PDIF out portYes
Parallel ports quantity1
Serial ports quantity1

Network

Networking featuresGigabit Ethernet

Features

Motherboard form factorATX
Motherboard chipsetAMD 770
Audio chipRealtek ALC888
Audio output channels7.1 channels
Power source typeATX
Compatible operating systemsWindows Vista/XP/7

Expansion slots

PCI Express x1 slots4
PCI Express x16 slots1
PCI slots2

BIOS

BIOS typeAWARD
BIOS memory size16 Mbit
ACPI version1.0

Weight & dimensions

Width305 mm
Depth190 mm

Packaging content

Drivers includedYes

Other features

S/PDIF in connectorYes
S/PDIF in portYes
Controller interface typeTE IT8720
Floppy disk drive connectorYes
