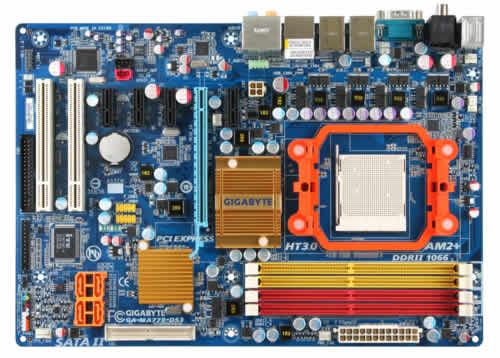

GIGABYTE GA-MA770-DS3 AM2 AMD770 ATX
Model GA-MA770-DS3 AM2 AMD770 ATXPart no. GA-MA770-DS3EAN 818313004857
39 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA770-DS3 AM2 AMD770 ATX
- Part number
- GA-MA770-DS3
- EAN / UPC
- 818313004857, 4719331845131
- Also known as
- GIGABYTE GA-MA770-DS3 AM2 AMD770 ATX Socket AM2
Specifications
39 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 4 |
| PCI Express x16 slots | 1 |
Other features
| Specification | Value |
|---|---|
| Controller interface type | PCI-E 2.0 |
| Dimensions (WxDxH) | 305 x 210 |
| Floppy disk drive connector | Yes |
