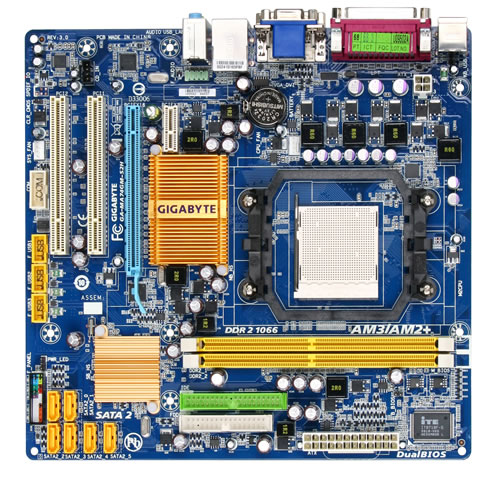

GIGABYTE GA-MA74GM-S2H rev. 3.0
Model GA-MA74GM-S2H rev. 3.0Part no. GA-MA74GM-S2H R3.0
44 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- On-board graphics cardYes
- USB 2.0 connectors3
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- On-board graphics card
- Yes
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-MA74GM-S2H rev. 3.0
- Part number
- GA-MA74GM-S2H R3.0
- Also known as
- GIGABYTE GA-MA74GM-S2H rev. 3.0 AMD 740G Socket AM3 micro ATX
Specifications
44 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |

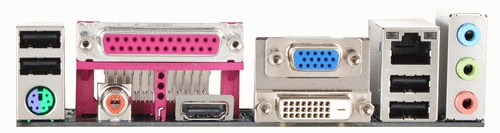

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 740G |
| Audio chip | Realtek ALC888B |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Win XP, Vista |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AWARD |
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 234 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Bundled software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
