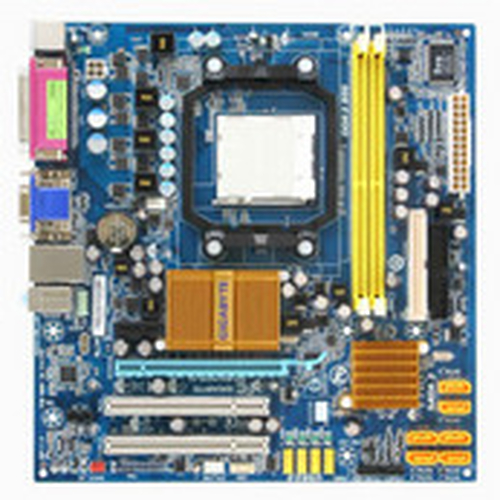

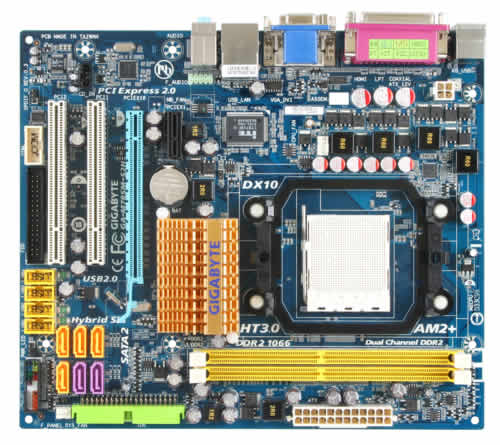

GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX
Model GA-M78SM-S2HEAN 4719331815226
40 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 connectors12
- USB 2.0 ports quantity4
- Networking features10/100/1000 Mbit
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 connectors
- 12
- USB 2.0 ports quantity
- 4
- Networking features
- 10/100/1000 Mbit
- Motherboard form factor
- micro ATX
- Brand
- GIGABYTE
- Category
- Motherboard
- Model
- GA-M78SM-S2H
- Part number
- GA-M78SM-S2H
- EAN / UPC
- 4719331815226
- Also known as
- GIGABYTE GA-M78SM-S2H motherboard Socket AM2 micro ATX
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 12 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |

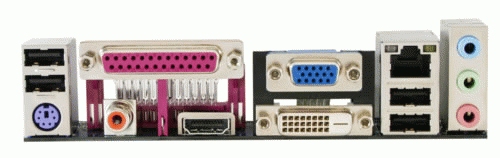

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbit |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Microsoft Windows Vista, XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Expansion slots | 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 210 mm |
Packaging content
| Specification | Value |
|---|---|
| Trial software | Norton Internet Security |
Other features
| Specification | Value |
|---|---|
| S/PDIF in port | No |
| Floppy disk drive connector | Yes |
